Hantek Hantek1025G User Manual

Hantek1025G
USER’S MANUAL 2
Introduction
Hantek 1025G Arbitrary Waveform Generator has 1 channel of arbitrary waveform output, 12
Bits output, 1 channel of synchronized signal outputs, 1 channels of Counter/Frequency
Measurement inputs, 4 Bits input and external trigger input. User can edit the waveform
arbitrarily by the mouse or choose the regular waveforms such as Sine, Square, Tri-angle,
Saw-tooth, TTL, White Noise, Gauss Noise, Trapeze, Exponent, AM and FM. The
parameters, such as amplitude, frequency and offset, are also settable. The data format of
Hantek 1025G is completely compatible with that of Tektronix; it can directly read the
waveform data files produced by the Tektronix oscilloscope or Tektronix waveform editor
software and redisplay the waveform. Hantek 1025G adopts the DDS technology so that it
has the advantages of high frequency accuracy, high waveform resolution, high reliability,
and wide software support. It can widely use in the various kinds of electronics labs and it
offers complete interface for second time development to be pointlessly inserted into other
auto-measuring systems.

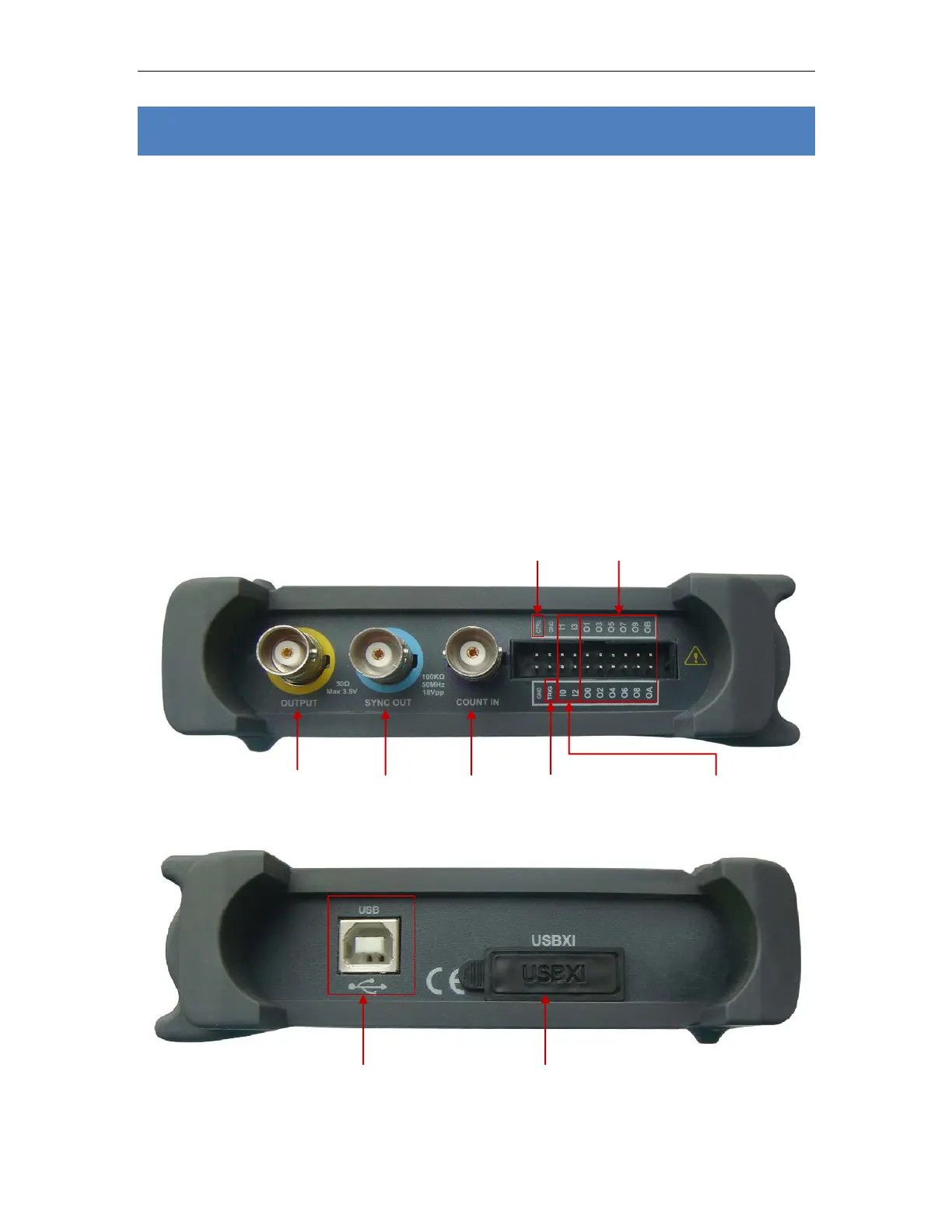

OUTPUT
SYNC
OUTPUT
COUNT IN
Digital IN Pins
Control Pin
Digital Out Pins
External Trigger
USB Port
USBXI Port

Hantek Hantek1025G Specifications

General

Brand	Hantek
Model	Hantek1025G
Category	Portable Generator
Language	English
