Measuring connection
This multimeter provides a variety of measuring functions. After selecting the required
measuring function, connect the measured signal (device) to the multimeter as shown
in the following figure. In the process of measurement, do not switch the measuring
function at will, otherwise it may damage the multimeter. For example, do not use the
measuring lead to measure AC voltage when it is connected to the current terminals.

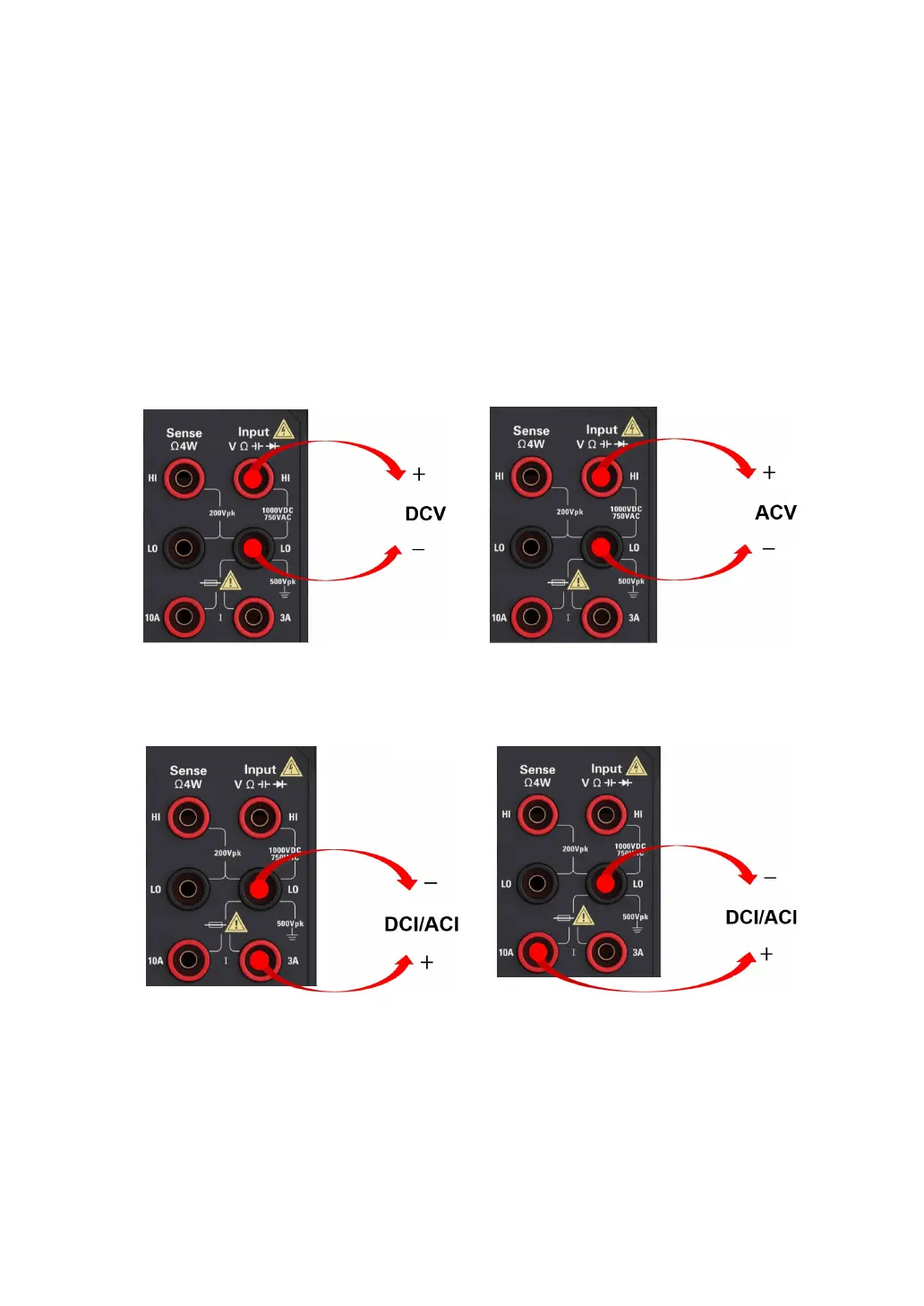

DCV measurement ACV measurement
DCI/ACI measurement
Small current
DCI/ACI measurement(Large current
Note: To avoid damaging the multimeter, be sure to follow the instructions below for
DC/AC current measurements.
1. When measuring the current, make sure to select the correct current input terminal
according to the expected current size before switching on the multimeter
power.
