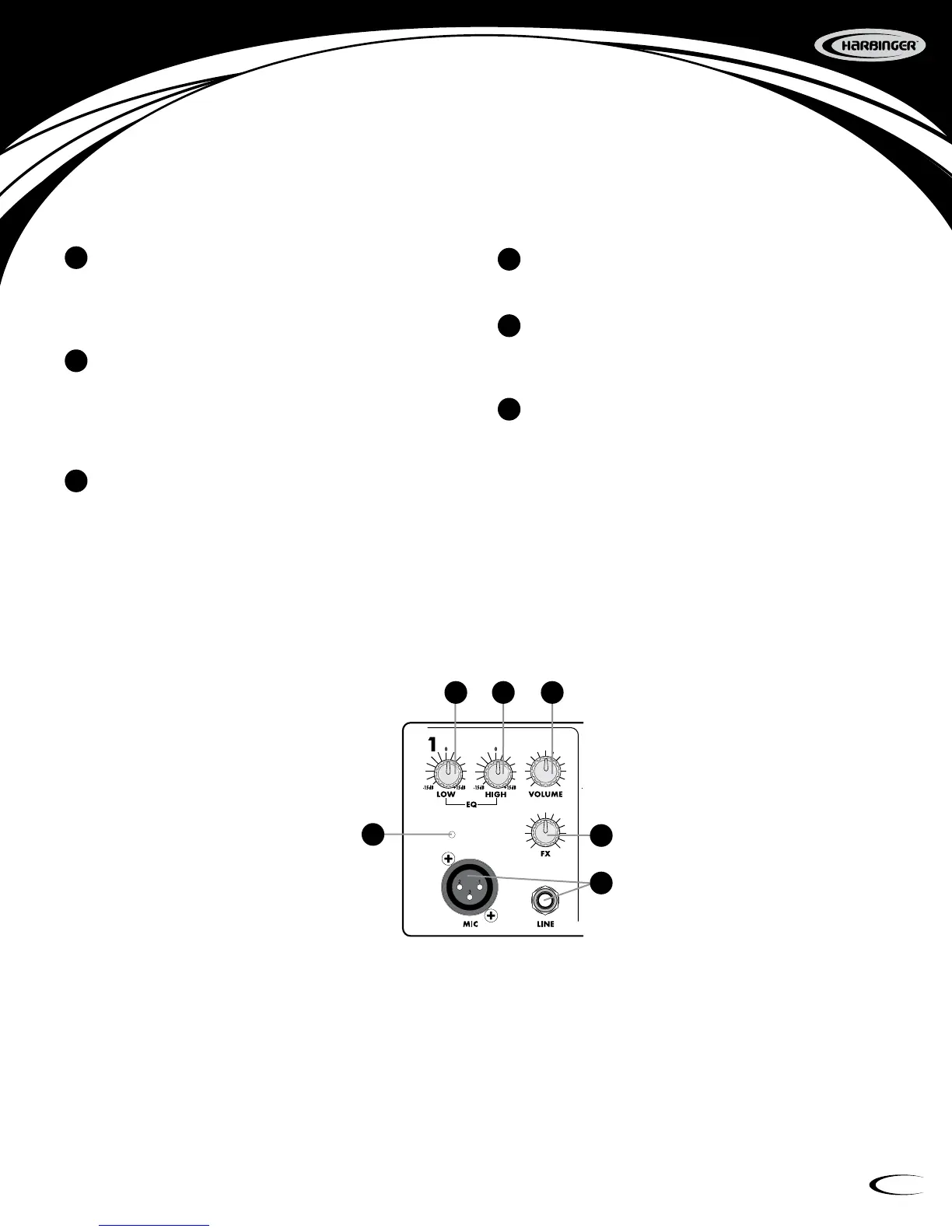

1 LOW EQ
This shelving control gives 15dB of boost or cut at 80Hz
and below. Add warmth to vocals or extra punch to
guitars, drums and synths by turning to the right. Turn to
the left to reduce stage rumble, hum or a muddy sound.
2 HIGH EQ
This shelving control gives 15dB of boost or cut at
12KHz and above. Turn to the right to boost high
frequencies, adding crispness to percussion from drum
machines, cymbals and synths. Turn to the left to cut these
frequencies, reducing sibilance or hiss.
3 VOLUME
This level control determines the proportion of the channel
signal in the mix.
4 FX SEND
This level control sets the amount of signal that will be
sent to the built-in digital delay effect.
MIC & LINE INPUT
This MIC input accepts male XLR while the LINE input
acceptsa1/4’’typephoneplug.Youcanuseonlyoneof
the two connectors at a time.
6. PEAK LED
This LED indicates that the input signal is too loud, and may
distort the sound or damage the circuitry. If the PEAK LED
consistently remains lit, reduce the output volume of the
source, or lower the channel volume.
