MLS1000 OWNER’S MANUAL
4

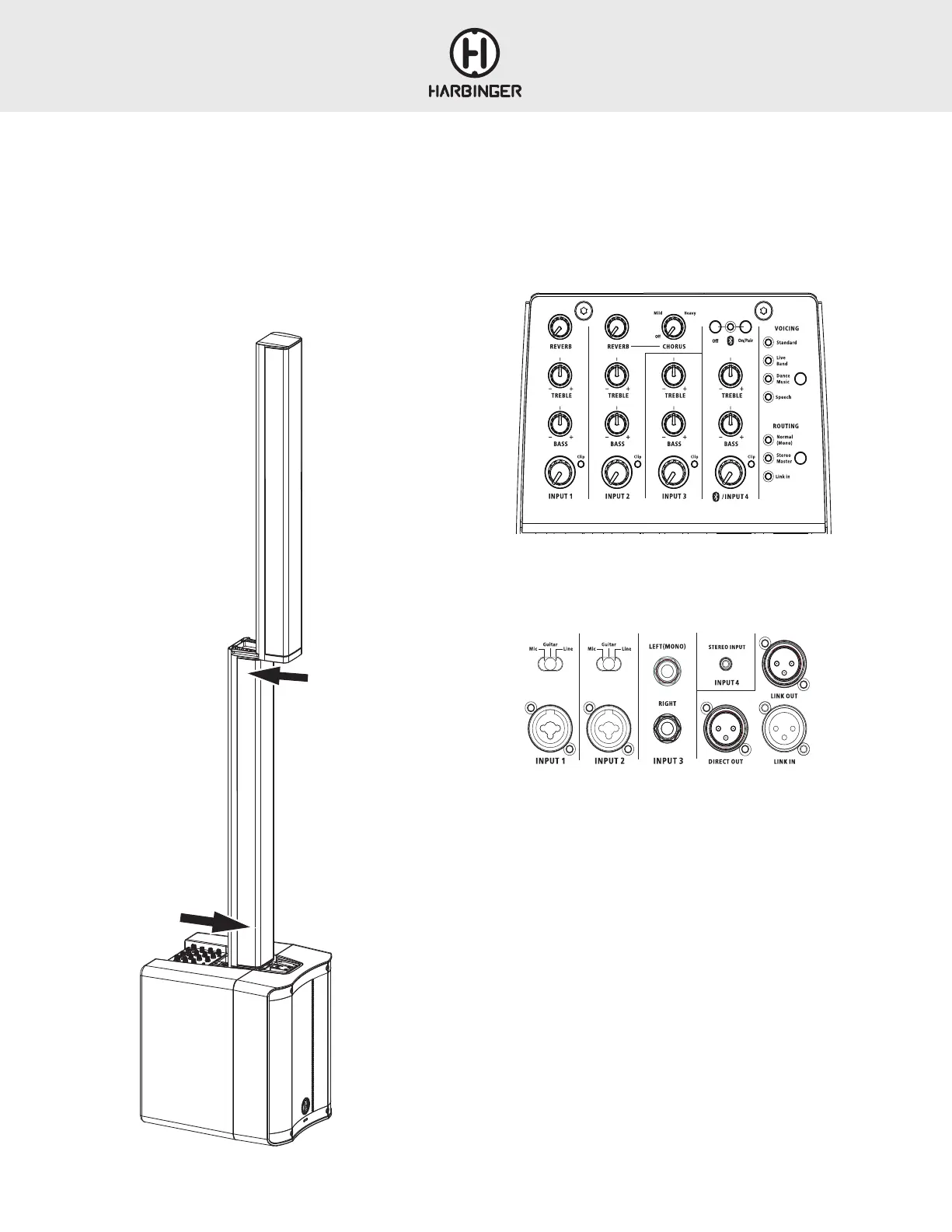

QUICK START GUIDE: SINGLE MLS1000
ASSEMBLY
• Slide columns on to base unit as shown below:
1. Slide bottom column onto base unit
2. Slide top column onto bottom column
DISASSEMBLY
• When disassembling, remove upper column first, then lower.
1. Slide top column off of bottom column
2. Slide bottom column off of base unit
CHECK CONTROLS
• Check that Mono (Normal) LED of the ROUTING function is lit.
• Check that INPUT 1 and INPUT 2 switches match sources:
Mic for microphones, Guitar for acoustic guitar or pedalboard output,
Line for mixers, keyboards and other electronics.
POWERING UP
• Power on any devices connected to input jacks.
• Turn up the output volume of all sources.
• Turn INPUT 1, 2, 3 and 4 knobs to desired levels.
BLUETOOTH
®
AUDIO INPUT
• From your Bluetooth audio source device, look for MLS1000 and select it.
• See next page for Bluetooth Troubleshooting in case of difficulty.
SET VOICING
• Press top panel VOICING button to choose the best DSP Voicing
for your use.
APPLYING REVERB AND CHORUS FX
• Turn up the REVERB knob for INPUT 1 or 2, to add virtual room ambiance
to that input source.
• Input 2 is the best input for acoustic guitars, thanks to a CHORUS effect in
addition to REVERB. Simply turn up the chorus knob to apply increasing
levels of a swirling chorus effect, with either a MILD or HEAVY character.
CONNECTIONS
• Connect sources to INPUT 1, 2, 3 and 4 jacks as desired. (All these input
jacks can be used at once, along with Bluetooth
®
audio input.)
SET UP
• Position MLS1000 in the desired location, and ensure the unit is stable.
• Make sure the Power Switch is off.
• Turn INPUT 1, 2, 3 and 4 knobs to minimum.
• Turn BASS and TREBLE knobs to center/straight up.
• Turn REVERB and CHORUS knobs to minimum/off.
