V2300 SERIES OWNER’S MANUAL
3

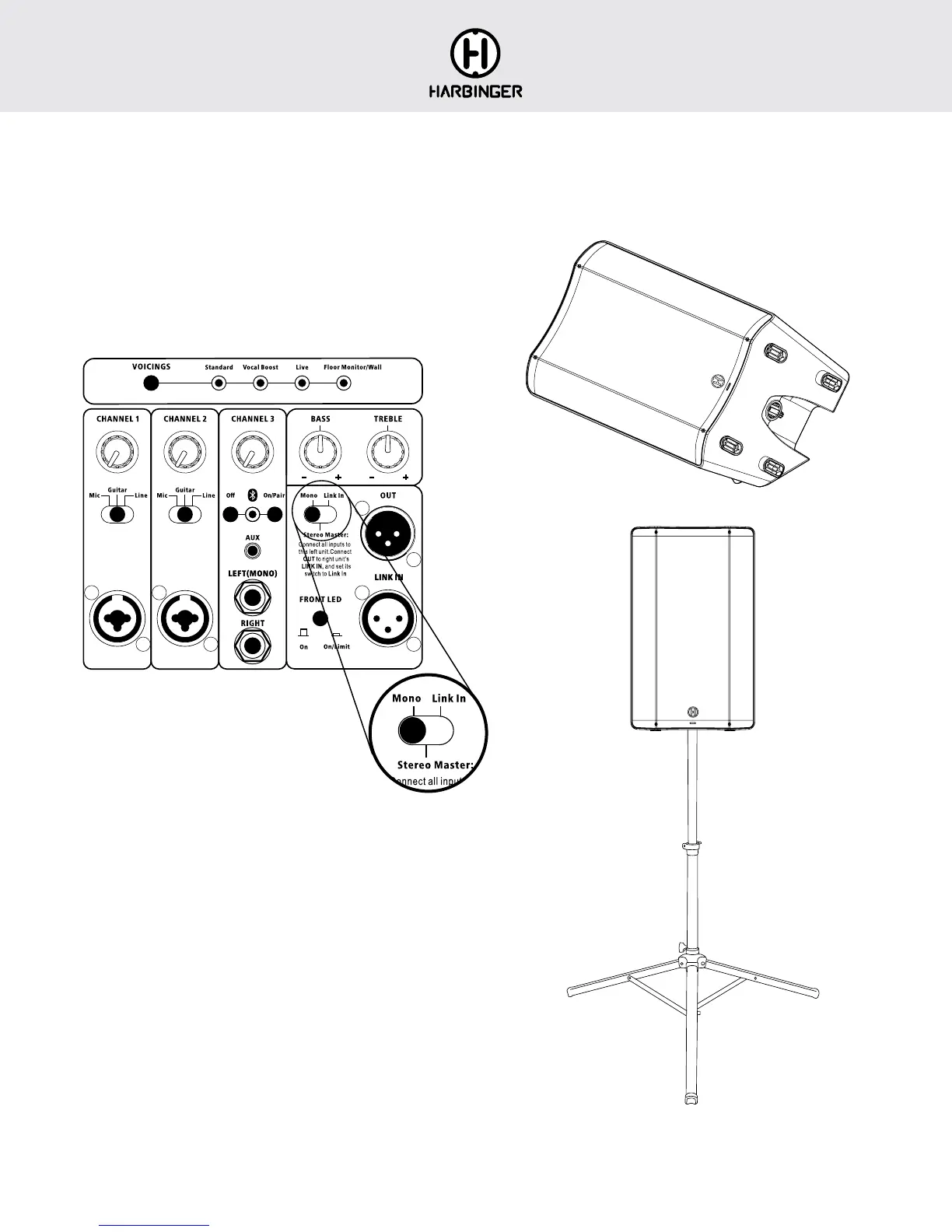

QUICK START GUIDE: SINGLE V2312/V2315
SETTING UP / HELPFUL TIPS
• Position the VARI speaker in the desired location, and ensure the speaker
is stable.
• Make sure the Power Switch is off.
• Turn Channel 1, 2, and 3 knobs to minimum.
• Turn Bass and Treble to center/straight up.
MAKING THE CONNECTIONS
• Connect sources to Channel 1, 2 and 3 input jacks as desired. (All these
input jacks can be used at once, along with Bluetooth audio input.)
CHECK SWITCHES
• Check that Mono / Stereo Master / Link In switch
is set to Mono.
• Check that Channel 1 and Channel 2 switches
match sources: Mic for microphones, Guitar for
acoustic guitar or pedalboard output, Line for mixers,
keyboards and other electronics.
POWERING UP
• Power on any devices connected to input jacks.
• Turn up the output volume of all sources.
• Turn Channel 1, 2 and 3 knobs to desired levels.
BLUETOOTH AUDIO INPUT
• From your Bluetooth audio source device, look for V2312 or V2315 and
select it.
• See next page for Bluetooth Troubleshooting in case of difficulty.
FRONT LED LIGHT
• Check that rear panel button for FRONT LED is pressed in (On/Limit
position)
• When front LED lights red, limiter is being triggered, and Channel 1, 2,
and 3 knobs may need to be turned down
FOR FLOOR MONITOR USE
• Press rear panel VOICINGS button to light Floor Monitor/Wall LED.
VARI Series speakers can be used as Main Speakers
or Monitor Speakers.
Speaker stand not included
Main
Floor Monitor
To Next Page
