10
Lowes.com/harborbreeze

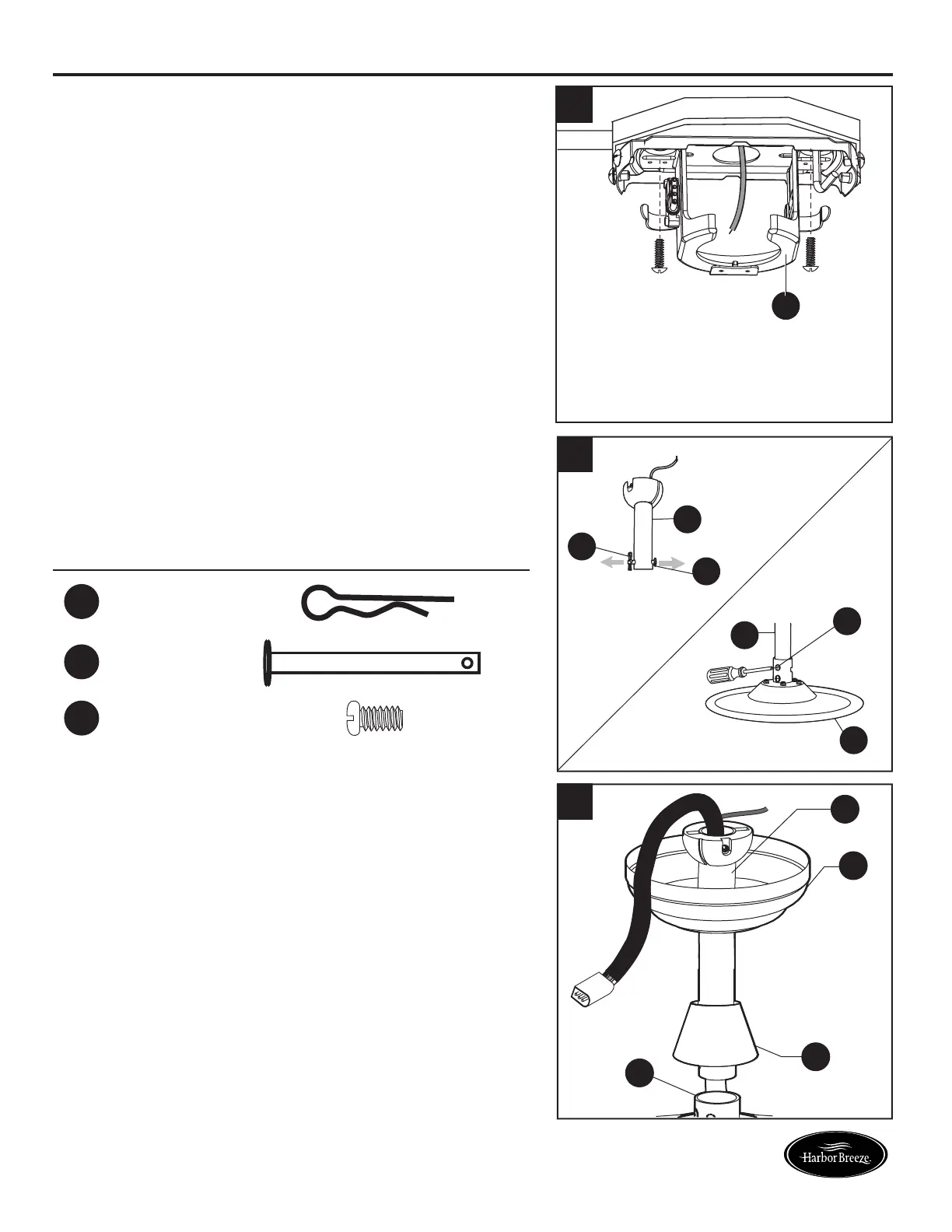

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Feed green/bare (ground) supply wire down through
the hole in the top of the mounting bracket (C). Secure
the mounting bracket (C) to the outlet box using
screws and washers provided with the outlet box.
5. Remove the downrod clip (DD) and downrod pin
(EE) from the downrod (A). Then partially loosen the
motor housing set screws (FF) in the yoke at the top
of the motor assembly (E).
Hardware Used
DD
Downrod Clip x 1
EE
Downrod Pin x 1
FF
Motor Housing
Set Screw
x 2
6. Place the downrod (A) into the canopy (B) and yoke
cover (D). Feed the wire harness from the motor
assembly (E) through the downrod (A).
C
12
A
B
D
E
4
5
6
To Next Page
