STANDARD OR ANGLE MOUNTING INSTRUCTIONS

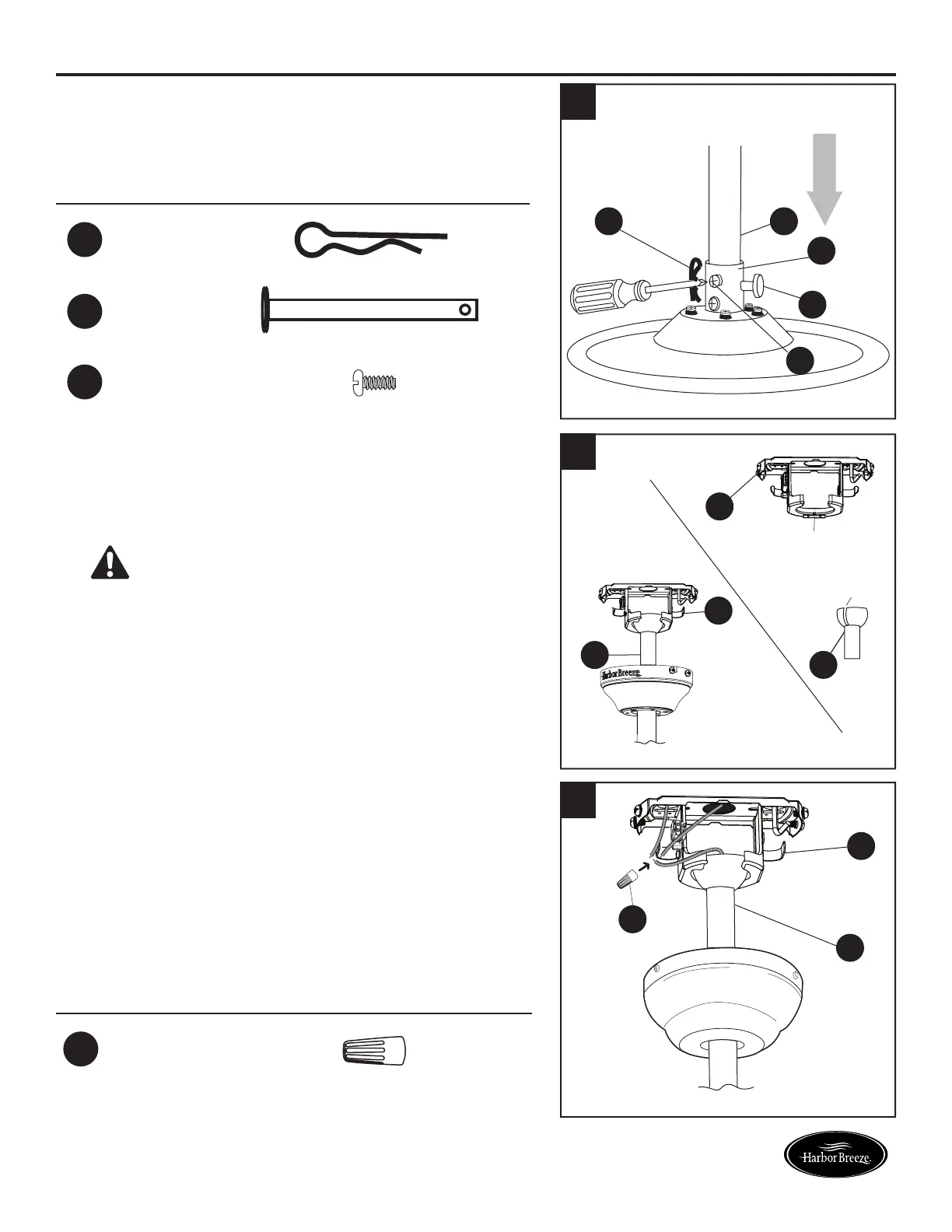

7. Slide the downrod (A) into the yoke of the motor
assembly (E), align the holes, and re-install the
downrod clip (DD) and downrod pin (EE). Then
tighten the motor housing set screws (FF).
Hardware Used
DD
Downrod Clip x 1
EE
Downrod Pin x 1
FF
Motor Housing
Set Screw
x 2
DD
FF
A
E
EE
8. Carefully lift the downrod (A) onto the mounting
bracket (C). Rotate the downrod (A) until the slot on
the downrod (A) engages the tab on the mounting
bracket (C).
DANGER: Failure to align the slot in the ball
with the tab may result in serious injury or death.
9. Connect the green wires from the downrod (A) and
the mounting bracket (C) to the bare/green (ground)
supply wire using a wire connector (BB).
Then, wrap electrical tape around the wire connector
(BB) down to the wire. Turn the spliced/taped wires
upward and gently push the wires and wire connector
(BB) into the outlet box.
Proceed to Final Installation on page 15.
Hardware Used
BB
Wire Connector x 1
7
8
C
A
AA
9
To Next Page
