STANDARD OR ANGLE MOUNTING INSTRUCTIONS
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire
is present.

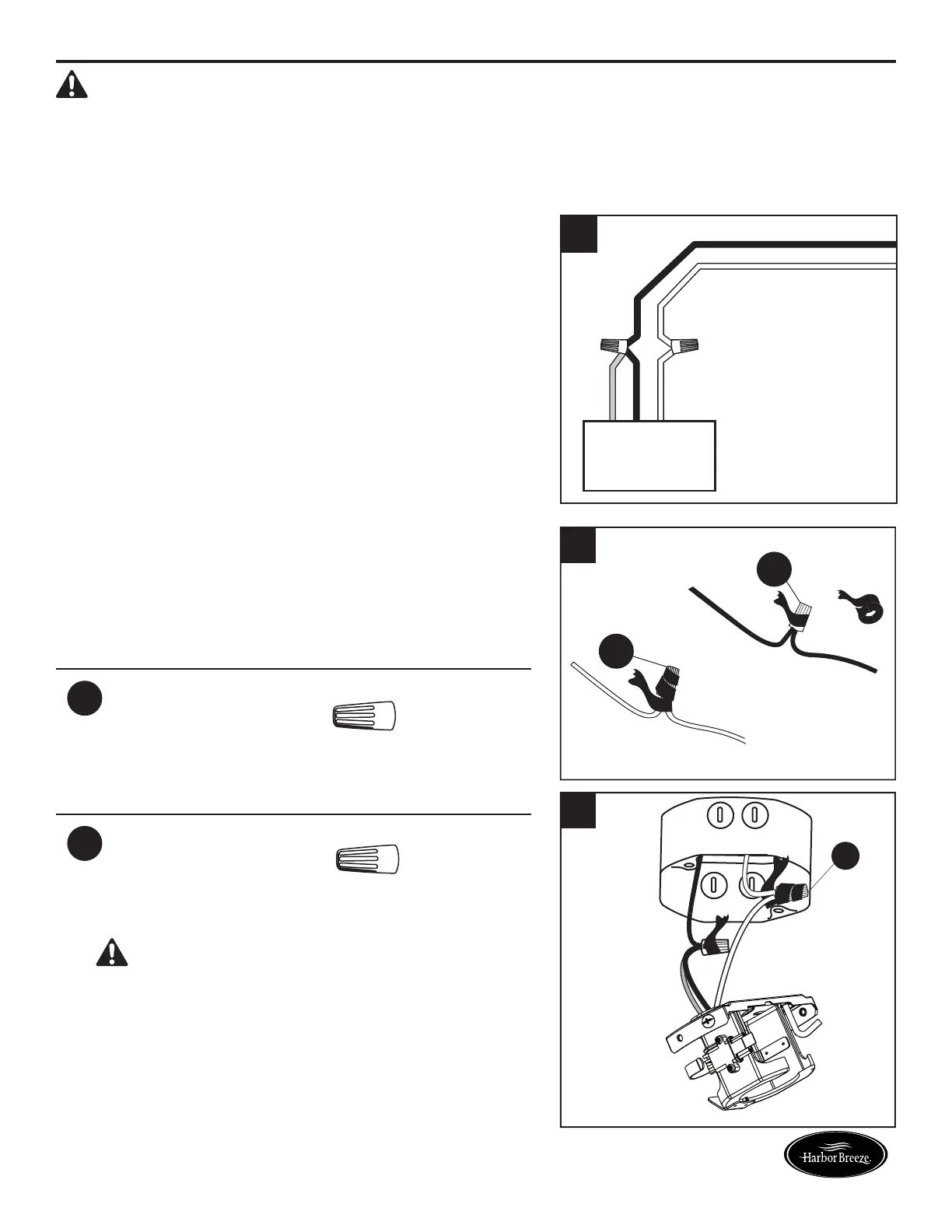

1. Connect with supply and mounting bracket (C) wires
according to the diagram and these steps:
•ConnecttheWhitewirefromthemountingbracket
(C) to the White supply wire.
•ConnecttheBlueandBlackwirefromthemounting
bracket (C) to the Black supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (BB).
Note: The Black wire is hot power for the fan. The
White wire is common. The Blue wire is
hot power for light (sold separately; wiring
instructions will differ if optional light kit is
purchased. Refer to light kit manufacturer’s
instructions). The Green wire is the ground
wire and will be connected later. If house wires
are different colors than referred to above, stop
immediately. It is recommended a professional
electrician determines the proper wiring.
Hardware Used
BB
Wire Connector x 2
2. Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
Hardware Used
BB
Wire Connector x 2
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (BB) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Black
and White wire connections on opposite sides of the
outlet box.
BB
BB
BB
A
Mounting
Bracket
Black
White
Black Blue White
