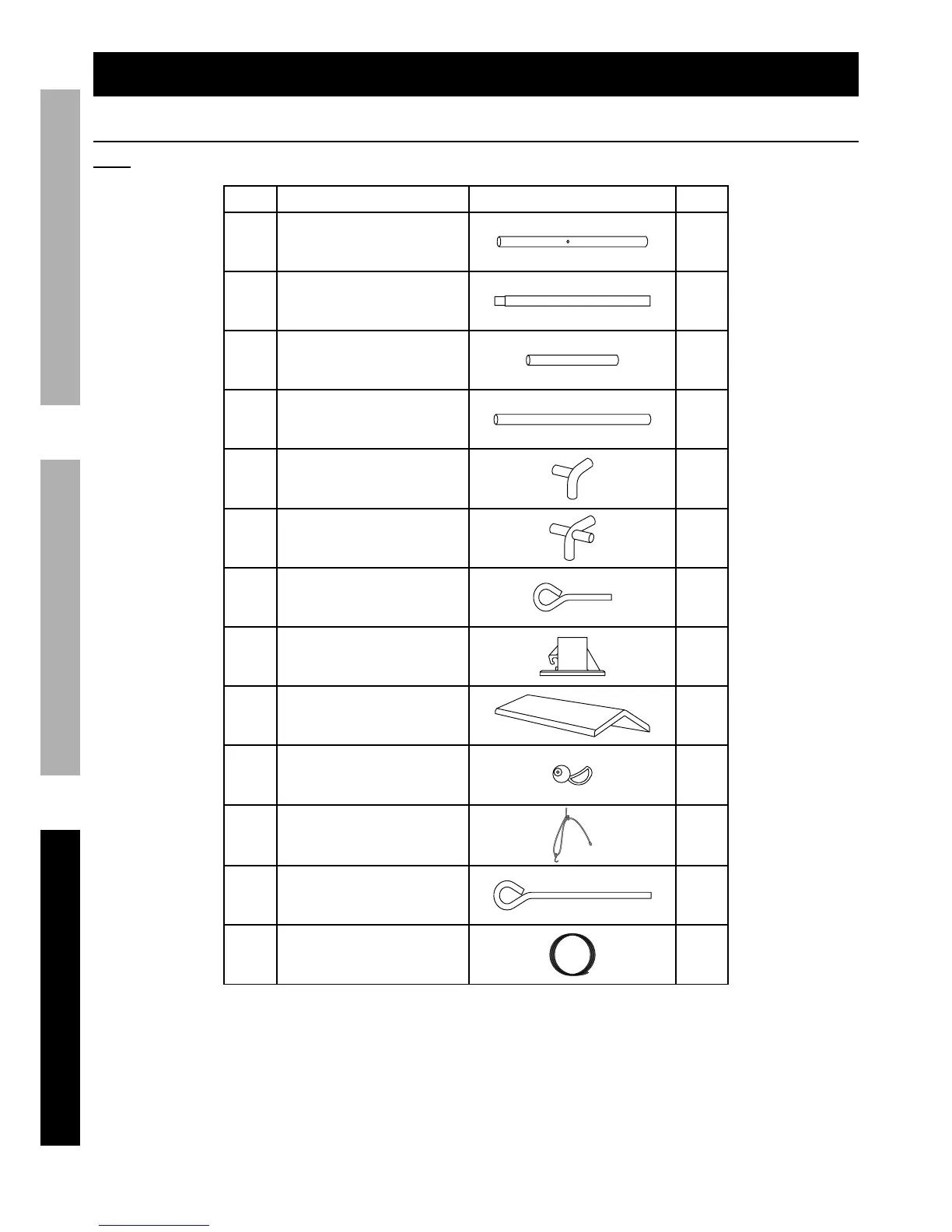

Parts List and Diagram
Parts List
Note: Individual part illustrations not to scale.
Part Description Illustration Qty
1 39″ Straight Tube 6
2 40 1/4″ Swaged Tube 24
3 24″ Rafter Tube 6
4 40 5/8″ Straight Cross Tube 6
5 3-Way Connector 6
6 4-Way Connector 3
7 Base Fastening Stake 12
8 Foot Plate 6
9 Roof Tarp 1
10 Ball Tie-down 26
11 Tarp Corner Rope and Hook 4
12 Rope Fastening Stake 4
13 Rope 4
