Roof Frame Assembly
Note: Much of this products assembly is done using slip fit construction. Make sure all parts seat completely
and securely. A rubber mallet (sold separately) can be used to gently tap parts in place to ensure a tight fit.

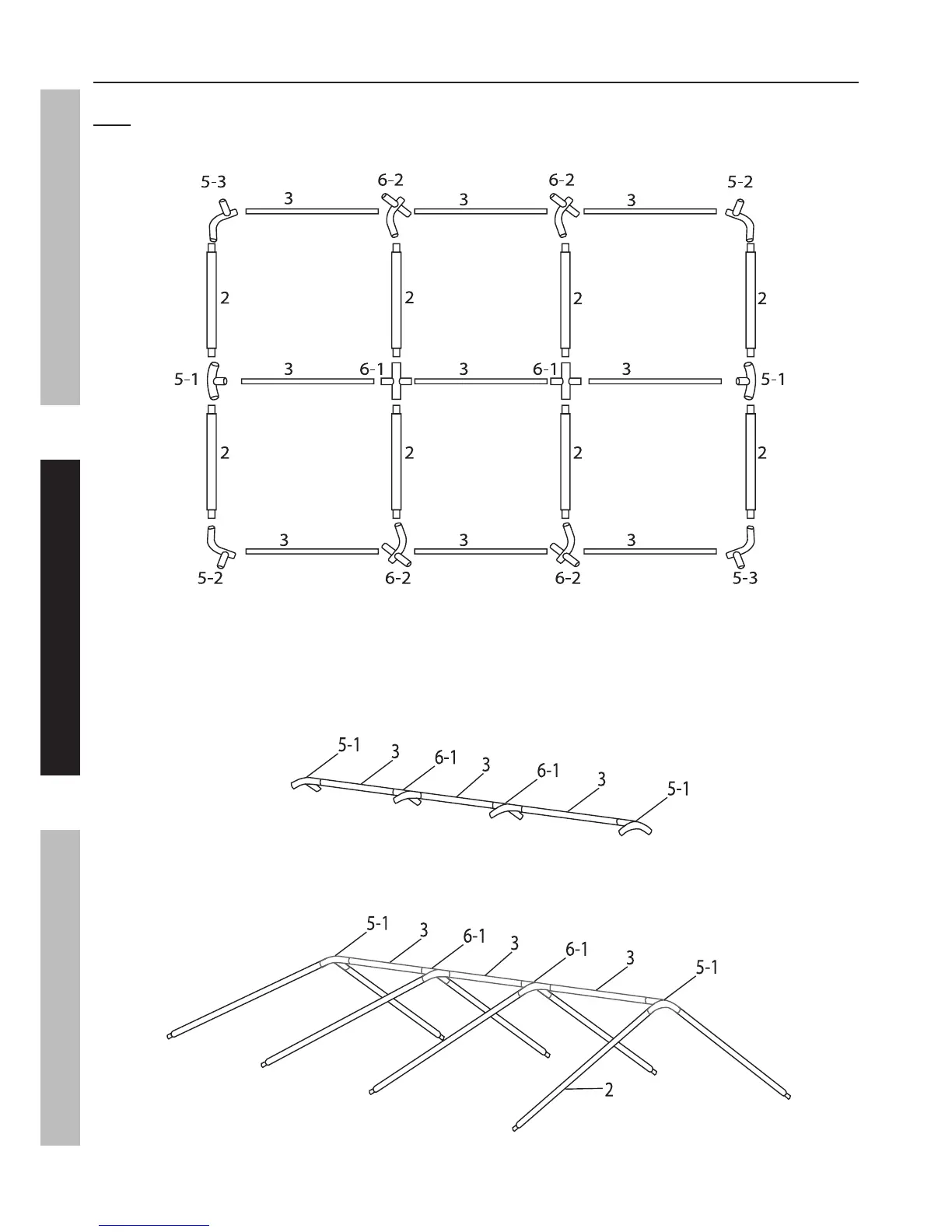

Figure B: Roof Assembly Overview
1. Assemble ridge using three Rails (3) with 4-Way Ridge Connectors (6-1) between them, and
a 3-Way Ridge Connector (5-1) on each end.
The Rails connect to the straight ends of the Connectors
and the curved, free ends of the Connectors are angled down, as shown.
Figure C: Ridge Assembly
2. Connect a Rafter (2) to each free end of every Connector (6-1, 5-1), as shown.
Figure D: Rafter Assembly
