Page 8 For technical questions, please call 1-800-444-3353. Item 69039
Stud Installation
1. Have assistants raise one side of the roof assembly.
2. Install the Center Studs (1-1) into the 4-Way Side Connectors (6-2), and the Corner Studs (1-2)
into the 3-Way Side Connector A/B (5-2, 5-3) with the Corner Legs (23) facing inward.

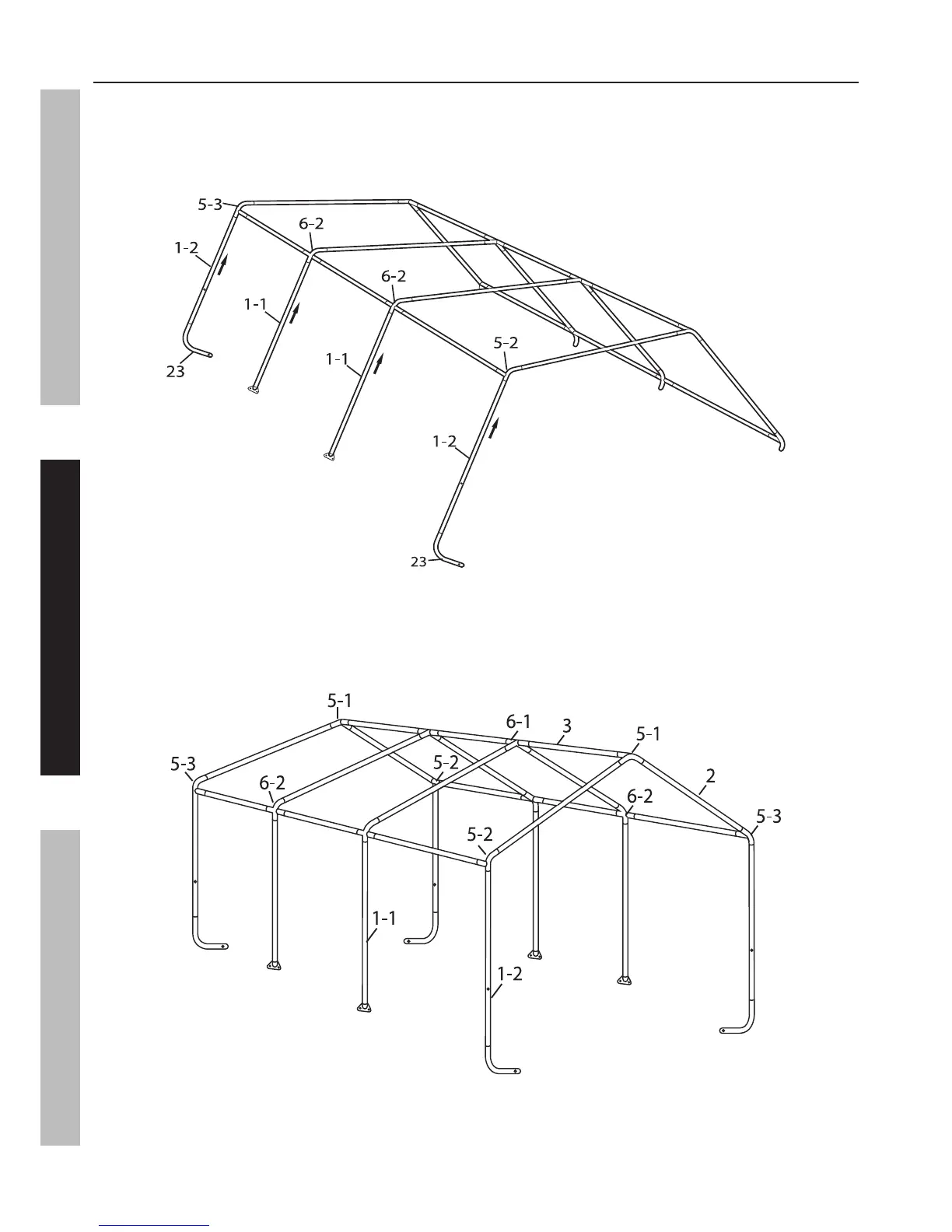

Figure H: Stud Installation
3. After all four Studs (1-1, 1-2) are in place, rest that side of the assembly on the ground, and raise the other side.
4. Install four Studs (1-1, 1-2) on the other side of the roof, as explained in step #2, above.
Figure I: Studs Installed on Both Sides
5. Make sure all parts assembled up to this point are firmly joined together.
Tap parts together gently with a rubber mallet (sold separately) if needed.
