SKU 93662 For technical questions, please call 1-800-444-3353. Page 14

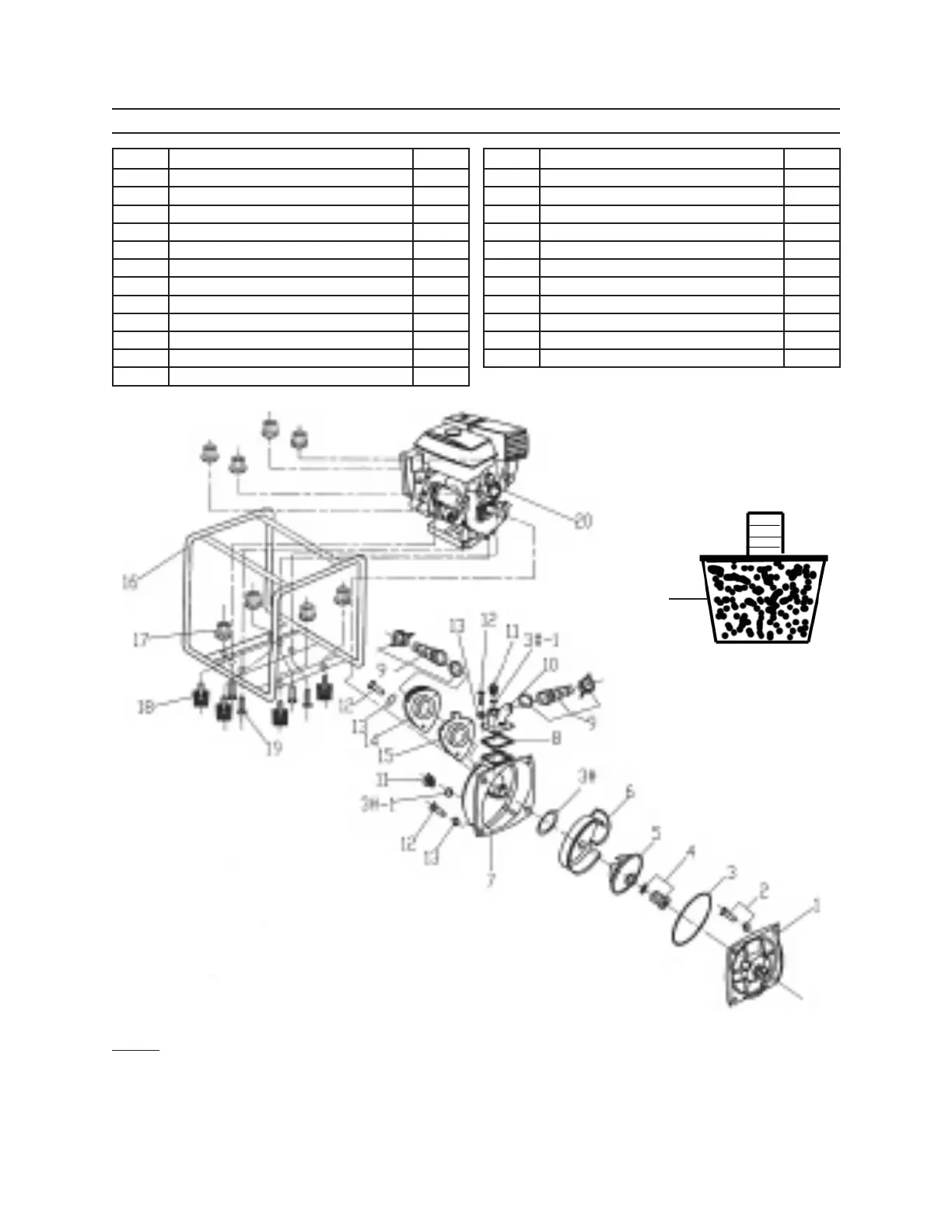

PARTS LIST & ASSEMBLY DIAGRAM - WATER PUMP

Part Description Qty.

1 Cover 1

2 Hex Bolt 1

3 O-Ring 4

4 Mechanical Seal 1

5 Impeller 1

6 Casing 1

7 Pump Housing 1

8 Discharge Packing 1

9 Intake/Discharge Union Set 1 ea.

10 Discharge Flange 2

11 Priming Cap 1

12 Bolt 9

Part Description Qty.

13 Washer 9

14 Intake Flange 1

15 Check Valve 1

3# O-Ring 1

3#-1 O-Ring 2

16 Tube Frame 1

17 Screw 8

18 Oscillation Absorber 4

19 Bolt 4

20 Gasoline Engine 1

21 Intake Filter 1

Note: Some parts are listed and shown for illustration purposes only, and are not available

individually as replacement parts.
