8. Inflate each Wheel (50) tire to 30 PSI. Replace valve cap.
9. Find two Brackets (56) and Foot (54), and two Bolts (55), four Bolts (52), six Nuts (57),
six Washers (63), and six Lock Washers (64).

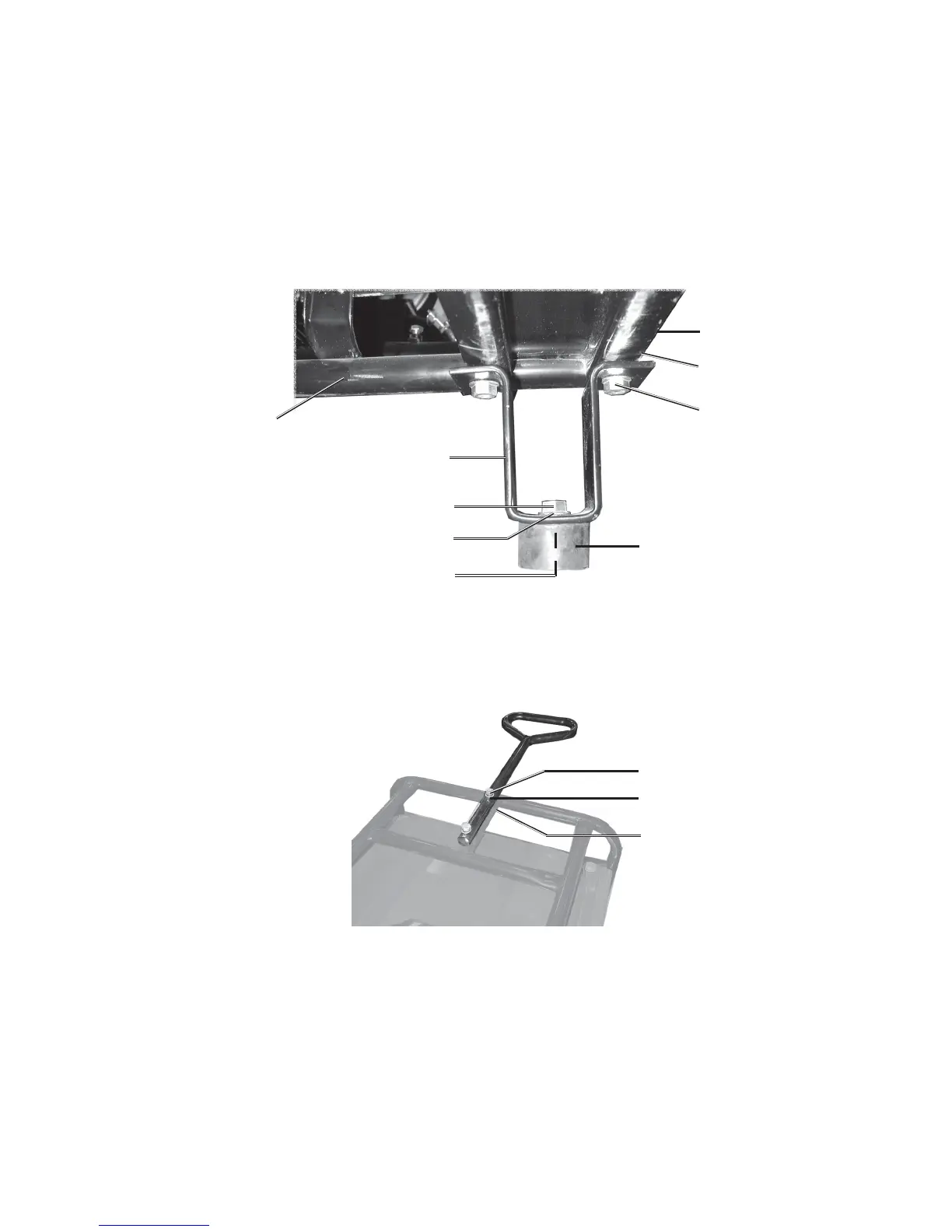

10. Mount each Foot (54) to the Bracket (56) using Bolt (55), Lock Washer (64), and Nut
(57). Securely tighten. (See photo below.)
11. Mount each Bracket to the Frame Cross Bracket using two Bolts (52), Nuts (57),
Washers (63), and Lock Washers (64). Securely tighten.
12. Find Handle (61), two Bolts (62), Washers (63), Lock Washers (64), and Nuts (57).
13. Mount the Handle (61) to the top of the Generator Frame by placing the Bolt (62), with
Lock Washer (64), then Washer (63) from the top. Secure from the bottom with
Washer (63) and Nut (57). Securely tighten.
14. With the help of another person, lift the Generator (by its frame) onto its Wheels and
Feet.
Operation
To move the Generator, lift the front end by the Handle (61) and pull it forward, then set the
Generator down on the two front feet.
Warning: The Handle must be used for hand pulling only. Do not attach to a vehicle. Not
for highway use.
Frame Cross Bracket
Bracket (56)
Foot (54)
Lock Washer (64)
Nut (57)
Bolt (55)
not shown
Bolt (52)
Nut (57)
not shown
Lock Washer (64) and
Washer (63)
not shown
Bolt (62)
Lock Washer (64) and
Washer (63)
Nut (57)
not shown
