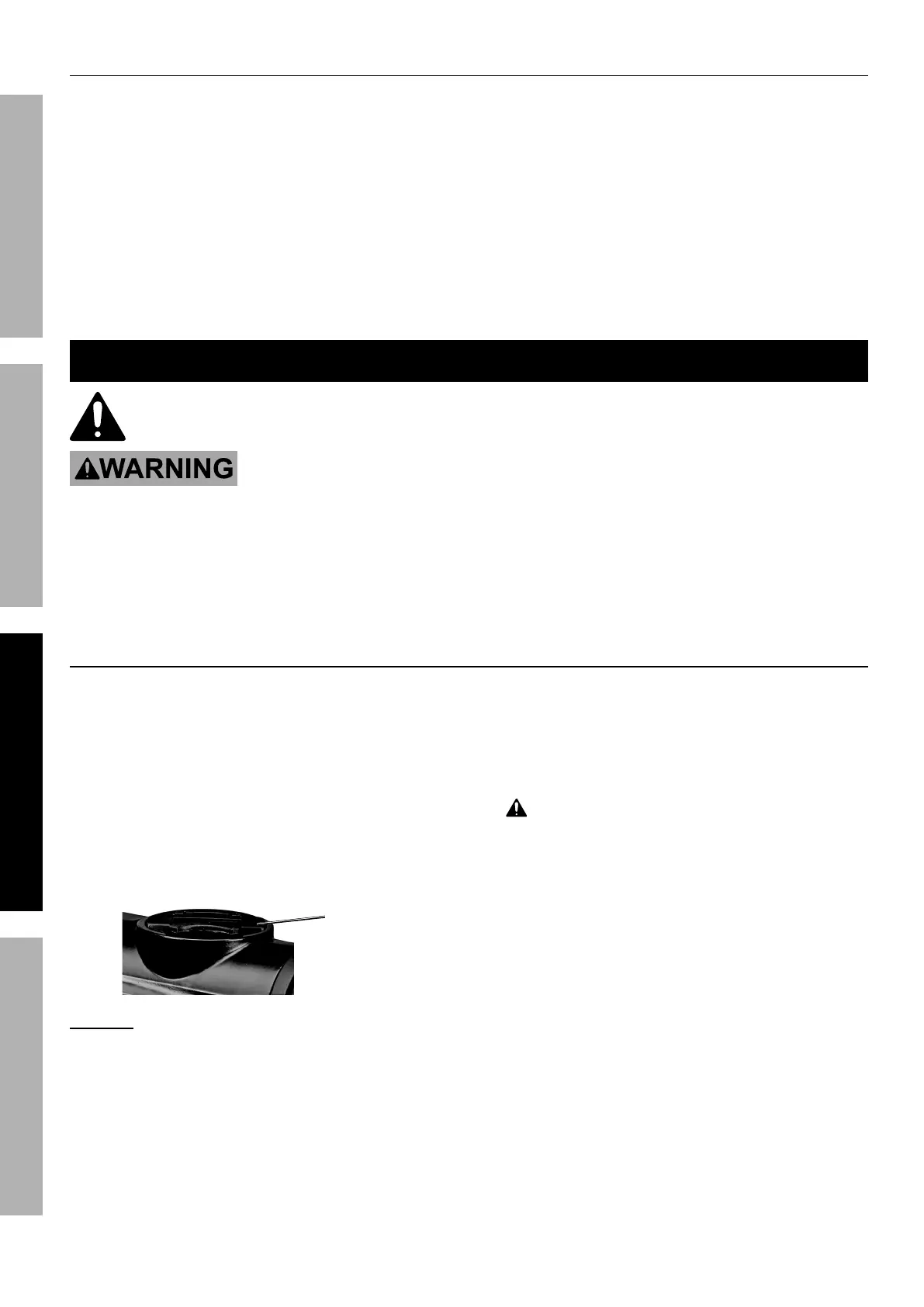

Page 10 For technical questions, please call 1-888-866-5797. 59100
Rotary Hammer and Hammer (Chisel) Operation
1. Install bit, adjust Auxiliary Handle,
adjust speed and set Mode.
2. Plug in the Power Cord.
3. Hold tool using both hands.
4. Squeeze and hold Trigger to turn on tool. Do not
apply excessive force, allow the tool to do the work.
5. Hammer Mode (Chisel) Operation Only: Start
Rotary Hammer at slower speed when contacting
work surface. Gradually increase to full speed.
6. When finished, to prevent accidents, release the
Trigger and disconnect its power supply after use.
a. Allow the bit to cool then remove it from the tool.
b. Wipe off the bit’s shank and store
bit separately from tool.
c. Clean the tool, then store the tool
indoors out of children’s reach.
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Release the Trigger and unplug the tool from its electrical outlet before
performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving
parts cracked or broken parts
• damaged electrical wiring
• and any other condition that may
affect its safe operation.
2. MONTHLY, open the Grease Port, clean out
old grease, and replace with new grease.
Grease
Port Cover
NOTICE: Warranty void if grease maintenance
(internal and bit shank) is not followed.
3. AFTER USE, wipe external surfaces
of the tool with clean cloth.
4. Lubricate the bit shank with grease
each time before installing to maintain
the life of the internal mechanism.
5. CWARNING! TO PREVENT SERIOUS
INJURY: If the plug or the supply cord of this
power tool is damaged, it must be replaced
only by a qualified service technician.
6. This tool includes an internal safety clutch that
helps prevent tool damage by disengaging
the drill function if the bit locks in place.
7. Sharpen chisel bits regularly.
SAFETY OPERATION MAINTENANCESETUP
