Cyclapse Classic
Product Guide - Revision B
Cyclapse Power Module
Harbortronics Part Number 000468
There are three main functions of the Cyclapse Power Module:
1. While some small solar panels can be connected directly to large Lead Acid batteries, LiPoly batteries must be charged carefully,
monitoring the voltage and temperature.
The Cyclapse Power Module maintains the charge on the internal LiPoly battery packs at an optimum voltage for long life, given
external power from a solar panel, or other alternative power source.
2. Camera Power Supply
While the battery pack provides from 12 – 16 volts, newer SLR cameras typically require 8 volts. The Cyclapse Power Module
efficiently converts the higher battery voltage to a nominal 8V to power a digital camera. If a camera is installed that requires a
different voltage, we can adjust the voltage accordingly at the factory. The camera power may controlled by the DigiSnap, for
instance to minimize power drain when using a WiFi memory card, or for periodic resets for cameras that may be prone to lock-up.
3. Digital Power Supply
The Cyclapse Power Module also converts the LiPoly battery voltage into 5V, to power the DigiSnap 2700 time-lapse controller as
well as accessory devices. The DigiSnap controls the power to accessories synchronously with power to the camera, to minimize
power drain between pictures.

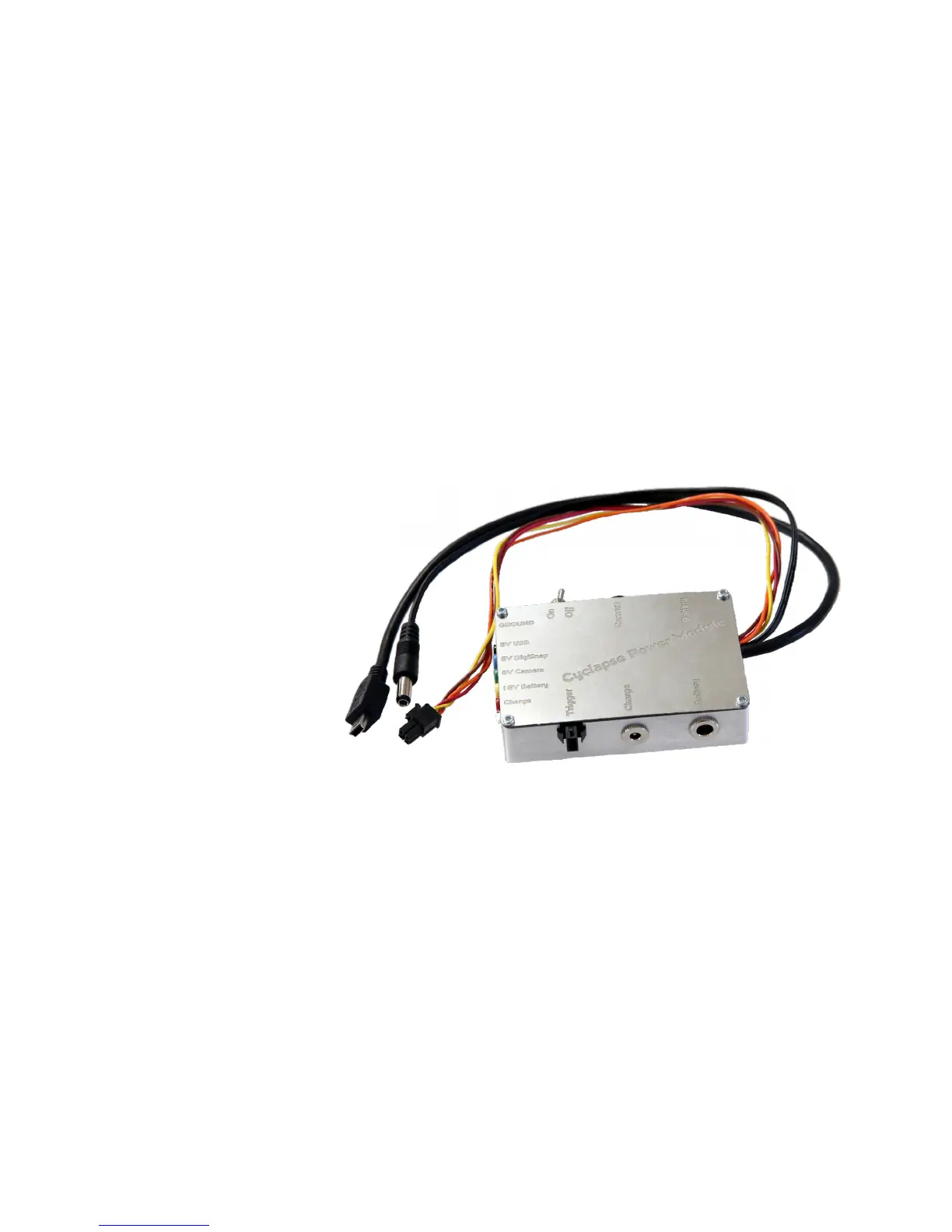

The Cyclapse Power Module is packaged
in a case that matches the inner curve of
the Cyclapse housing, and incorporates
magnets to secure it against the housing's
inner steel liners. This permits freedom of
positioning to suit the rest of the internally
installed equipment.
The Cyclapse Power Module incorporates
test points to allow a technician to quickly
check all of the voltages in the system,
using a digital or analog voltmeter (not
included). The charge power source,
battery pack, 5V power to the DigiSnap
and accessories, and the camera power
supply voltages can all be checked very
quickly.
Please refer to cyclapse.com/000468/product_guide.pdf for details about the Cyclapse Power Module.
Tools and Accessories
In order to save time during installation, and more importantly during occasional service on the Cyclapse system, tools are provided
and attached within the housing by a magnet. If you need to change the camera position or angle, replace the camera body, or any
other general service, the tools will be at hand.
A desiccant pack is included in the housing to minimize internal moisture, which can cause condensation during temperature
extremes. If the crystals eventually turn pink, bake the pack in an oven at 100C / 220F for a few hours, until they turn blue again. Be
careful not to melt the bag!
Harbortronics Inc 11 8/4/2015
