Time-Lapse Package
Revision E
Camera Mount
We have developed a robust method
of allowing the camera to be
removed from the housing for
service or configuration, and
replaced at exactly the same
orientation each time.
The pivoting plates firmly snap into
position using detents and strong
magnets. To pivot the camera free of
the housing, grasp the lens, and pull
straight forward. When replacing
the camera, wiggle the plates until
you feel the two detents snap into
position.
You may loosen the camera
mounting screw from underneath to
slide the camera forward and back,
as well as change the orientation
from right to left.

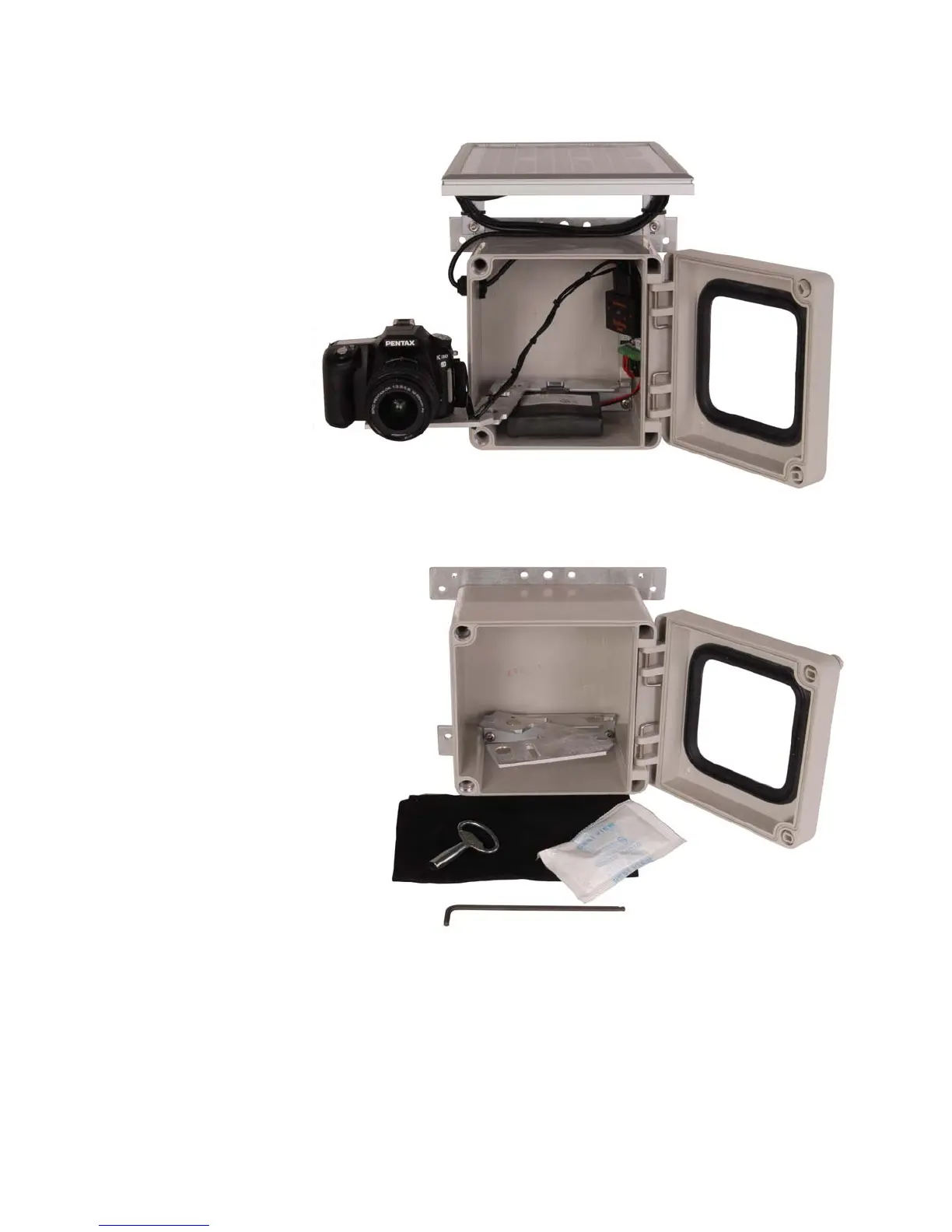

Mechanical Package
We can also provide an enclosure with
camera mount and external mounting
hardware. This package includes the external
mounting brackets, ball head mount, as well
as a the pivoting camera mounting system,
desiccant pack, black felt and hex tool, for
$433.37.
Battery Pack Assembly
The standard Time-Lapse Package includes a single high capacity Lithium-Ion Polymer (LiPoly) rechargeable battery pack, having a
nominal voltage of 11.1V, and 9AH capacity. A ‘universal AC’ battery charger is included. The housing is pre-wired to accept dual
battery packs, for greater capacity. An additional or replacement battery pack is priced at $265.63. Like all rechargeable batteries,
the effective capacity will gradually decline over time and use. We anticipate that the battery should give good service for about 3
years in constant use.
If dual battery packs are installed, please make sure that the voltages on the battery packs are within 0.25 volts of each other when
installing. Otherwise one pack will try to charge the other, with a rather high current. If both packs are fully charged using the AC
charger before installation, this will prevent this possible problem.
Harbortronics Inc 9 10/7/2008
