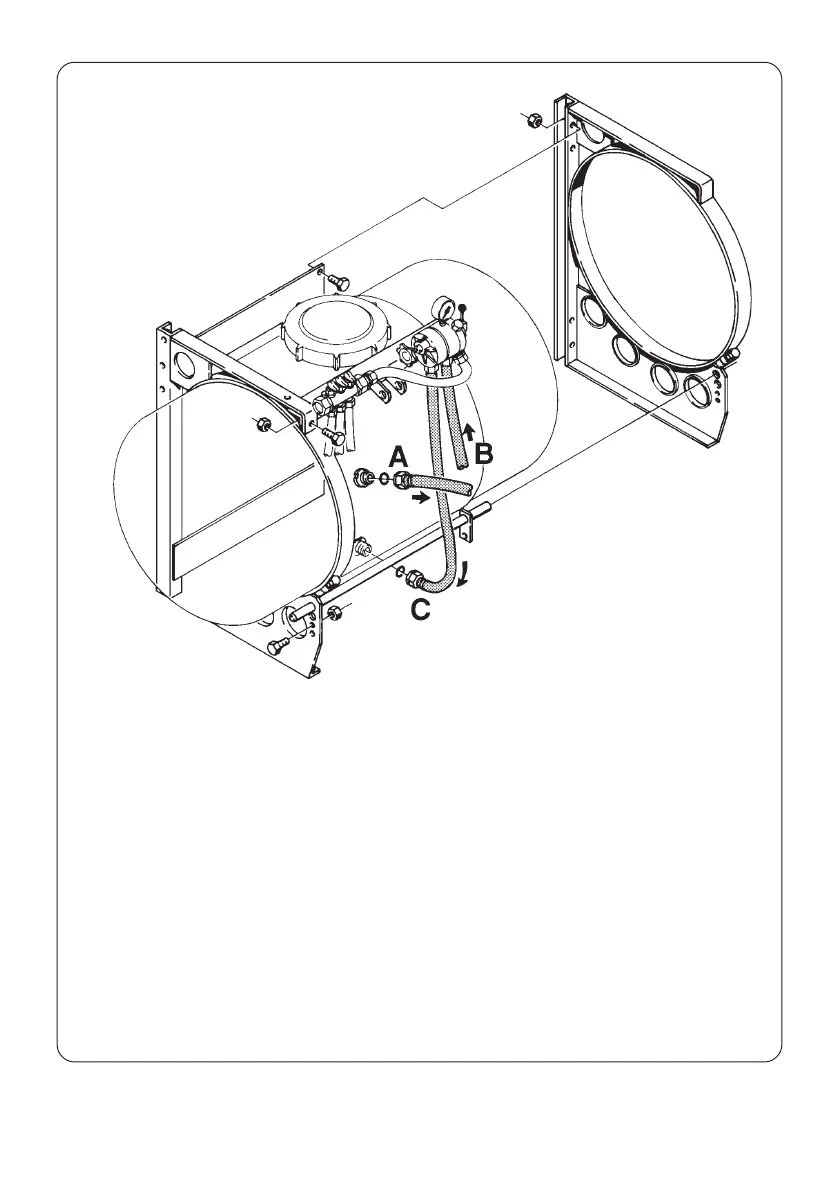

4. Assemble tank and frame.
5. Fit hoses. Remember to lubricate O-rings before fitting.
A = Suction hose to pump.
B = From pump.
C = Return to tank.
F = Feed hoses to boom.
NOTE: For sake of good order, it may be necessary to shorten some hoses
(for example, suction hose A). This is best done when assembly is com-
pleted and before hoses are secured with plastic straps.
