Hardi BL Series User Manual

24

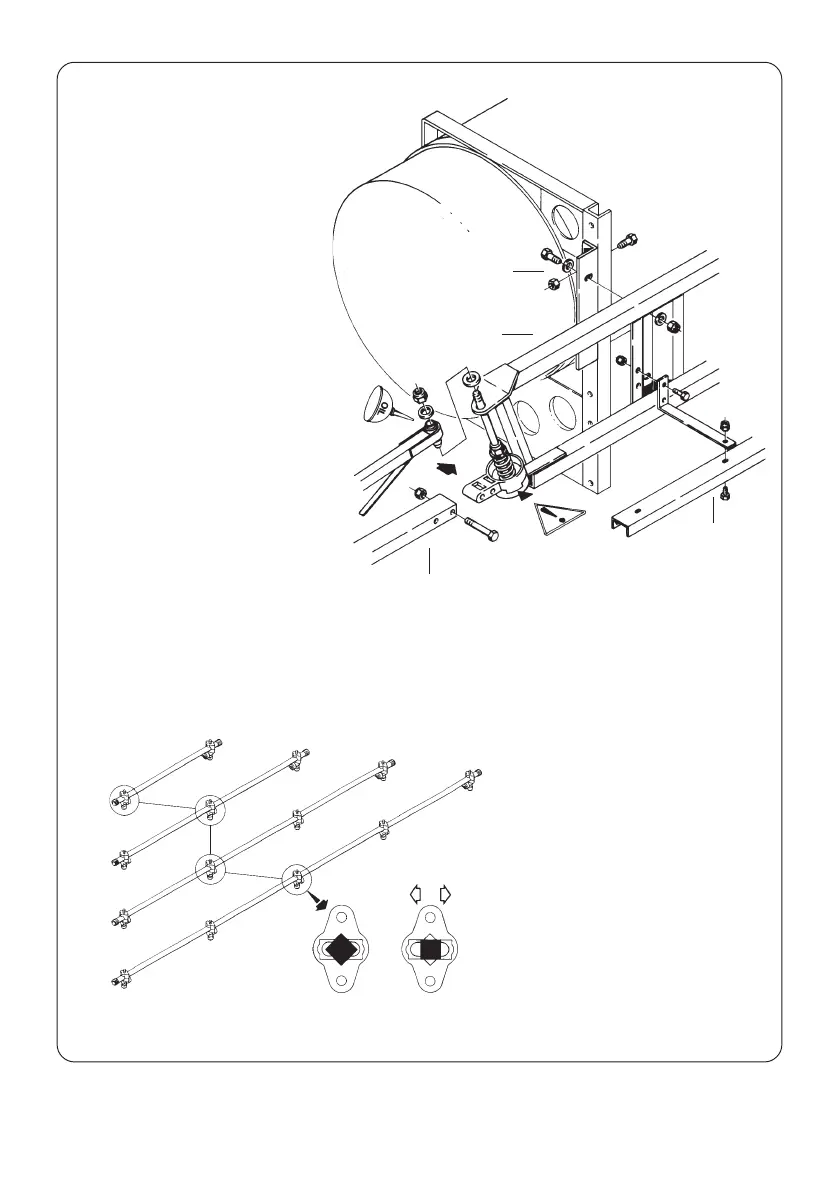

6. Bolt angle brackets to
frame.
7. Fit boom centre.
8. Fit U-profile.
9. Fit boom wings. Be
cautious when folding
boom for the first time.
See section on boom
breakaway in instruc-
tion book.
10. Nozzle tubes are
supplied with one lock
nozzle saddle per
tube. A. The rest can
slide lengthwise. B
allowing for extension
and contraction.
A B
6.
•
7.
•
•
9.
•
8.
T145-0010
