25
F
F

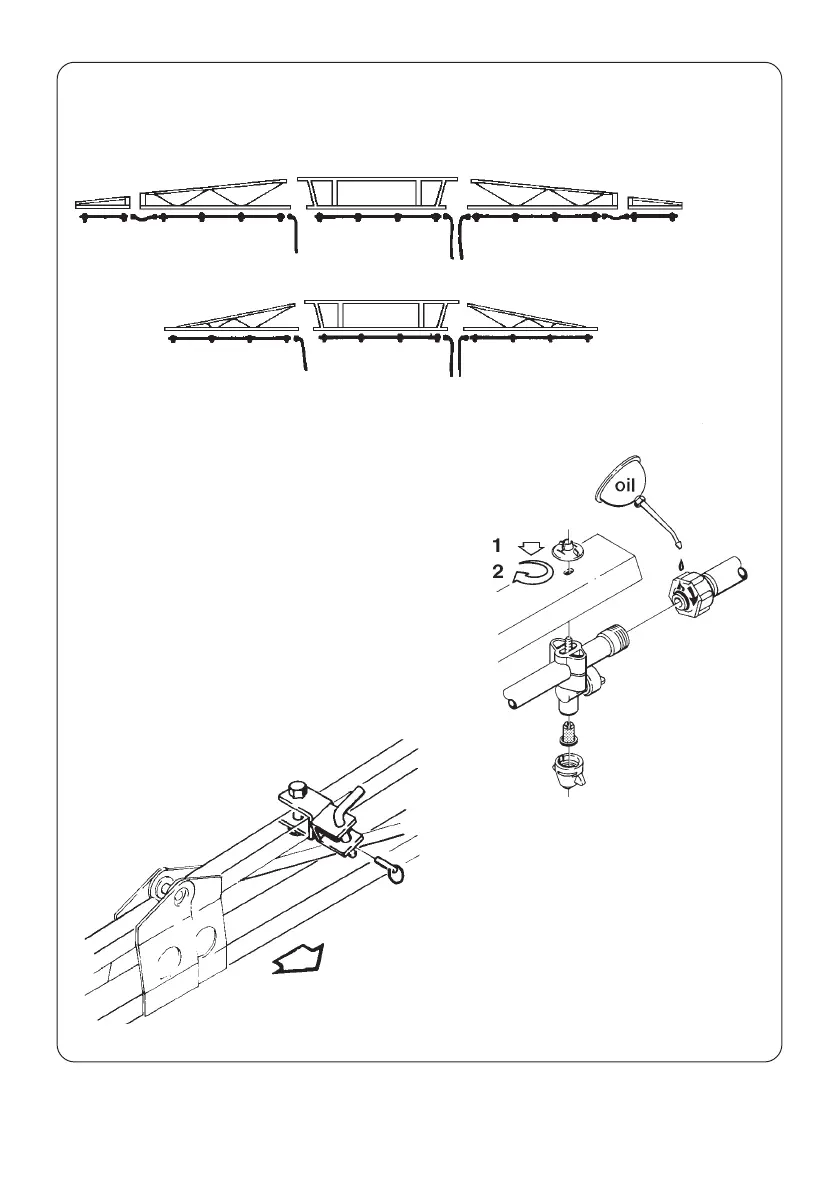

8m SB
6m SB
Placement of nozzle tubes, connecting hoses and feed hoses.
REMEMBER: Lubricate O-rings before fitting.
11.
Fit tubes using synthetic nut.
Press down
1
, turn
2
.
Do not overtighten.
12.
Mount filter and COLOR TIPS.
13.
For 8 metre SB - fit boom
transport lock. Arrow indi-
cates forward direction of
travel.
T145-0011
T145-0011
T145-0012
24
26
Table of Contents
Table of Contents
1
EC Declaration of Conformity
2
Operator Safety
3
Description
4
Operation Diagram
5
Connecting the Sprayer
6
Roadworthyness
6
Operating Instructions
7
Operation of the Boom
7
Boom Height
7
Pulsation Damper
7
Adjustment of the Operating Unit
8
Maintenance
9
Filters
9
Lubrication
10
Readjustment of the Boom
12
Changing of Valves and Diaphragms
13
Nozzle Tubes and Fittings
14
Off-Season Storage
14
Operational Problems
16
Technical Specifications
18
Pictorial Symbols
20
Preassembly Information
21
Assembly
22
Spare Parts Drawings
27
