7

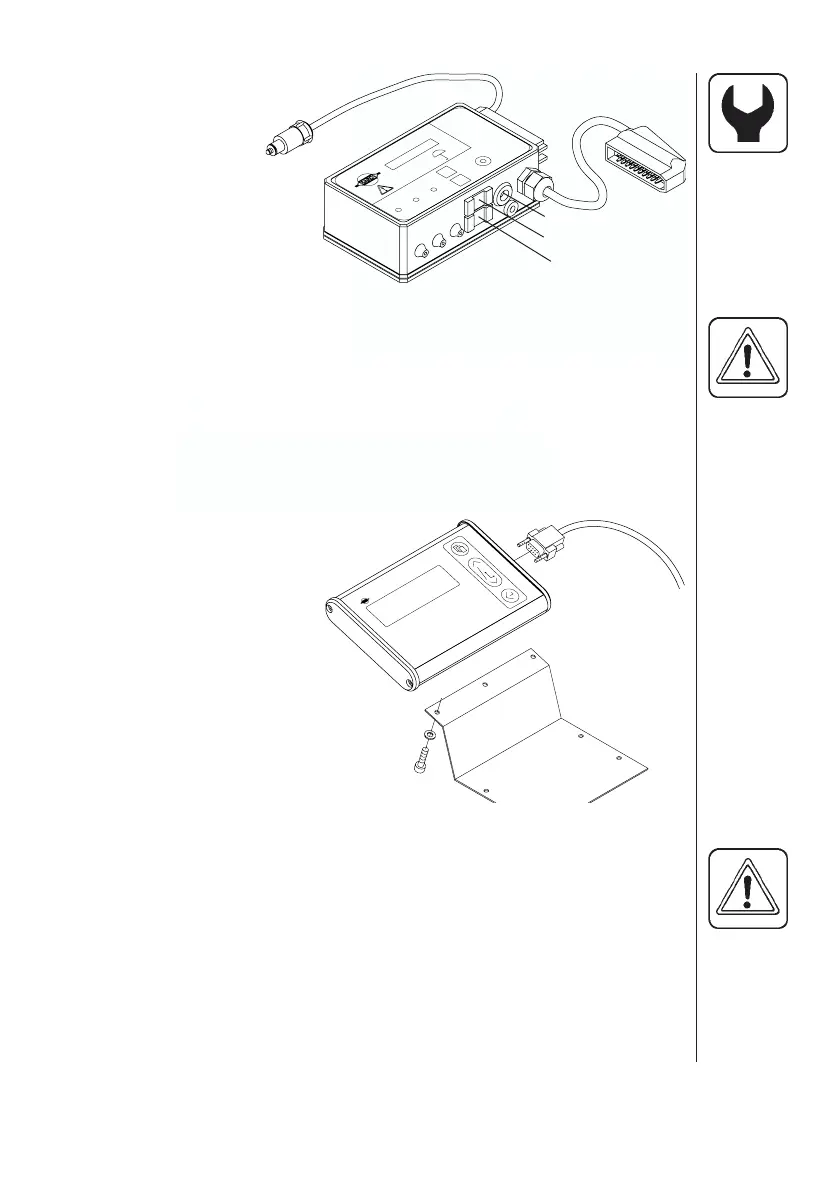

Scanbox
The box is not water
proof and must be
protected from
moisture. Place in the
tractor cabin for example,
behind the driver seat.
It should be secured from
movement.
NOTE: If the tractor is without a cabin, it is recommended to cover the
Scanbox and display with a rain protection bag. This is available as an
optional extra.
Fuses are located inside the box.
Fuse 1.25 T Amp Slow acting (HARDI ref. no. 261589)
The 2-pole 12 Volt socket has a maximum rating of 5 ampere.
Fuse 5.0 Amp Quick acting (HARDI ref. no. 261762)
Display
The display is fitted in the
tractor cabin at a convenient
place. Use only the supplied
screws.
The mounting plate (A) is
utilised to fit the display together
with the switch box. The display can
also be fitted to a flat surface with
“Velcro” tape.
Place “ Quick guide” sticker at C
NOTE: Power must be disconnected before plug (B) is connected to
the display.
12 Volt Max. 5 Amp
Flow
Speed
A
B
A
C
