20
6. PU 800/1000/1500 only

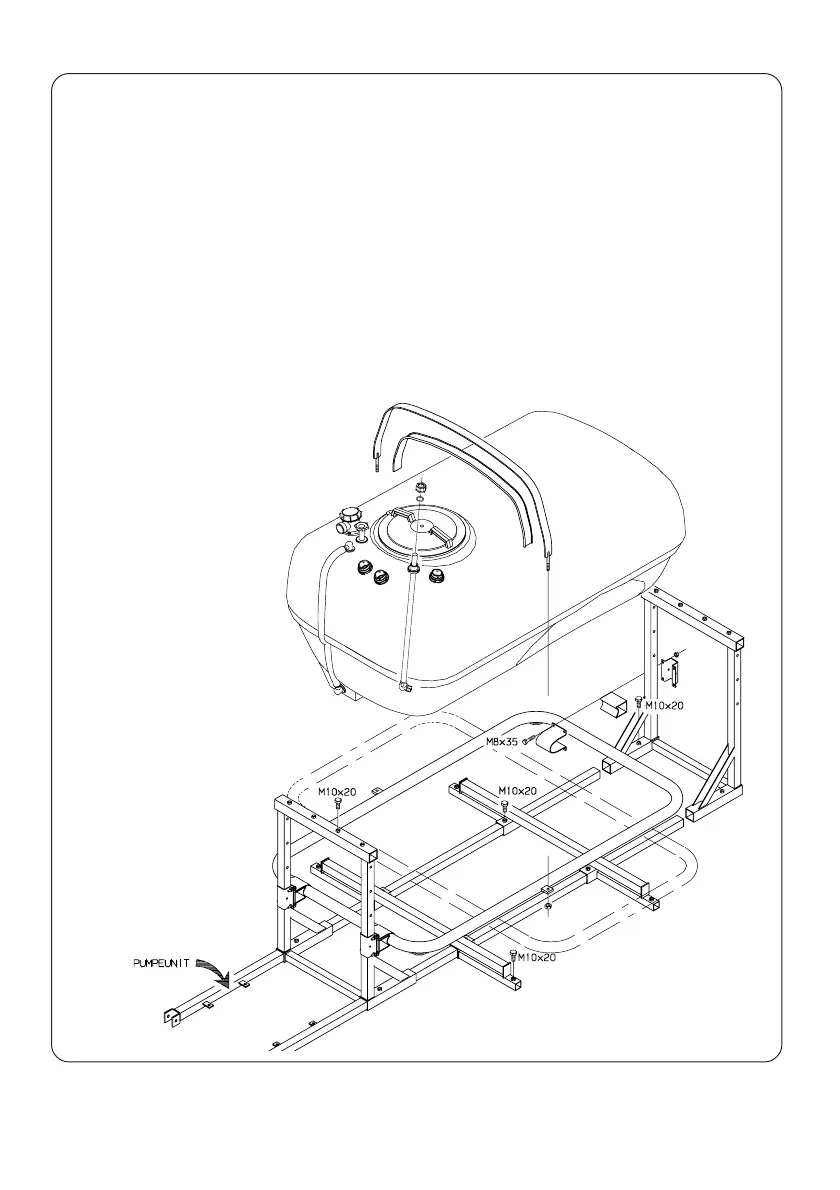

Fit the 2 guides (A) in tank frame. Fix tank frame with bracket/hole profile/
bracket (B). Are tightened together by means of M8 x 35. Mount pump unit
near fork. See back of gauge - pierce the casing. Fit the gauge but do not
overtighten.
Fit hoses - see diagram fig. 1 & 4. Blank off pressure agitation tube by
means of a socket (320047 + 330212). The tank frame can be raised and
lowered - Mind gravity displacement!
Fit and adjust the 4 side braces (C) so that the tank does not move on the
platform.
PRESSURE TEST WITH CLEAN WATER - CORRECT POSSIBLE
DEFECTS AND LEAKS.
