4 - Sprayer setup
4.11
Transport

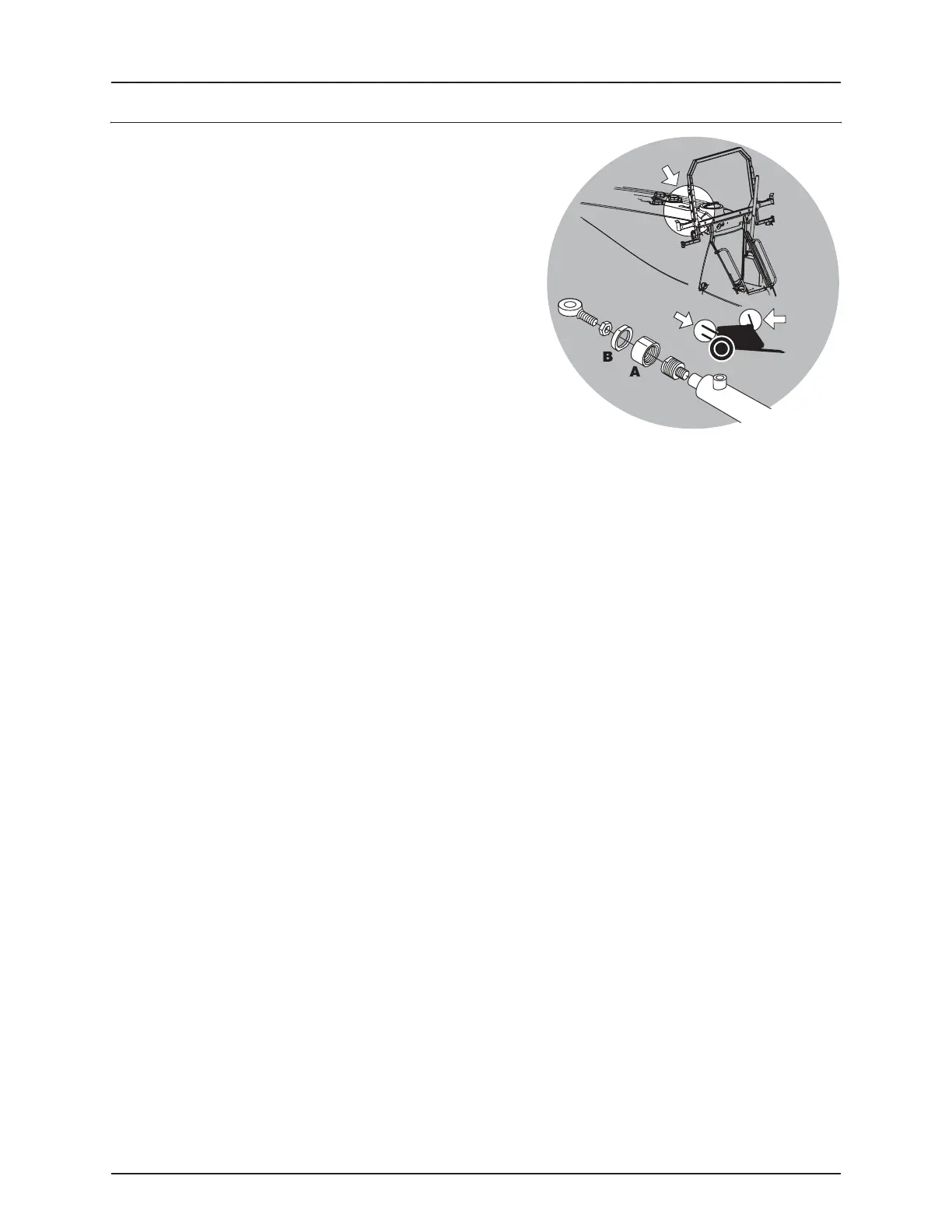

Adjusting boom transport position
If the boom wings do not rest accurately in the transport brackets, the
wings can be adjusted as described below:
1. Lift the boom all the way to the top.
2. Fol
d the boom into transpor t position. With the fold cylinder
pressurized, determine if the boom wings need to be adjusted
inwards or outwards.
3. Relieve the pressure from the fold cylinder by unfolding the b
oom
a few inches.
4. If the boom rests to far in on the transport brackets, loosen the nut
(B) and adjust collar (A) in towards the cylinder housing.
5. If the boom rests too far out on the transport br
ackets, the collar
(A) has to go out from the cylinder housing.
6. Secure jam nut (B).
7. Pressurize the cylinder to see if the boom is properly adjusted. If
not, repeat the above procedure until it is correc
tly adjusted.
