10
www.hardlifeutility.c om
CAUTION
Do not install the bolt on top of the truss, where the fabric will rest, as it can tear the fabric.
Each group arch, as shown in Figure 5 and 6, is made of:
• One top bent tube (component code 1)
• Two middle bent tubes (component code 2)
• Two bottom bent tubes (component code 3)
• M8 X 70 mm bolts (component code 9)
e tubes are assembled to form an arch using M8 X 70 mm bolts, as shown in Figures 5,6,7 and 8.
e other group arches are also assembled in the same manner.
NOTE:
• Ensure that the screw head is in the right direction to prevent it from tearing the roof cover.
• Assemble all the arches and lay them on the ground. Do not erect them until all the arches have been
assembled.

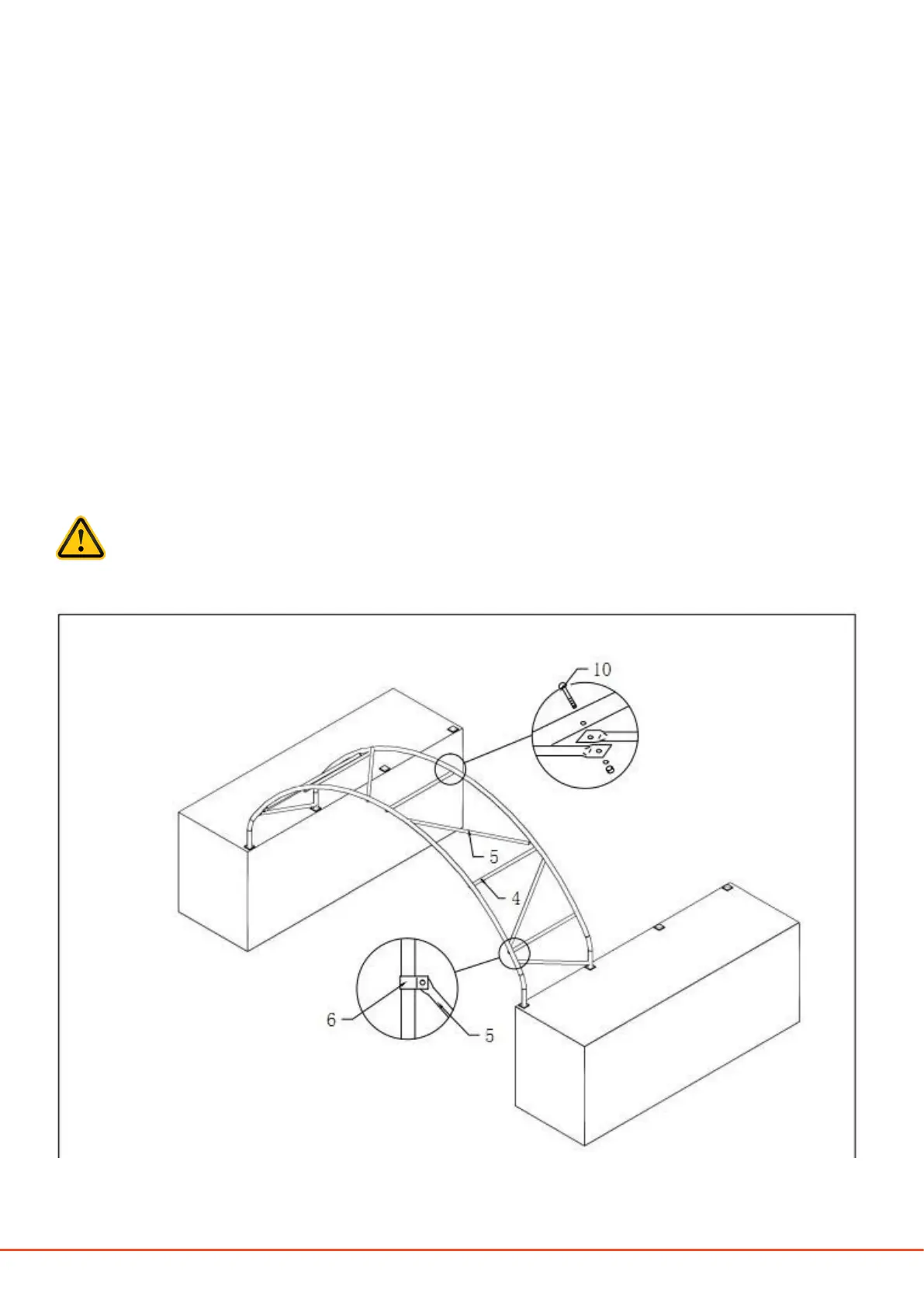

Figure 7 (C2620)
To Next Page
