Hardlife Utility C2620 User Manual

7
www.hardlifeutility.c om
BASE PLATE INSTALLATION
Refer to Figures 3 and 4 to place the base plates for the C2620 and C2640 container shelters, respectively. All
measurements are from centre to centre of the tubes.
1. Arrange the 4 / 7 base plates (with tie-down ratchet on the le) (component code L1) and the 4 / 7 base
plates (with tie-down ratchet on the right) (component code R1), as shown in Figures 3 and 4, for C2620
and C2640, respectively.
2. For the C2640 container shelter, secure the L1 and R1 base plates to the container using steel plates for
the base plates (component code 15A) and M12 x 30 mm screws (component code 15B), as shown in
Figure 4.
3. All the base plates should be welded on to the containers.

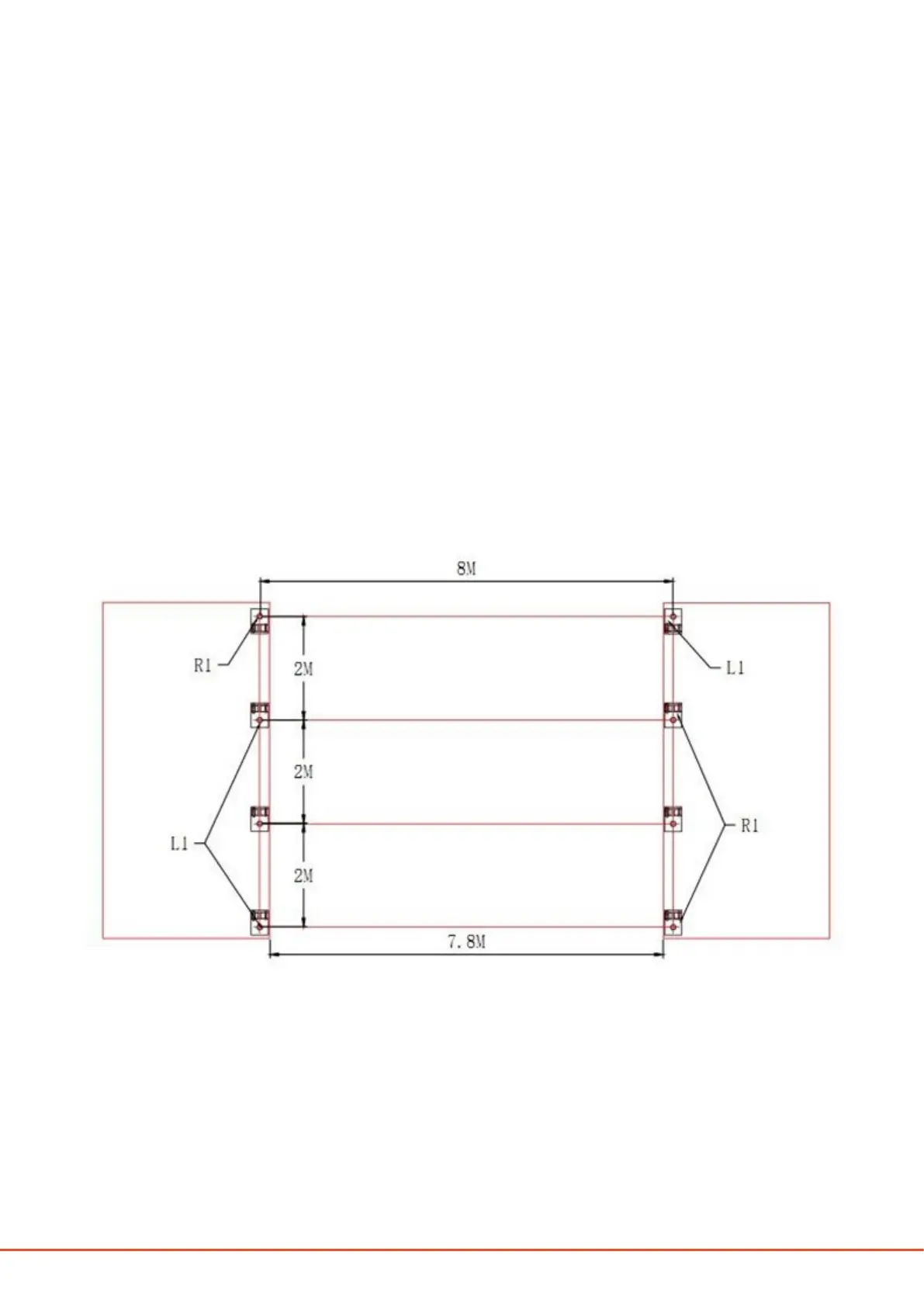

Figure 3 (C2620)
