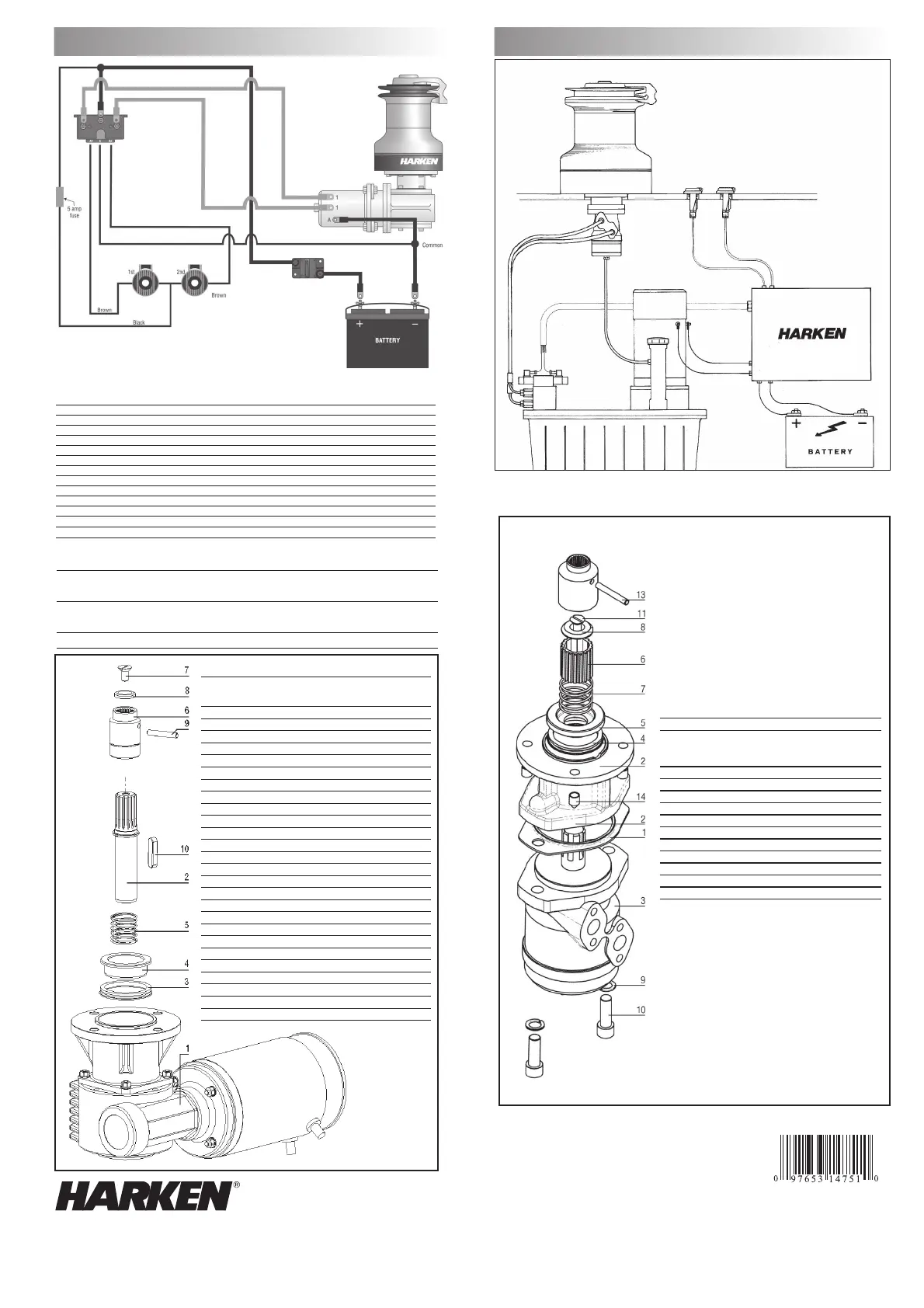

Harken 56.2ST E/HY - Wiring and Schematics; Wiring Diagram; Wire Size Chart; Installation Instructions

Wiring
1251 E. Wisconsin Ave., Pewaukee, WI 53072 USA • Tel: (262) 691-3320 • Fax: (262) 691-3008 • Web: www.harken.com • Email: harken@harken.com
Via della Cerca, 12/14, 22070 Lurago Marinone (CO) Italy • Tel: (39) 031.3523511 • Fax: (39) 031.3520031 • Web: www.harken.it • Email: info@harken.it
10-04
Fasten electric control box containing solenoids to bulkhead or wall.
Install remote circuit breaker between power supply and electric
control box.
Locate pushbuttons in a convenient spot for easy winch operation.
Pushbutton wire size is #14.
Refer to wiring diagram for wire size and connection information.
Schematics Piping
control box
■ Parts List
Pos. Q.ty Code Description
1 1 738156 Assy painted worm reduction
4 6208 Nut M6 UNI5588
4 6213 Washer D.6 ISO 7089
1 36461 Lower cover
4 36460 Screw stud M6 x 20
1 31279 Worm reduction unit VF49
1 38156 Support
4 6277 Heli-coil M10x10
2 1 36478 Shaft
3 1 6519 Ring
4 1 36479 Ring
5 1 33056 Spring
6 1 31074 Connecting coupling
7 1 6353 Screw M8x16 UNI6109
8 1 33043 Washer
9 1 6178 Spring pin 6x36 DIN 1481
10 1 6281 Key 8x7x35
11 1 831249 Electric Motor 12V 600W assy painted
1 31249 Electric motor 12V 600W 2800rpm
4 31281 Screw stud M6
4 6208 Nut M6 UNI5588
4 6213 Washer D.6 ISO 7089
11 1 831250 Electric Motor 24V 600W assy painted
1 31250 Electric motor 24V 600W 2800rpm
4 31281 Screw stud M6
4 6208 Nut M6 UNI5588
4 6213 Washer D.6 ISO 7089
■ Parts List
Pos. Q.ty Code Description
1 1 29505 Spacer
2 1 38149 Hydraulic motor support
3 1 30848 Hydraulic motor "OMR80
151-0721 alb.scan. 1"
4 1 6519 Ring
5 1 33045 Ring carrier
6 1 36475 Toothed coupling
7 1 32649 Spring
8 1 32936 Washer
9 2 6215 Washer D.13 UNI1751
10 2 6671 Screw M12x35 UNI5931
11 1 6353 Screw M8x16 UNI6109
12 1 36476 Hydro motor coupler
13 1 6660 Spring pin 6x36 DIN 1481
14 4 6277 Heli-coil M10x10
WIRE SIZE CHART
(distance in meters from battery to winch and back battery)
3 4,6 6,1 7,6 9,1 12,2 15,2
Amps Section mm 2
5* 0,8 1 2 3 3 5 5
30 5 8 13 13 19 19 32
40 8 13 13 19 19 32 32
50 13 13 19 19 32 32 40
60 13 19 19 32 32 40 50
70 13 19 32 32 40 50 62
80 13 19 32 32 40 50 81
90 19 32 32 40 50 62 81
100 19 32 32 40 50 62 81
120 19 32 40 50 62 81 103
140 32 32 50 62 62 103 103
* Push buttons require 2 mm2 cable
