2005 PDI: Touring Models 2-13
TRANSMISSION LUBRICANT
NOTE
Allow vehicle to stand upright for a moment before checking
transmission lubricant level. This will allow lubricant level to
normalize.
Check the transmission lubricant level with the motorcycle
standing upright in accordance with the procedure given in
the Touring Models Service Manual.
CHAINCASE LUBRICANT LEVEL
AND CLUTCH OPERATION
NOTE
Do not remove the clutch cover on the FLHTCSE
2
. It is not
necessary to check the primary chaincase lubricant level on
this vehicle. Also, the hydraulic clutch is not adjustable.
1. Remove five screws, clutch inspection cover and cover
gasket.
2. See Figure 2-16. The primary chaincase lubricant level is
acceptable when lubricant is visible in bottom of chain-
case with motorcycle standing upright (not resting on jiffy
stand).
3. Check clutch action. Clutch lever should move freely and
smoothly through its entire range of travel.
4. Check clutch adjustment according to the procedures
given in the Touring Models Service Manual.
NOTE
The clutch inspection cover gasket may be reused ONLY
when checking chaincase lubricant level and reinstalling
clutch inspection cover at PDI.
5. Reinstall cover gasket and clutch inspection cover, and
secure with five screws. Tighten to 84-108 in-lbs (9.5-
12.2 Nm).

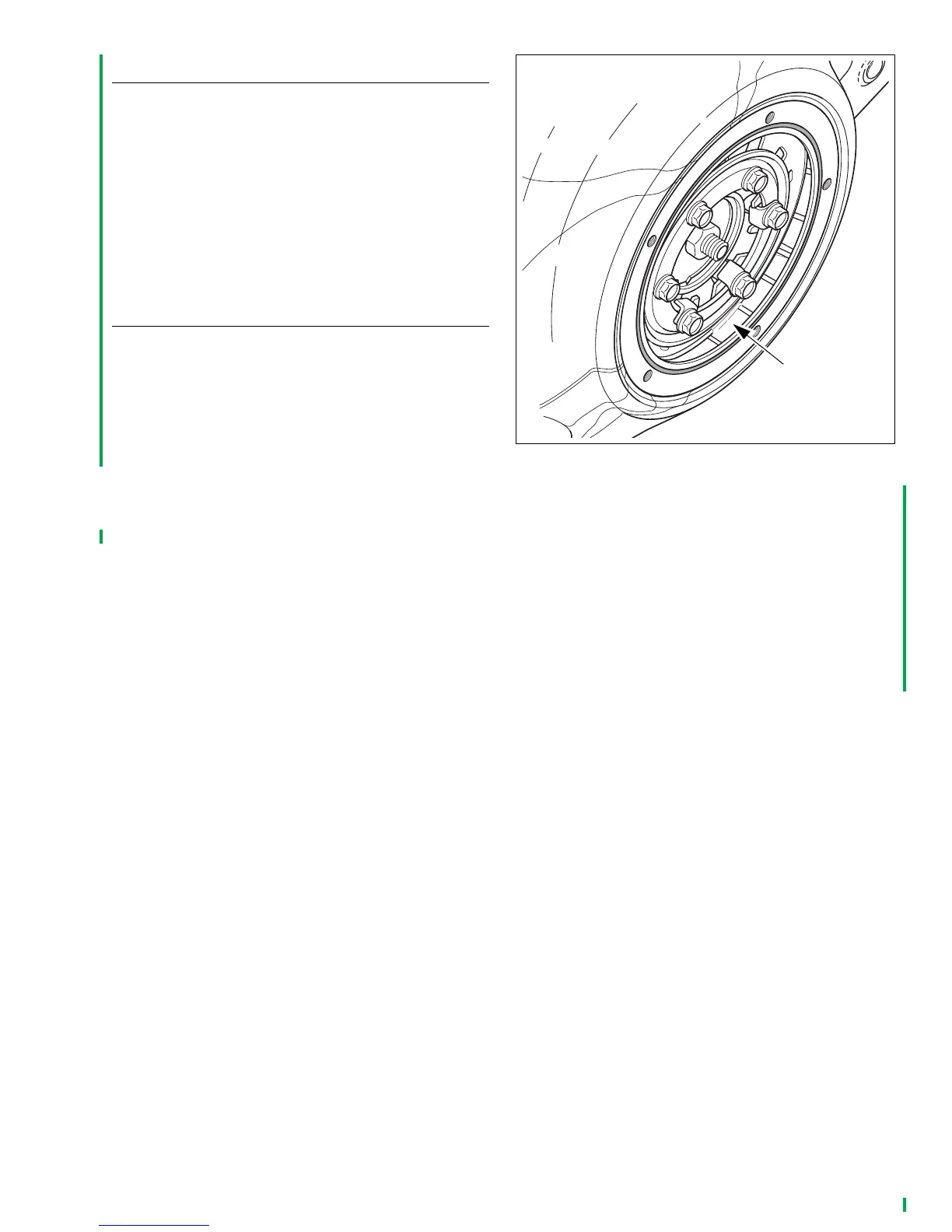

Figure 2-16. Chaincase Lubricant Level
