2005 PDI: Dyna Models 3-7
ELECTRICAL SYSTEM 3.5
HEADLAMP
Check headlamp beam for proper height and lateral align-
ment in accordance with procedures given in the Dyna Mod-
els Service Manual
1WARNING1WARNING
The automatic-on headlamp feature provides increased
visibility of the rider to other motorists. Be sure head-
lamp is on at all times. Poor visibility of rider to other
motorists can result in death or serious injury. (00030b)
NOTE
All FXDX/I models with a black-painted mounting bracket
above the headlamp have a snap cap taped to right rear turn
signal. Install snap cap after headlamp has been adjusted. All
other models are shipped in position.
INDICATOR LAMPS/CONTROLS
NOTE
See Figure 3-6. This figure shows instruments and indicators
on FXDX models. Instruments and indicators on remaining
Dyna models are located as follows:
● FXD Speedometer and indicators in handlebar bracket.
● FXDWG Speedometer and indicators in panel on gas
tank.
FXDL Speedometer and tachometer in console on gas tank,
indicators in headlamp bracket.
1. Turn ignition switch to “IGNITION” position, check that oil
pressure indicator lamp turns on (before engine is
started) and check engine lamp illuminates for about four
seconds and goes off.
2. Shift transmission to neutral position, and verify that neu-
tral indicator lamp turns on.
3. Start engine; check operation of starter.
4. Check that oil pressure indicator lamp turns off when
engine is running above 1000 RPM.
5. Check operation of tachometer, if equipped.
6. Disengage clutch (depress clutch lever), and verify that
neutral indicator lamp turns off when transmission is
shifted to any forward gear. Shift transmission to neutral
position, and verify that neutral indicator lamp turns on
again.
7. Check horn operation.
8. Check operation of all remaining lamps:
● headlamp–low and high beams
● headlamp high beam indicator lamp
● left directional (turn signal) lamps–front and rear
● Ieft directional (turn signal) indicator lamp
● right directional (turn signal) lamps–front and rear
● right directional (turn signal) indicator lamp
● Ieft front running lamp
● right front running lamp
● tail lamp–running lamp and brake lamp filaments
● speedometer illumination lamp
● tachometer illumination lamp
9. After engine has reached normal operating temperature,
turn engine off.
10. Check engine oil level in manner previously specified.
This time, fill oil tank to upper mark on filler cap/dipstick.

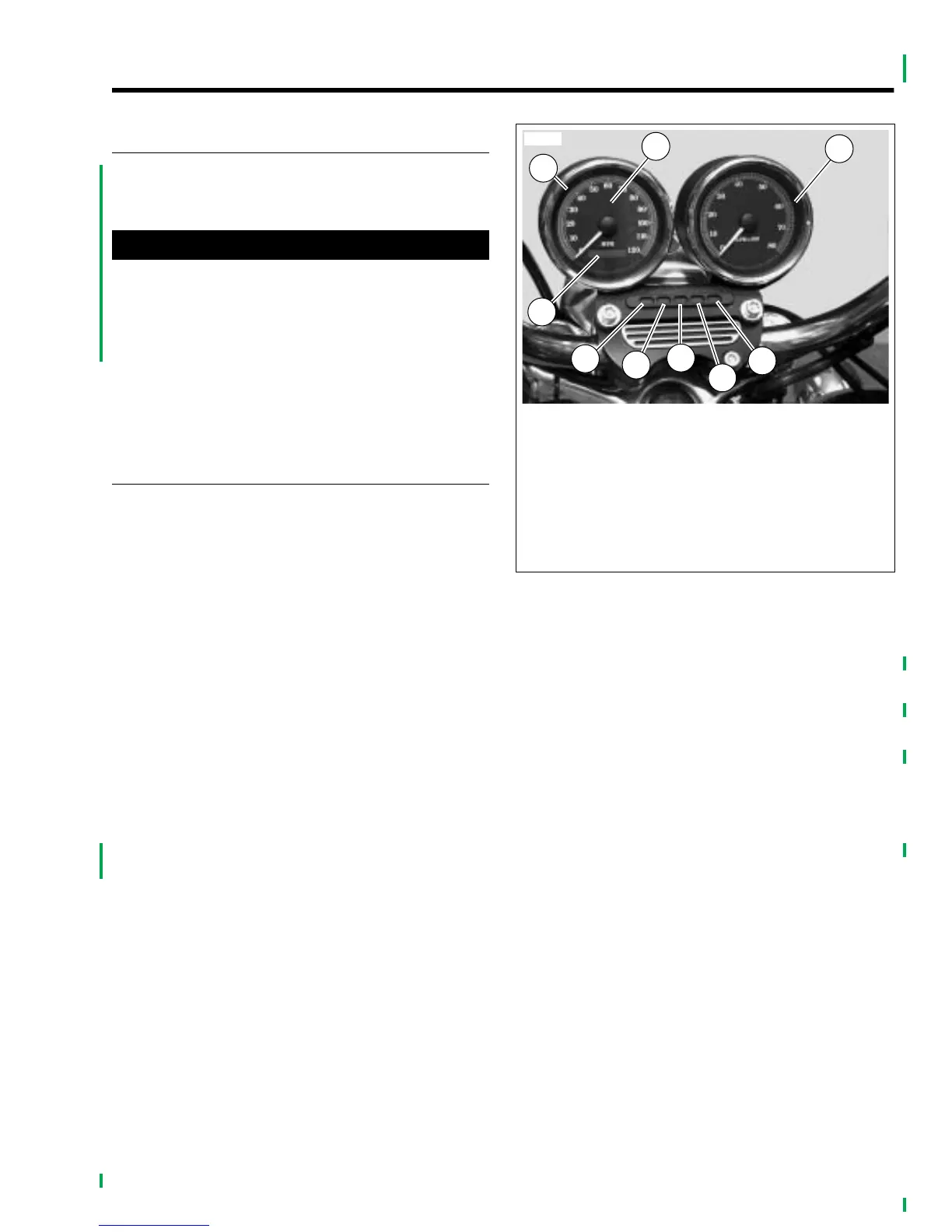

Figure 3-6. Instruments & Indicator Lamps FXDX (typical)
1. Speedometer
2. Odometer and trip odometer
3. Left directional (turn signal) indicator lamp
4. High beam indicator lamp
5. Neutral indicator lamp
6. Oil pressure indicator lamp
7. Right directional (turn signal) indicator lamp
8. Tachometer
9. Check engine lamp
10648
1
2
3
4
5
6
7
8
9
