2005 PDI: Softail Models 4-7
ELECTRICAL SYSTEM 4.5
HEADLAMP
Check headlamp beam for proper height and lateral align-
ment in accordance with procedures given in the Softail Mod-
els Service Manual.
1WARNING1WARNING
The automatic-on headlamp feature provides increased
visibility of the rider to other motorists. Be sure head-
lamp is on at all times. Poor visibility of rider to other
motorists can result in death or serious injury. (00030b)
AUXILIARY LAMPS
On models equipped with auxiliary lamps, check lamp beam
for proper height and lateral alignment in accordance with
procedures given in the Softail Models Service Manual.
MIRRORS AND DIRECTIONAL
LAMPS
See Figure 4-7. Adjust mirrors for proper rear view. Adjust
front directional lamps so lenses are aimed directly forward;
adjust rear directional lamps so lenses are aimed directly
rearward. Verify that mirror and directional lamp fasteners are
properly tightened.

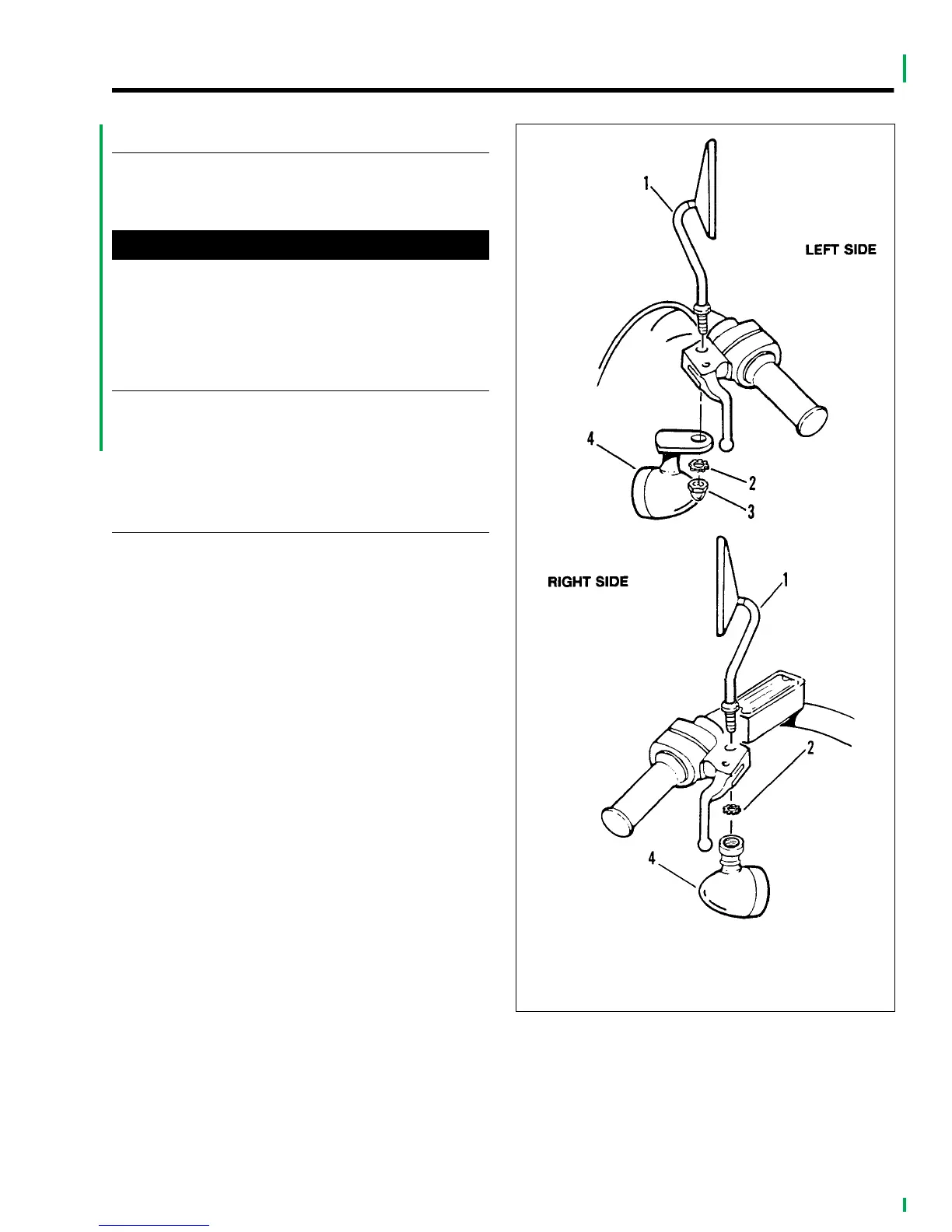

Figure 4-7. Mirrors And Turn Signals
1. Mirror
2. Star washer
3. Acorn nut
4. Front directional lamp
pd0104c
