sm02704a
9.1. Damper spring seatBolt (6) (metric)
2. 10.Diaphragm spring retainer Mainshaft nut (metric)
11.3. Clutch hubDiaphragm spring
4. 12.Pressure plate Retaining ring
13.5. BearingFriction plate (9)
6. 14.Steel plate (8) Clucth shell
15.7. Retaining ringNarrow friction plate
8. Damper spring

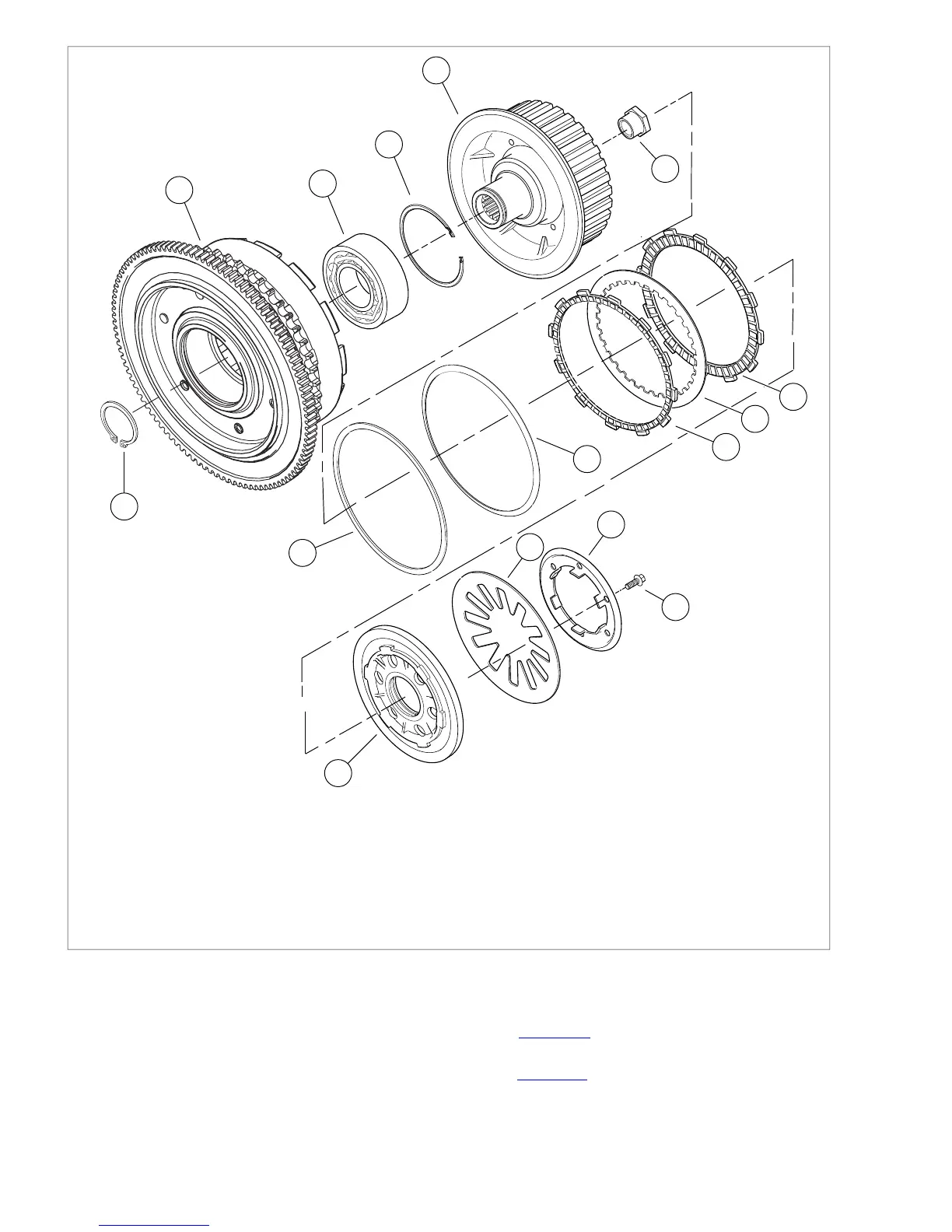

Figure 6-30. Clutch Shell Assembly
Assembly
NOTE
Submerge and soak all friction plates in FORMULA+ TRANS-
MISSION AND PRIMARY CHAINCASE LUBRICANT (Part No.
99851-05, qt.) for at least five minutes.
1. See Figure 6-31. Install the narrow friction plate on the
clutch hub. Engage tabs on plate with slots in clutch shell.
2. See Figure 6-30. Install damper spring seat (9) on clutch
hub (11). It must sit inboard of narrow friction plate (7).
