7.3SHIFTER LINKAGE
ADJUSTMENT
NOTE
Not all models are equipped with adjustable linkage.
The shift rod is set at the factory and should not need adjust-
ment under normal circumstances. However, if full engagement
or full lever travel is not achieved, adjust the shift rod.

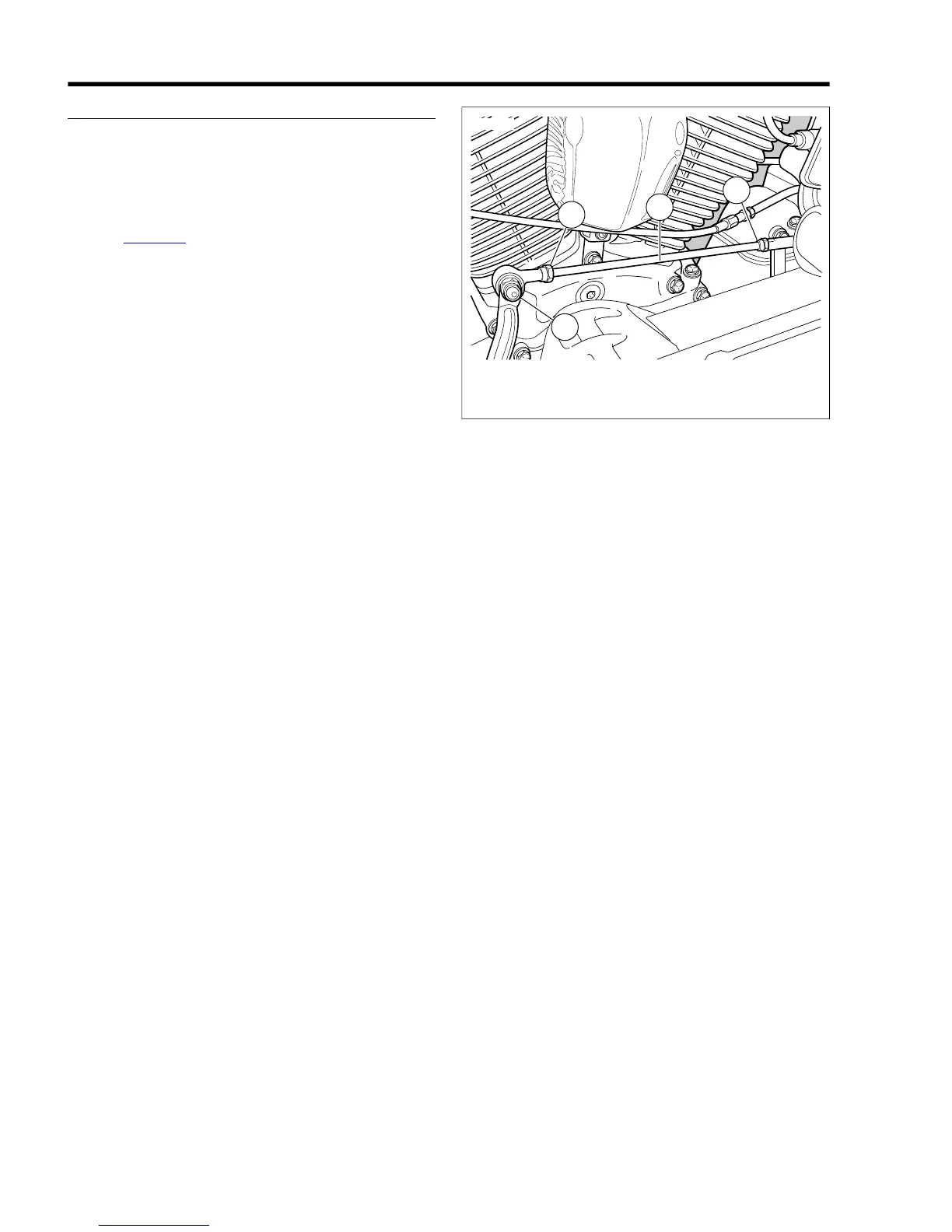

1. See Figure 7-2. Remove locknut (3), lockwasher and flat
washer to free front end of shift rod from inner shift arm.
2. Loosen jam nuts (1) and adjust rod (2) as necessary.
3. Install flat washer, lockwasher and locknut (3) to fasten
front end of shift rod to inner shift arm.
4. Tighten locknut (3) to 96-144 in-lbs (10.8-16.3 Nm)
5. Tighten jam nuts to 80-120 in-lbs (9.0-13.6 Nm).
