9. Install clutch inspection cover and new seal as follows:
a. Thoroughly wipe all lubricant from cover mounting
surface and groove in chaincase.
b. See Figure 1-15. Position new seal (1) in groove in
primary chaincase cover and press each of the nubs
on seal into the groove. The nubs will retain seal in
position.

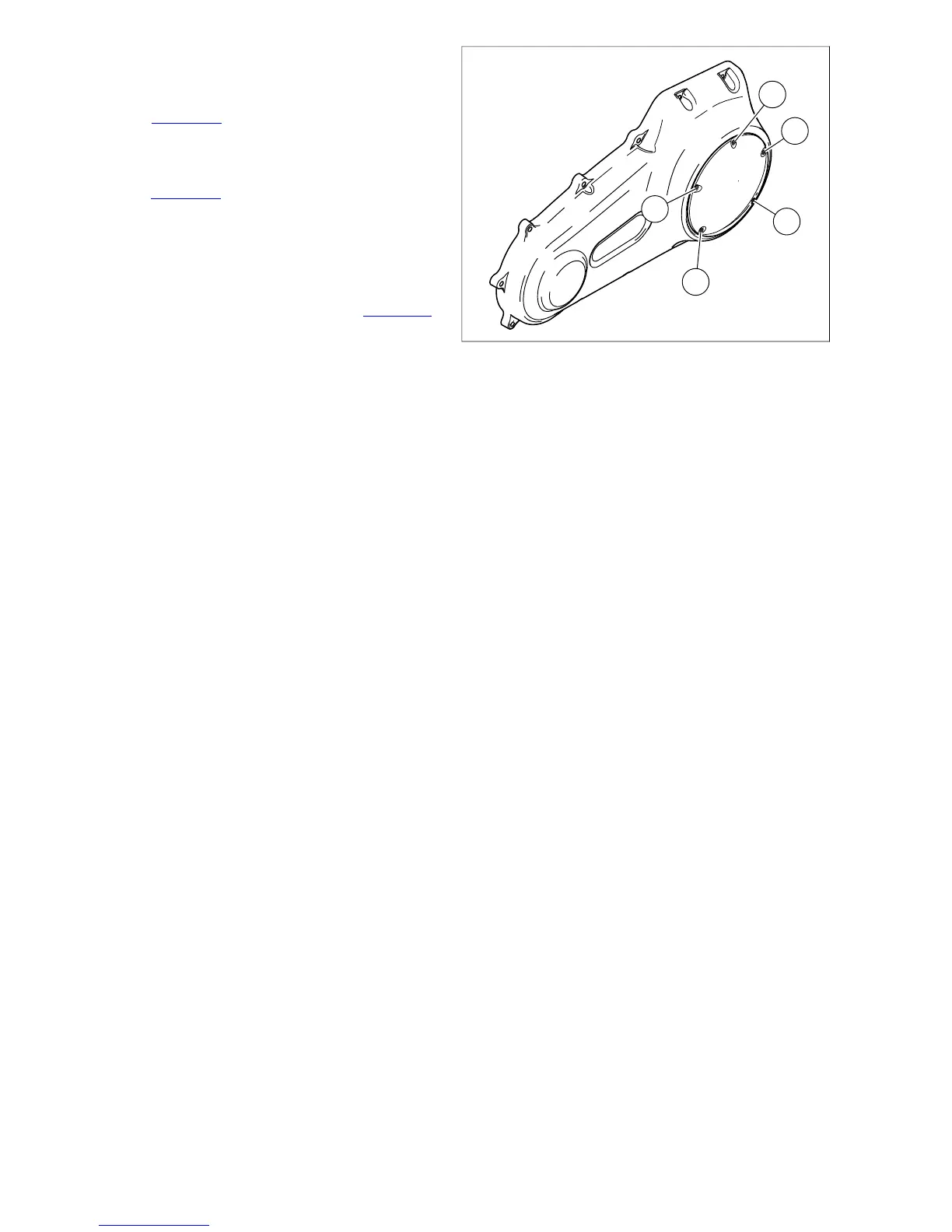

c. See Figure 1-16. Insert screw (with captive washer)
through clutch inspection cover and carefully thread
it into the top cover screw hole.
d. Start the remaining four screws (with captive
washers).
e. Alternately tighten screws to 84-108 in-lbs (9.5-12.2
Nm) following torque sequence shown in Figure 1-16.
