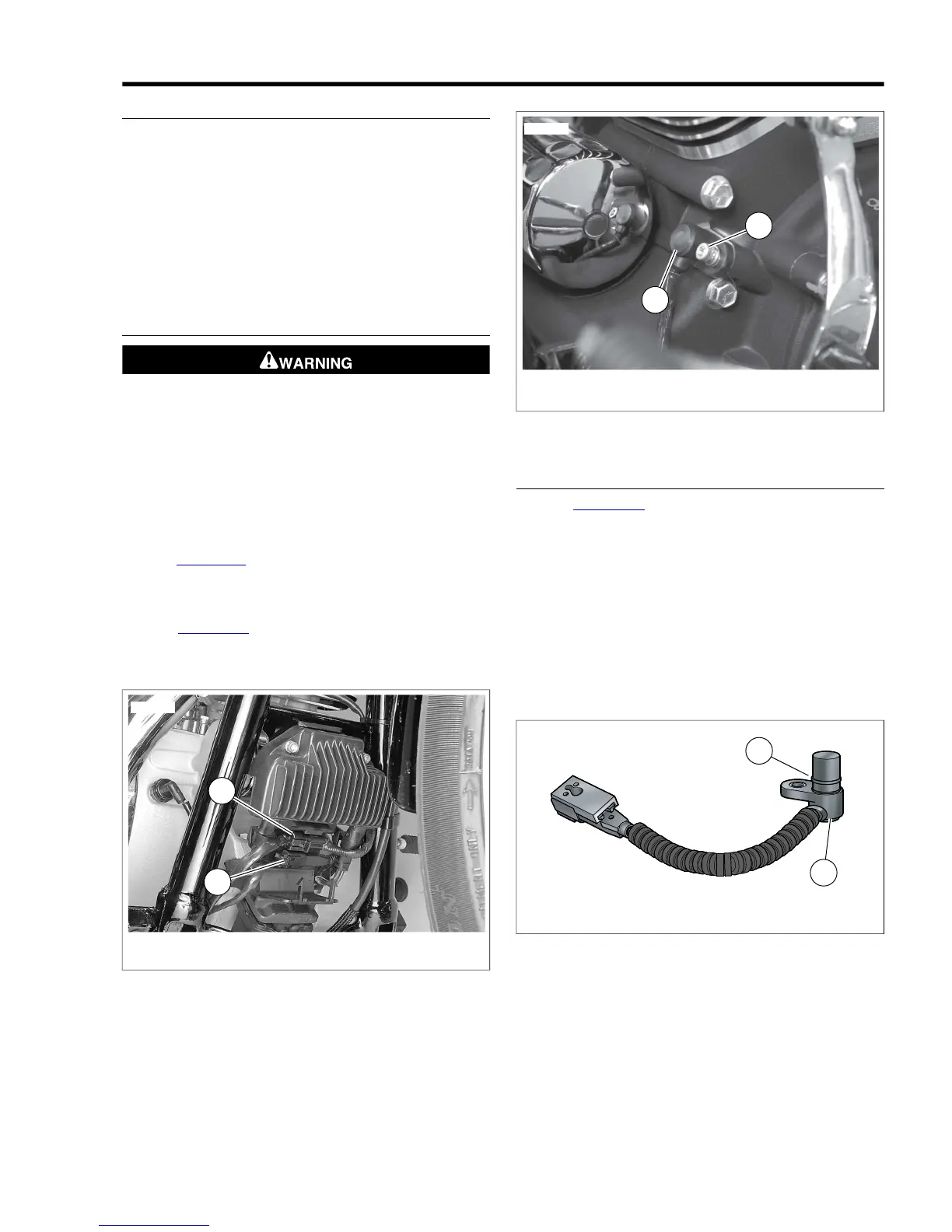

8.13CRANK POSITION SENSOR (CKP)
GENERAL
The crank position sensor is a variable reluctance (VR) sensor
that generates an AC signal by sensing the passing of the 30
teeth machined in the left side flywheel.Two consecutive teeth
are missing in the flywheel to establish a reference point. The
crank position sensor sends a signal to the ignition control
module which is used to reference engine position (TDC) and
engine speed.
NOTE
CKP sensor connector is not serviceable. If connector or sensor
fails, the entire assembly must be replaced.
REMOVAL
To prevent accidental vehicle start-up, which could cause
death or serious injury, disconnect negative (-) battery
cable before proceeding. (00048a)
1. Disconnect negative battery cable.
NOTE
Before removing wiring, carefully note wire routing.
2. Depress upper front electrical caddy cover tabs to open
cover.
3. See Figure 8-34. Remove CKP sensor connector (2) from
front electrical caddy.
4. Disconnect CKP sensor connector.
5. See Figure 8-35. Remove screw and captive washer (2)
to detach CKP sensor (1) and O-ring from crankcase.
Carefully remove crank position sensor.
1. CKP sensor
2. Screw and captive washer
Figure 8-35. Crank Position Sensor
INSTALLATION
1. See Figure 8-36. Lubricate CKP sensor O-ring (1) with
clean engine oil.
2. Install new CKP sensor with screw and captive washer.
Tighten screw to 90-120 in-lbs (10.2-13.6 Nm).
3. Connect CKP sensor connector.
a. Mate connector halves.
b. Install connector on front electrical caddy.
4. Close and latch front electrical caddy cover.
5. Connect negative battery cable.
