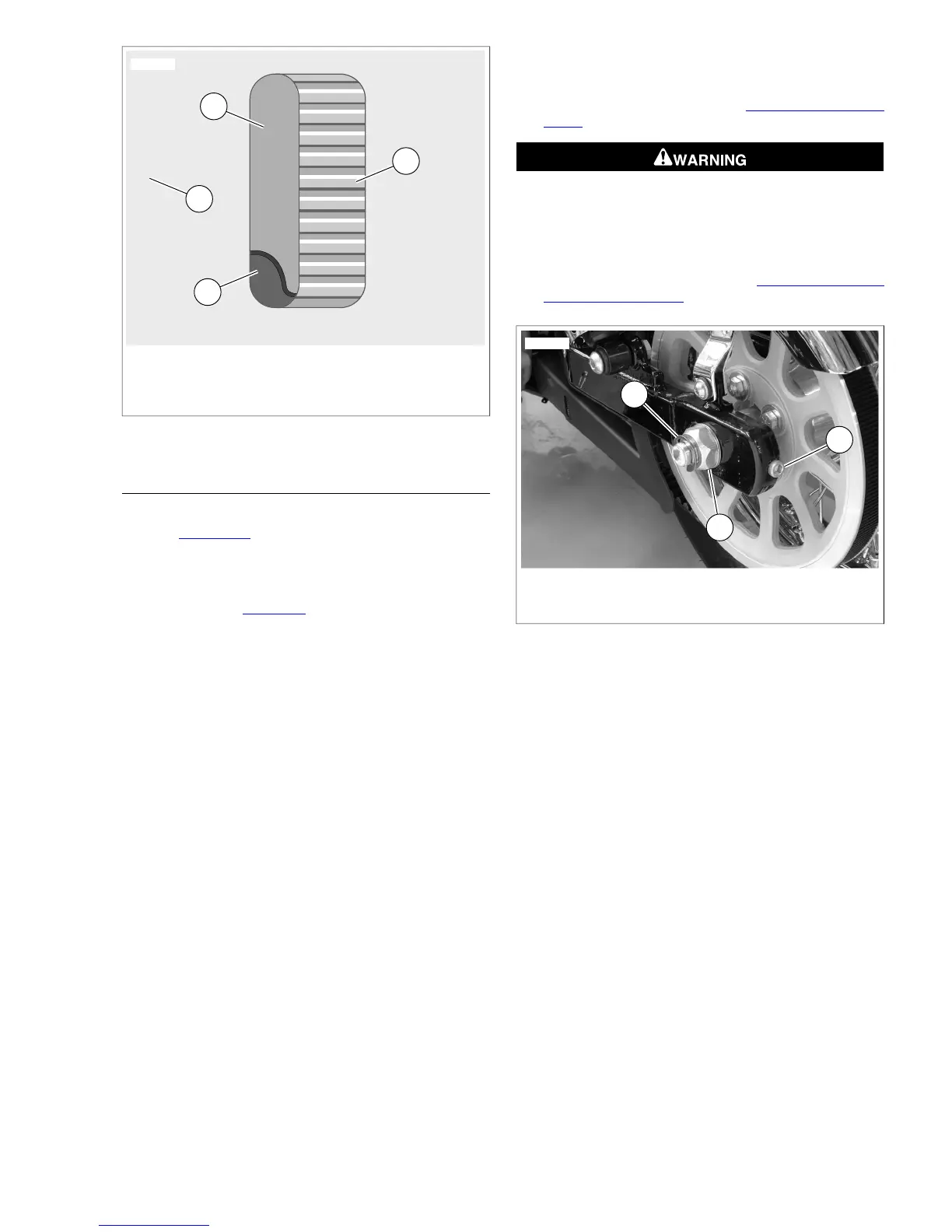

1. Debris deflector
2. Belt deflection viewing window
3. Drive belt deflection graduations
4. Drive belt
Figure 1-27. Belt Deflection Window
ADJUSTMENT
If belt adjustment is necessary, perform the following procedure:
1. See Figure 1-28. Remove retaining ring (3) and loosen
axle nut (2).
2. Adjust belt tension by turning the axle adjusters (1) an
equal number of turns to keep the wheel aligned until the
specification in Table 1-11 is achieved.
3. Tighten axle nut (2) to 95-105 ft-lbs (128.8-142.4 Nm).
4. Install retaining ring (3).
5. Tighten adjuster screws to 96-120 in-lbs (10.8-13.6 Nm).
6. Verify rear wheel alignment. See 2.11 VEHICLE ALIGN-
MENT.
Check wheel bearing end play after tightening axle nut to
specified torque. Excessive end play can adversely affect
stability and handling. Insufficient end play can cause
bearing seizure. Either condition can cause loss of control,
which could result in death or serious injury. (00285a)
7. Check wheel bearing end play. See 2.5 SEALED WHEEL
BEARINGS, Inspection
To Next Page
