Harley-Davidson Dyna 2008 - Page 460

4
2
3
1
sm00027

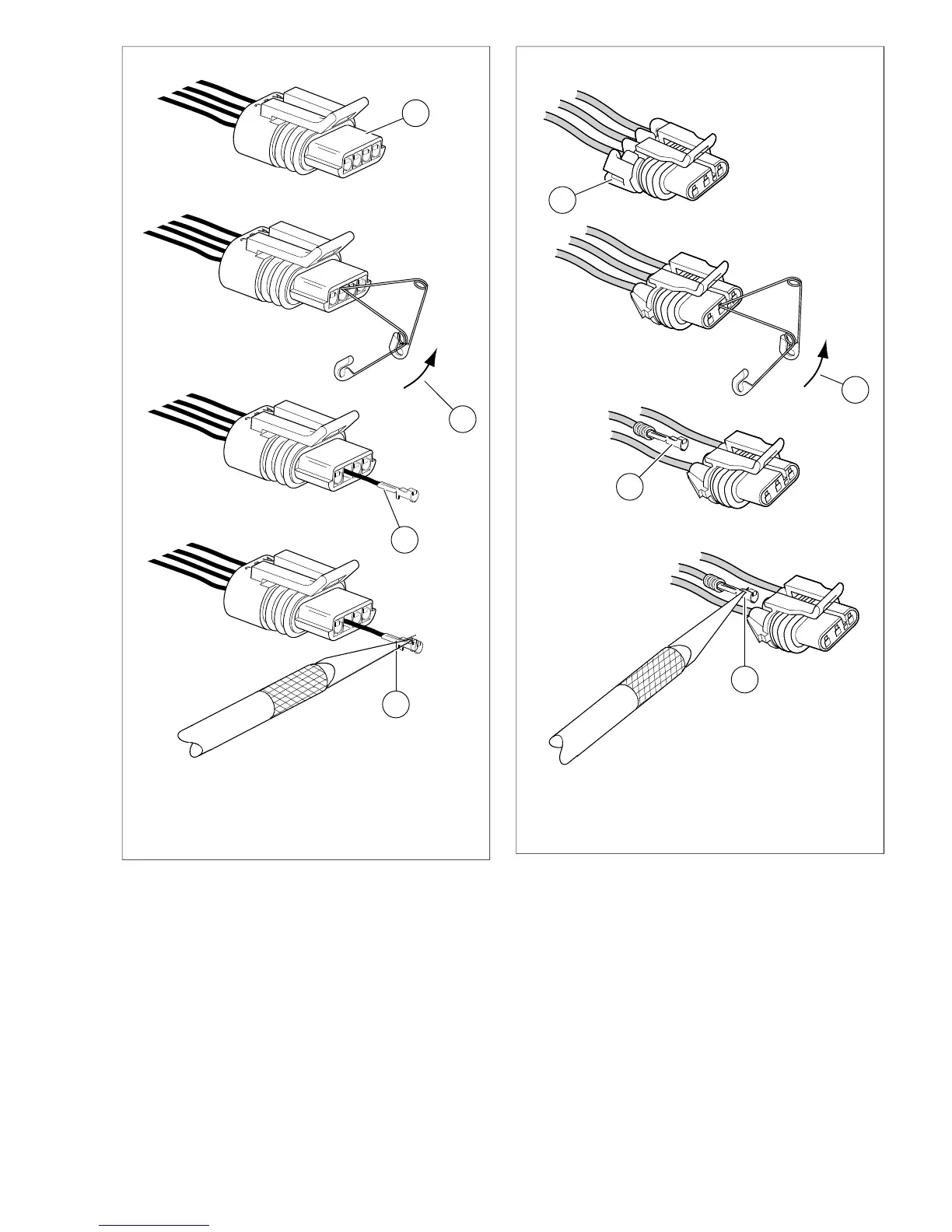

1. Locate tang in chamber
2. Pivot pin to depress tang
3. Push to remove
4. Raise tang to install
Figure A-39. 150 Metri-Pack Connector: Pull-to-Seat
3
4
2
1
sm00028
1. Remove wire lock
2. Pivot pin to depress tang
3. Pull to remove
4. Raise tang to install
Figure A-40. 150 Metri-Pack Connector: Push-to-Seat
2008 Dyna Service: Appendix A Connector Repair A-25
