1.23HEADLAMP ALIGNMENT
INSPECTION
The automatic-on headlamp feature provides increased
visibility of the rider to other motorists. Be sure headlamp
is on at all times. Poor visibility of rider to other motorists
can result in death or serious injury. (00030b)
Check headlamp for proper height and lateral alignment:
• When the new owner takes delivery of the motorcycle.
• When there is a change in load (adding luggage, etc.)
1. Verify correct front and rear tire pressure. See 1.8 TIRES
AND WHEELS.
2. Place motorcycle on level floor (or pavement) in an area
with minimum light.

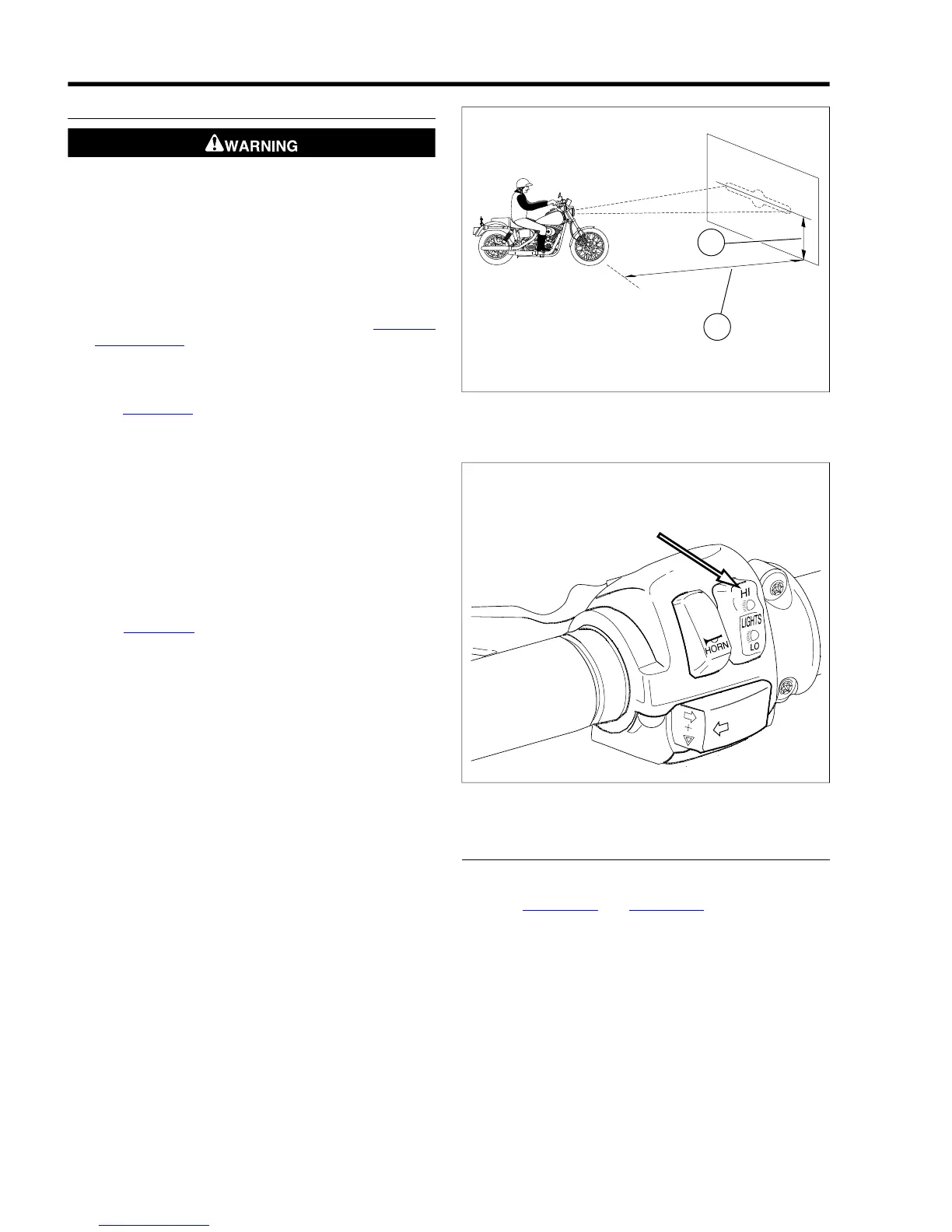

3. See Figure 1-46. Position motorcycle 25 ft (7.6 m) away
from a screen or wall. Measure the distance from directly
below the front axle to the base of the screen/wall.
4. Draw a horizontal line 35 in. (0.9 m) above floor on
screen/wall.
5. Load vehicle with rider, passenger (if normally present)
and any cargo. Weight will compress vehicle suspension
slightly.
6. Stand motorcycle upright with both tires resting on floor
and with front wheel held in straight alignment (directly
forward).
7. See Figure 1-47. Turn ignition switch ON. Set handlebar
headlamp switch to HIGH beam position.
8. Check light beam for alignment.
a. The main beam, which is a broad, flat pattern of light,
should be centered equally above and below the
horizontal line.
b. The main beam of light should also be directed
straight ahead. Properly adjusted headlamps project
an equal area of light to right and left of center.
c. Adjust headlamp alignment if necessary.
Figure 1-47. Headlamp Switch High Beam Setting
ADJUSTMENT
All Models
1. See Figure 1-48 or Figure 1-49. Loosen horizontal
adjusting bolt (2) to adjust headlamp beam side to side.
Tighten bolt to 25-30 ft-lbs (33.9-40.7 Nm).
2. Loosen nut on vertical adjusting nut (1) to adjust headlamp
beam up or down. Tighten nut to 25-30 ft-lbs (33.9-40.7
Nm).
1-44 2008 Dyna Service: Maintenance
