Harley-Davidson Dyna 2008 - Page 88

sm02263

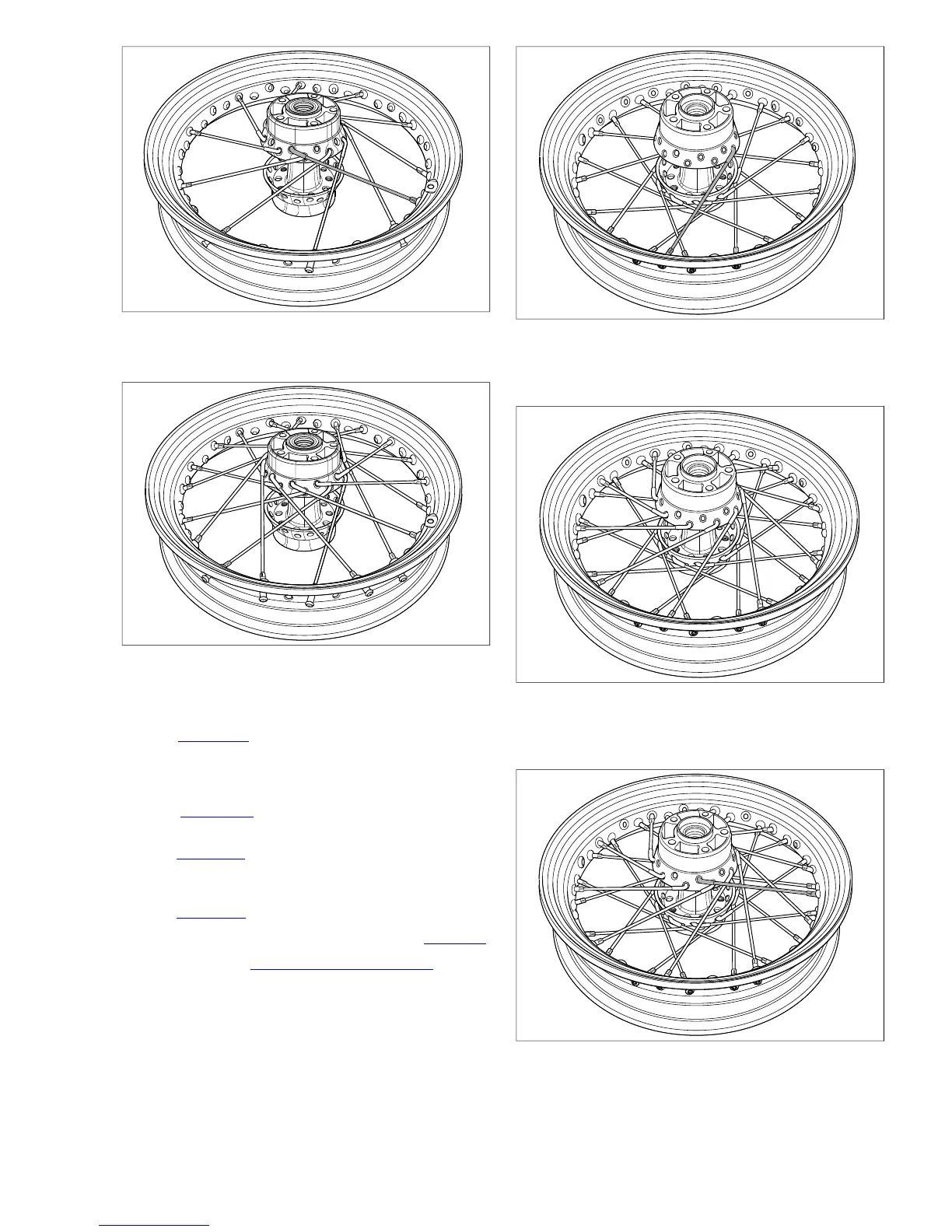

Figure 2-24. Brake Side Up: Start First Spoke of Top Row
sm02264
Figure 2-25. Brake Side Up:Top Row of Spokes Laced
Hub: Sprocket Side Up
1. See Figure 2-26. Turn hub and rim over so the sprocket
side (wide flange) faces up. Place any lower row spoke
into hub. Angle spoke clockwise and place into rim hole
angled to accept it.
2. See Figure 2-27. Place the remaining nine lower row
spokes, angled clockwise, into hub and rim.
3. See Figure 2-28. Insert any upper row spoke into hub and
angle spoke counterclockwise. Place spoke into appro-
priate rim hole.
4. See Figure 2-29. Install remaining nine upper row spokes.
5. Tighten spoke nipples to specification listed in Table 2-10.
6. True wheel. See 2.9 TRUING LACED WHEELS.
sm02265
Figure 2-26. Sprocket Side Up: Start First Spoke of Bottom
Row
sm02266
Figure 2-27. Sprocket Side Up: Bottom Row of Spokes
Laced
sm02267
Figure 2-28. Sprocket Side Up: Start First Spoke of Top
Row
2008 Dyna Service: Chassis 2-17
