1. Steel rim
2. Chrome aluminum profile rim

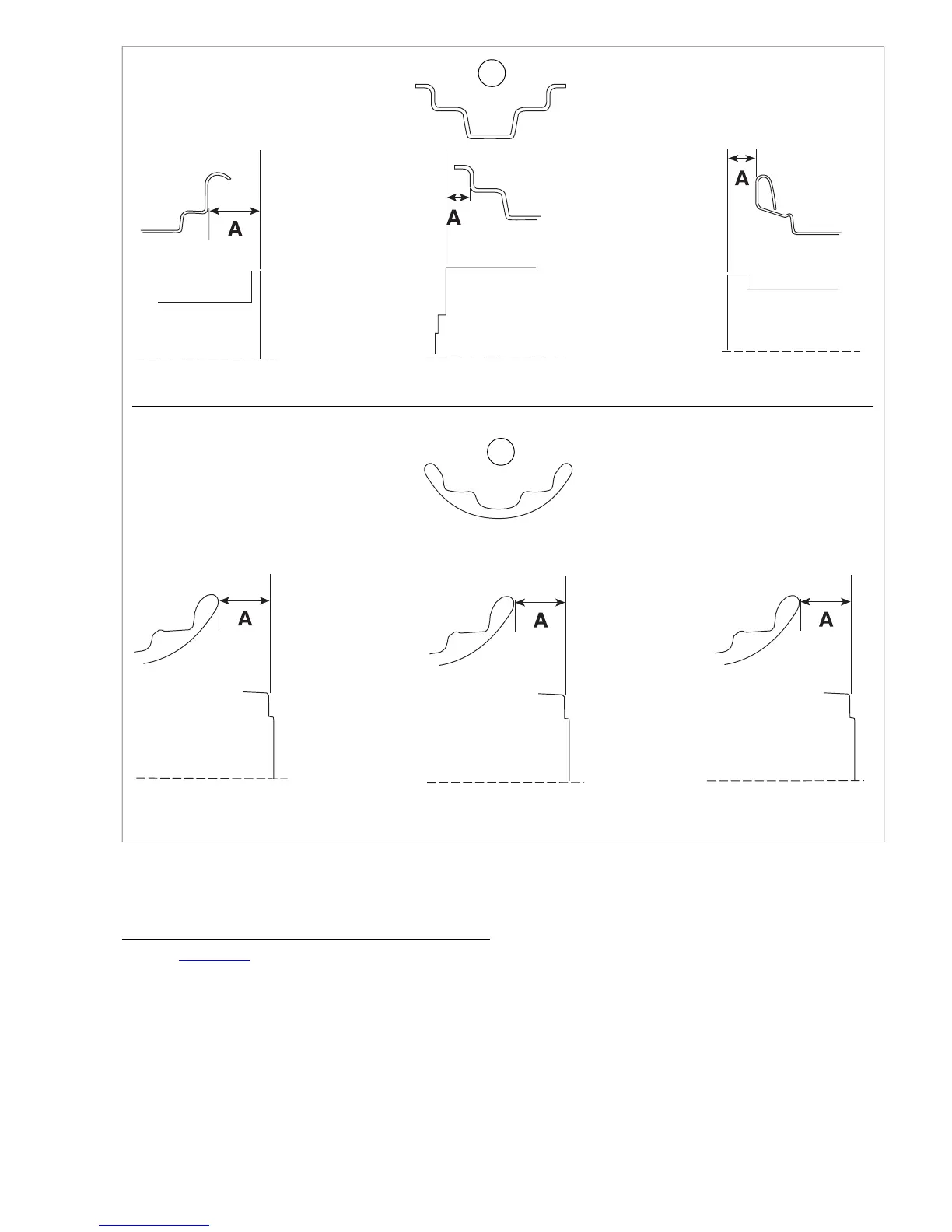

Figure 2-53. Laced Wheel Hub Offset Dimensions
RADIAL TRUING
1. See Figure 2-54. Adjust truing stand gauge to the rim's
tire bead seat as shown.The rim should be trued within
0.030 in. (0.76 mm).
2. Spin the rim slowly.
a. If the rim contacts the gauge on or near a marked
group of spokes, loosen the spokes in the marked
group on the opposite side of the rim. Now tighten
the spokes in the group where the rim makes contact.
Loosen and tighten spokes an equal number of turns.
b. If the rim contacts the gauge between two marked
groups, loosen the spokes in both opposite groups
and tighten the spoke groups on the side of the rim
that makes contact.
