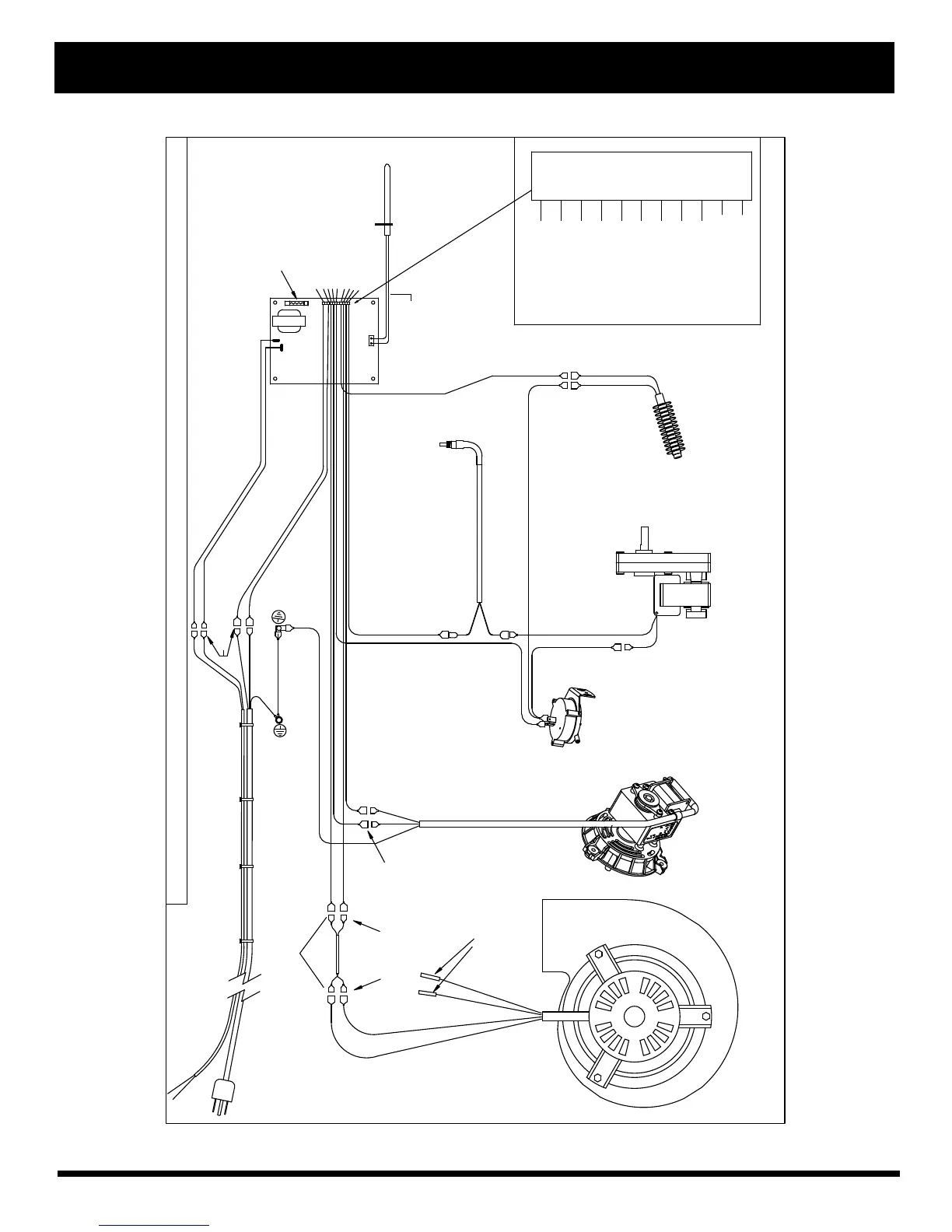

Harman Home Heating Accentra Insert - Accentra Insert Wiring Diagram



HOPPER LID SWITCH
HARMAN - ACCENTRA INSERT PELLET STOVE # 1-90-00674
120 VOLTS A.C. 60 HZ.
SKY BLUE
DISTRIBUTION BLOWER
MAX. WATTS 640 -- 5.4 A. --
COMBUSTION MOTOR
FEEDER MOTOR
HARNESS THROUGH BODY
CONNECTION NOT COLOR SPECIFIC
BLACK
BLACK
( NOT USED ) Med & Low Windings
MALE/FEMALE CONNECTIONS
for external location
BLUE
RED
WHITE
BLACK
18/3 10 Amp POWER CORD
ROOM SENSOR Wire
WHITE
N.O. CONTACTS LOW PRESSURE SWITCH
BLUE
WHITE
WHITE
GREEN
RED
SKY BLUE
N.O. CONTACTS
BONDED TO STOVE BODY
WHITE
BLACK
MALE/FEMALE CONNECTIONS
GREEN WIRE IS GROUND
WHITE
BLACK
GREEN/YELLOW
BROWN
WHITE 11 PIN PLUG
PART NO. 3-90-09321
IGNITER ELEMENT
YELLOW RED BLUE BLACK EMPTY WHITE WHITE
8
10 11 9 6 7 5
BROWN WHITE WHITE PLUGGED
BOARD
TWISTED WIRE
YELLOW
10
9
11
8
3
1
6
5
4
3 4 1 2
ESP PROBE
6 AMP GLASS FUSE
twisted pair wire
ROOM SENSOR Wires
ESP
CONTROL
8” X 5” black on white adhesive. Part Number 3-90-09321 RevE
