Harman Kardon AVR 230 Quick Start Guide

AVR 230 QUICK-START GUIDE

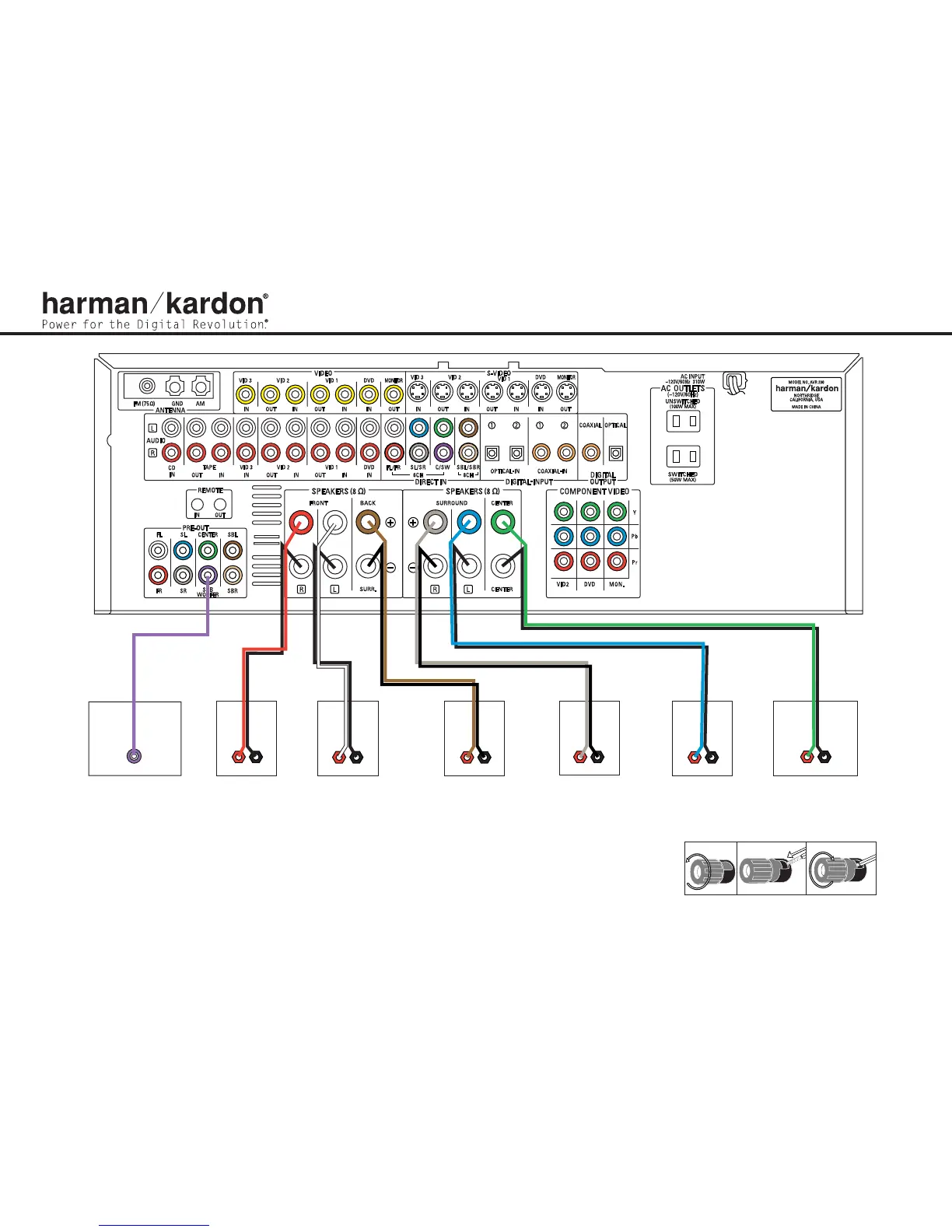

Figure 2 – Speaker Connections
Step 2. Connect the speakers to the receiver:red (+)
on speaker to colored (+) on receiver and
black (–) to black (–). (See page 13.)
Step 3. Connect the Subwoofer Pre-Out jack to
the Line-In jack on your subwoofer (see
page 13).You may adjust the settings on
the subwoofer later as needed.
Figure 3 – How to Use the Binding-Post
Speaker Terminal
SURROUND BACK
SPEAKER
FRONT RIGHT
SPEAKER
FRONT LEFT
SPEAKER
CENTER SPEAKER
SUBWOOFER
LINE IN/SUB/LFE
SURROUND
RIGHT SPEAKER
+
_
+
_
+
_
+
_
SURROUND
LEFT SPEAKER
+
_
+
_

Harman Kardon AVR 230 Specifications

General

Dolby Digital	Yes
DTS	Yes
Input Sensitivity	200mV
Signal-to-Noise Ratio	100dB
Impedance	8 ohms
Type	AV Receiver
Input Impedance	47k ohms
Total Harmonic Distortion	0.07%
Surround Sound Formats	Dolby Digital, DTS, Dolby Pro Logic II
Digital outputs	1 optical
Width	440mm
Height	165mm
Power Output per Channel	50W
Frequency Response	10Hz – 100kHz
Audio D/A Converter	24-bit/192kHz
Digital inputs	3 Optical, 3 Coaxial
Video Inputs	4 Composite
Video Outputs	1 Composite, 1 S-Video
Audio Inputs	6 x RCA
Depth	376mm
Audio Outputs	1 Analog
