DVD PLAYER
VCR (Video 1) TV or Video Monitor
I
n/Rec
O
ut/Play
IN
L
R VIDEO
Video S-Video Component Video
Y
Pb Pr
Component Video
Y Pb Pr
Component Video
Y
Pb
Pr
Optical Coax
Cable or Sat or HDTV Set-Top Box (Video 2)
O
UT
L R Video S-Video
Optical Coax
L R Video S-Video
The Bridge
VIDEO CONNECTIONS
Device Connection Options
: Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 3 inputs are on the front panel of the receiver.
Device Input Name Audio Input Connections Audio Output Connections Video Connections
CD Player CD CD L/R Inputs, Optical Digital 1 or 2, or Coaxial Digital 1 or 2 Not required Not required
DVD Player DVD Coaxial Digital 1 or 2, Optical Digital 1 or 2, or DVD L/R Inputs Not required DVD Component, Composite or S-Video
VCR Video 1 Video 1 L/R Inputs Video 1 L/R Outputs Video 1 Composite or S-Video Input and Output
Cable Box or Satellite Receiver
Video 2
Video
2
L/R Inputs
, Optical Digital 1 or 2, or Coaxial Digital 1 or 2 Inputs* Not required Video
2
Component,
Composite or S-Video
Input
DMP DMP Connector Not required Not required
Audio Recorder Tape Tape L/R Inputs, Optical Digital 1/2** or Coaxial Digital 1/2** Inputs Tape L/R Outputs, Digital Optical** or Coaxial Outputs** Not required
TV or Projector Not applicable Not required Not required Monitor-Out Component, Composite and/or S-Video
The
Bridge
TM
*
Check with your cable company to determine whether digital audio is available for all channels. It may be necessary to make BOTH analog and digital connections if it is not.
**
Digital audio recorders only.
250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com
© 2005 Harman International Industries, Incorporated.All rights reserved. Harman Kardon, Harman International and Power for the Digital Revolution are registered trademarks, and The Bridge and EzSet+ are
trademarks, of Harman International Industries, Incorporated. Dolby and Pro Logic are registered trademarks of Dolby Laboratories. iPod is a registered trademark of Apple Computer, Inc.
Part No. CQE1A259Z

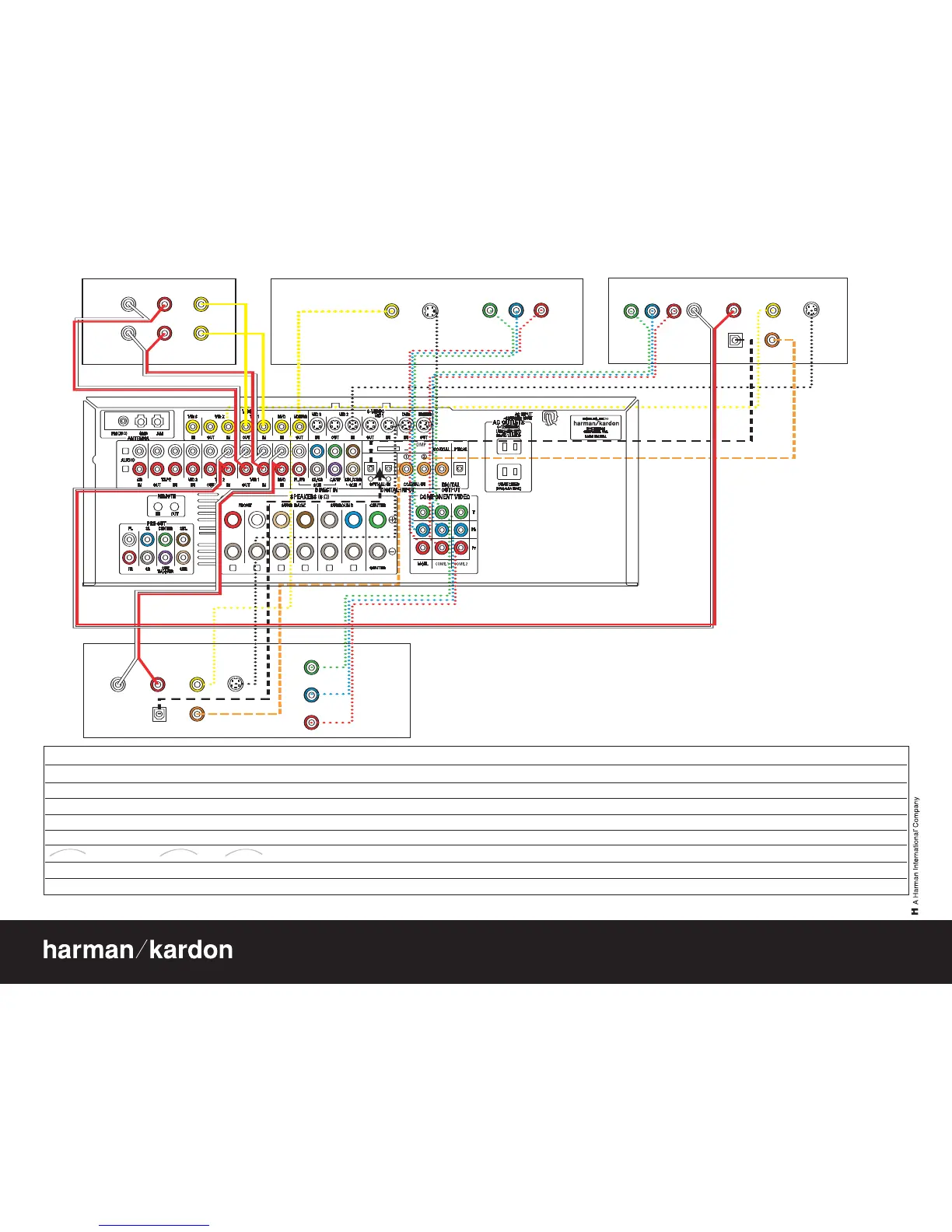

Figure 6 – Video Connections
Dashed lines (–––) indicate coaxial and optical digital audio connections. Choose either type
(but not both) for each digital audio source.
Dotted lines (
••••) indicate component, composite or S-video connections. Component video is
the preferred connection when available, but you may use any of the three types (but not more
than one). When component, composite and S-video sources are connected to the AVR, you must
also connect all outputs from the AVR to your TV.
