Harman Kardon AVR 255 Service Manual

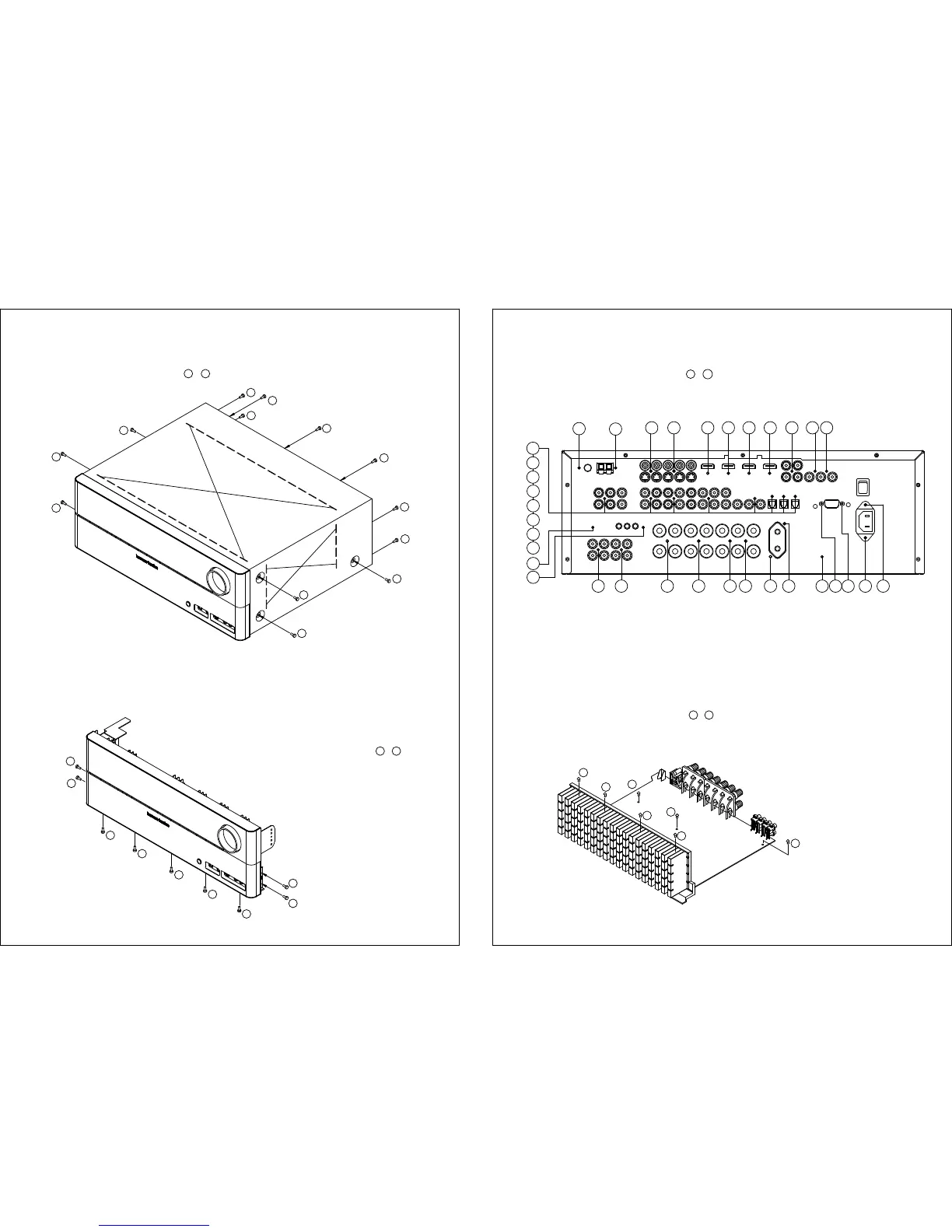

DISASSEMBLY
Remove the Screws
4. Removing the Main PCB
~
1 7
~
1
34
Remove the Screws
3. Removing the Rear Panel
AVR255/230
5
30
15
14
13
23
12
11
10
24 26 27
9 8
3
1
28
29
62
16
17
3332
18
19
0N
OFF
4 7
20
21
22 25 31 34
6
3
4
7
1
2
5
1
1. Removing the Top Cabinet
Remove the Screws
~
13
Remove the Screws
2. Removing the Front Panel
1 9
~
1
2
5
4
6
11
10
7
9
13
3
12
8
7
5
6
8
9
4
3
2
1
harman/kardon
AVR 255/230 Service Manual
Page 7 of 144

Harman Kardon AVR 255 Specifications

General

Impedance	8 Ω
Frequency range	20 - 20000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.07 %
HDMI	Yes
Audio system	Dolby Digital
Dimensions (WxDxH)	440 x 351 x 151 mm
Power requirements	2 x 65 W
HDMI ports quantity	3
Output power description	192 kHz
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	4
Headphone connectivity	-
Product color	Black, Silver

Weight and Dimensions

Weight	13600 g
