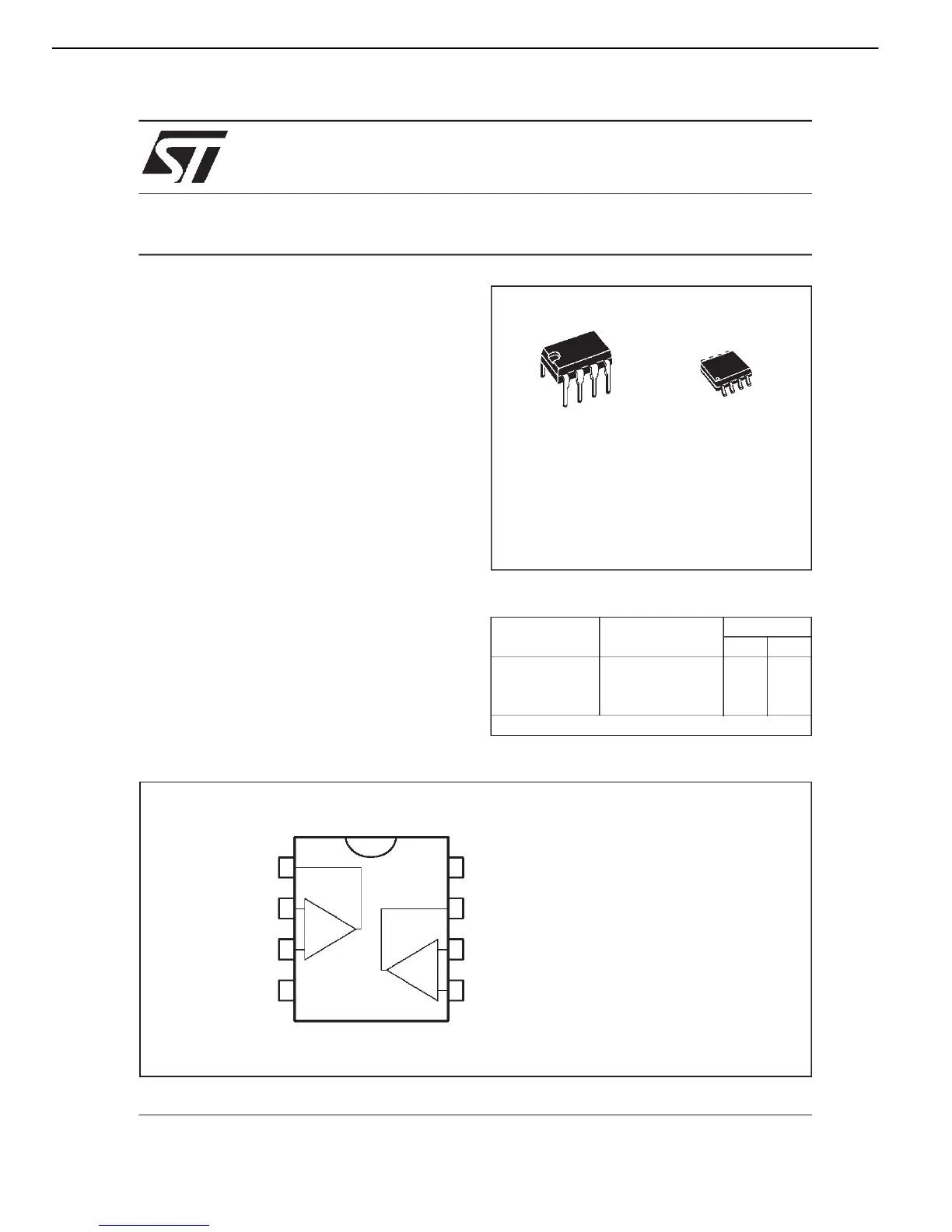

LOW NOISE J-FET DUAL OPERATIONAL AMPLIFIERS

.WIDE COMMON-MODE (UP TO V
CC
+
)AND
DIFFERENTIAL VOLTAGERANGE
.LOW INPUT BIAS AND OFFSET CURRENT
.LOW NOISE e
n
= 15nV/√Hz (typ)
.OUTPUTSHORT-CIRCUIT PROTECTION
.HIGH INPUT IMPEDANCE J–FET INPUT
STAGE
.LOW HARMONIC DISTORTION : 0.01%(typ)
.INTERNAL FREQUENCY COMPENSATION
.LATCH UP FREE OPERATION
.HIGH SLEWRATE : 16V/µs (typ)
N
DIP8
(Plastic Package)
1
2
3
45
6
7
8
-
+
-
+
1 - Output 1
2 - Inverting input 1
3 - Non-inverting input 1
4-V
CC
-
5 - Non-inverting input 2
6 - Inverting input 2
7 - Output 2
8-V
CC
+
PIN CONNECTIONS (top view)
DESCRIPTION
The TL072, TL072A and TL072B are high speed
J–FET input dual operationalamplifiers incorporating
well matched,high voltageJ–FETand bipolartransis-
torsin a monolithic integratedcircuit.
The devicesfeaturehighslewrates,lowinputbiasand
offsetcurrent, and low offset voltagetemperature
coefficient.
TL072
TL072A - TL072B
December 1998
D
SO8
(Plastic Micropackage)
ORDER CODES
Part Number
Temperature
Range
Package
ND
TL072M/AM/BM –55
o
C, +125
o
C ••
TL072I/AI/BI –40
o
C, +105
o
C ••
TL072C/AC/BC 0
o
C, +70
o
C ••
Example : TL072CN
1/9
