SiI9135/9135A HDMI Receiver with Enhanced Audio and Deep Color Outputs
Data Sheet
Introduction
The SiI9135/9135A HDMI Receiver with Enhanced
Audio and Deep Color Outputs is a second-
generation High Definition Multimedia Interface
(HDMI) v1.3 receiver. It is software-compatible with
the SiI9133 receiver, but adds audio support for
DTS-HD and Dolby TrueHD. Digital televisions that
can display 10- or 12-bit color depth can now
provide the highest quality protected digital audio
and video over a single cable. The SiI9135 and
SiI9135A devices, which are functionally identical,
can receive deep color video up to 12-bit, 1080p @
60 Hz. Backward compatibility with the DVI 1.0
specification allows HDMI systems to connect to
existing DVI 1.0 hosts, such as HD set-top boxes and
PCs. The specialized audio and video processing
contained in the receiver can add HDMI capability to
earlier-generation consumer electronics. Efficient
color space conversion receives RGB video data and
delivers either standard-definition or high-definition
YCbCr formats.
Features
• Dual-Input HDMI 1.3a, HDCP 1.3, and DVI 1.0
compliant receiver.
• Integrated Transition Minimized Differential
Signaling
®
(TMDS
®
) core running at 25–225 MHz.
• Flexible support for many different standard- and
high-definition video formats.
• All high-end audio formats supported.
• Integrated HDCP decryption engine for receiving
protected audio and video content includes pre-
programmed keys.
• Software compatible with SiI9033 and SiI9133
receivers, with additional register programming
required for deep color, DTS-HD and Dolby TrueHD
support
• Flexible power management
• 20 mm x 20 mm 144-pin TQFP package with ePad™

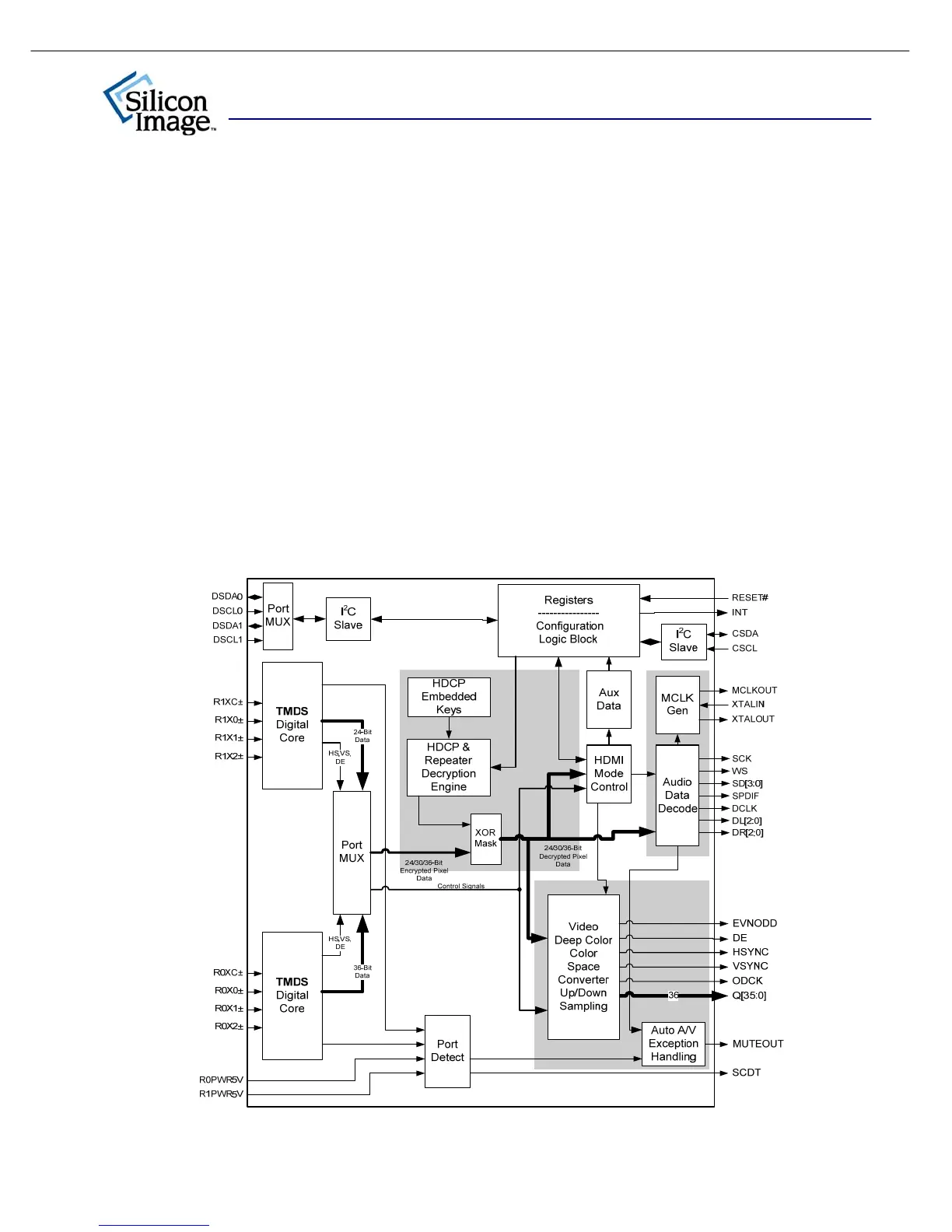

Figure 1. Functional Block Diagram
