Ver.4
NJM2505A
SINGLE ISOLATION AMPLIFIER
■
■■
■ GENERAL DESCRIPTION ■
■■
■ PACKAGE OUTLINE
NJM2505A is the single isolation amplifier developed by the
video signal. It can remove the noise of a signal with isolation amplifier
and carries in the small package (MTP5), it is suitable for the interface
of the video signal of a car AV system.
■
■■
■ FEATURES
● Operating Voltage 4.5 to 9.0V
● Input: Sync-tip Clamp
● Common Mode Noise Rejection Ratio –55dBtyp.
● Voltage Gain 0dBtyp.
● Frequency Characteristics 0dBtyp.at 10MHz
● Bipolar Technology
● Package MTP5
■
■■

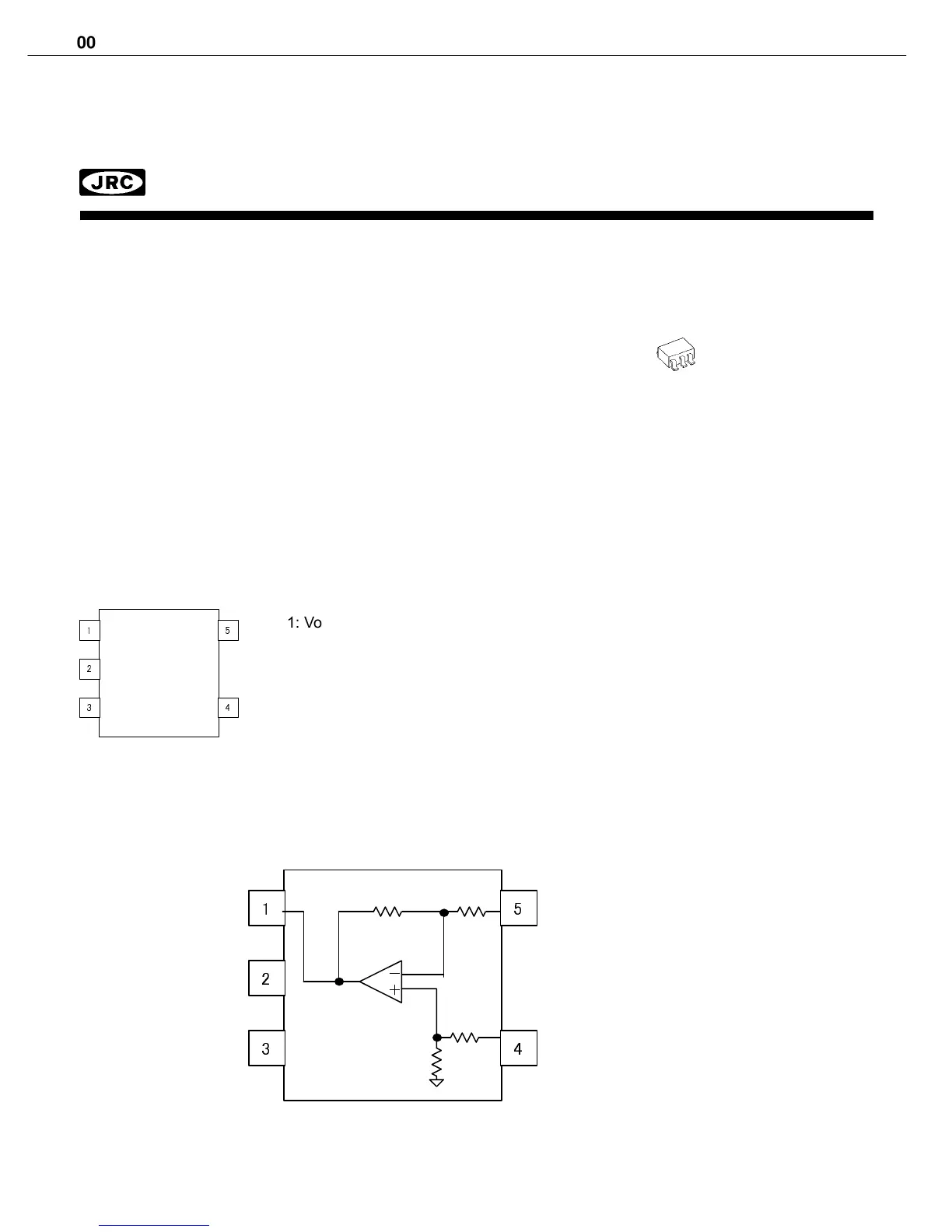

■ PIN CONFIGURATION
■
■■
■ BLOCK DIAGRAM
NJM2505AF
1: Vout
2: GND
3: V+
4: Vin
5: VGND
VGND
V
+
Vin
Vout
GND
