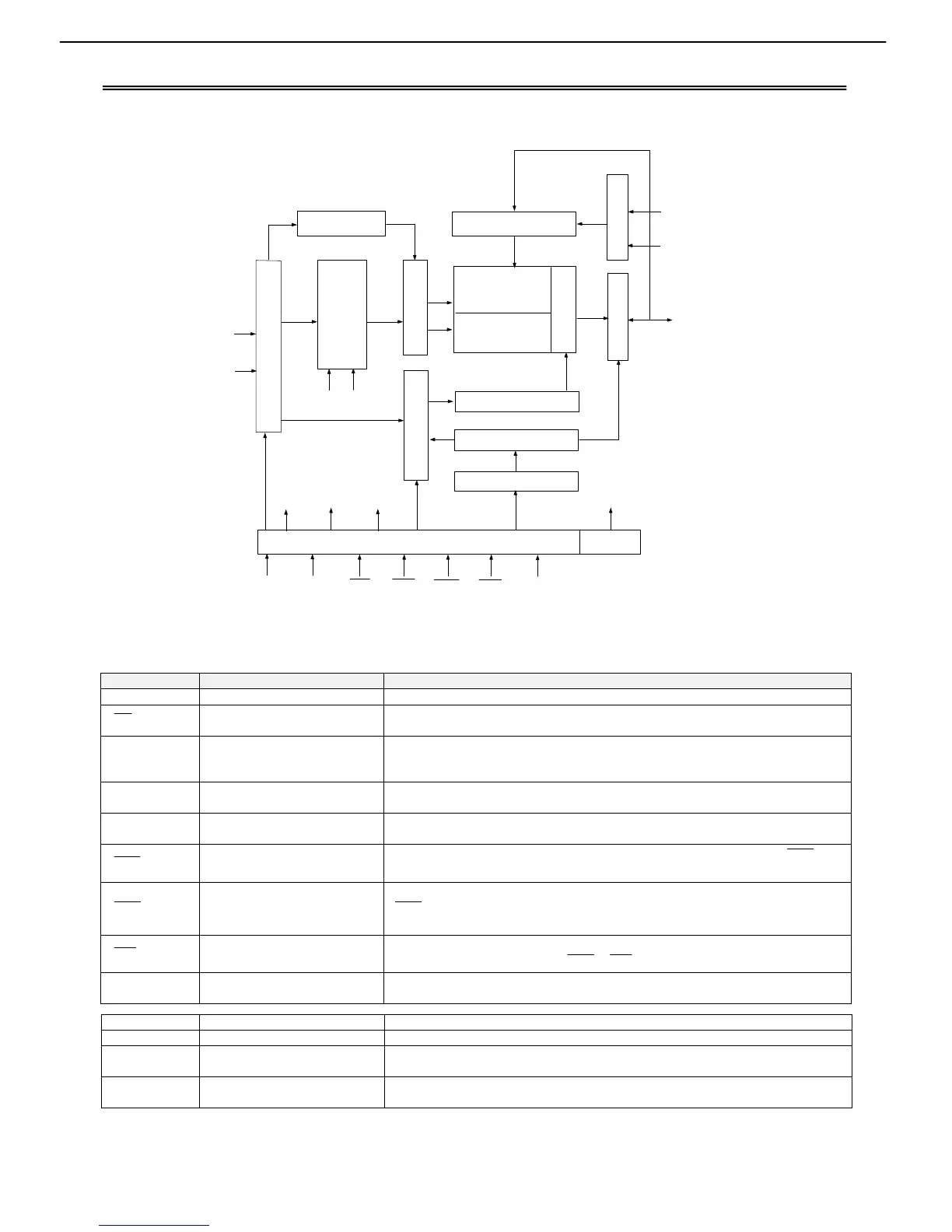

FUNCTIONAL BLOCK DIAGRAM
PIN FUNCTION DESCRIPTION
Pin Name Input Function
CLK
System Clock
Active on the positive going edge to sample all inputs.
CS
Chip Select
Disables or enables device operation by masking or enabling all inputs except
CLK, CKE and L(U)DQM.
CKE
Clock Enable
Masks system clock to freeze operation from the next clock cycle.
CKE should be enabled at least one cycle prior to new command.
Disable input buffers for power down in standby.
A0 ~ A10/AP
Address
Row / column addresses are multiplexed on the same pins.
Row address : RA0 ~ RA10, column address : CA0 ~ CA7
BA
Bank Select Address
Selects bank to be activated during row address latch time.
Selects bank for read/write during column address latch time.
RAS
Row Address Strobe
Latches row addresses on the positive going edge of the CLK with
RAS low.
Enables row access & precharge.
CAS
Column Address Strobe
Latches column addresses on the positive going edge of the CLK with
CAS low.
Enables column access.
WE
Write Enable
Enables write operation and row precharge.
Latches data in starting from CAS , WE active.
L(U)DQM
Data Input / Output Mask
Makes data output Hi-Z, tSHZ after the clock and masks the output.
Blocks data input when L(U)DQM active.
Bank Select
Data Input Register
Column Decoder
Latency & Burst Length
Programming Register
512K x 16
512K x 16
Timing Register
CLK
CKE
CS
RAS CAS WE
L(U)DQM
LDQM
LWCBR
DQi
LDQM
LWE
LRAS LCBR
LWE
LCAS
CLK
ADD
LCKE
Address Register
Row Buffer
Refresh Counter
Row Decoder
Sense AMP
Col. Buffer
LRAS
LCBR
I/O Control
Output Buffer
DQ0 ~ 15
Data Input / Output
Data inputs/outputs are multiplexed on the same pins.
VDD/VSS
Power Supply/Ground
Power and ground for the input buffers and the core logic.
VDDQ/VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffers to provide improved
noise immunity.
N.C/RFU
No Connection/
Reserved for Future Use
This pin is recommended to be left No Connection on the device.
ESMT M12L16161A
Elite Semiconductor Memory Technology Inc. Publication Date : May. 2005
