Harman Kardon AVR 2700 Service Manual

SAFETY PRECAUTIONS
The following check should be performed for the continued
protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
between the earth ground and all exposed metal parts of the
appliance (input/output terminals, screwheads, metal
overlays, control shaft, etc.). Plug the AC line cord of the
appliance directly into a 120V AC 60Hz outlet and turn the
AC power switch on. Any current measured must not exceed
o.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A
POTENTIAL SHOCK HAZARD AND MUST BE
CORRECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)

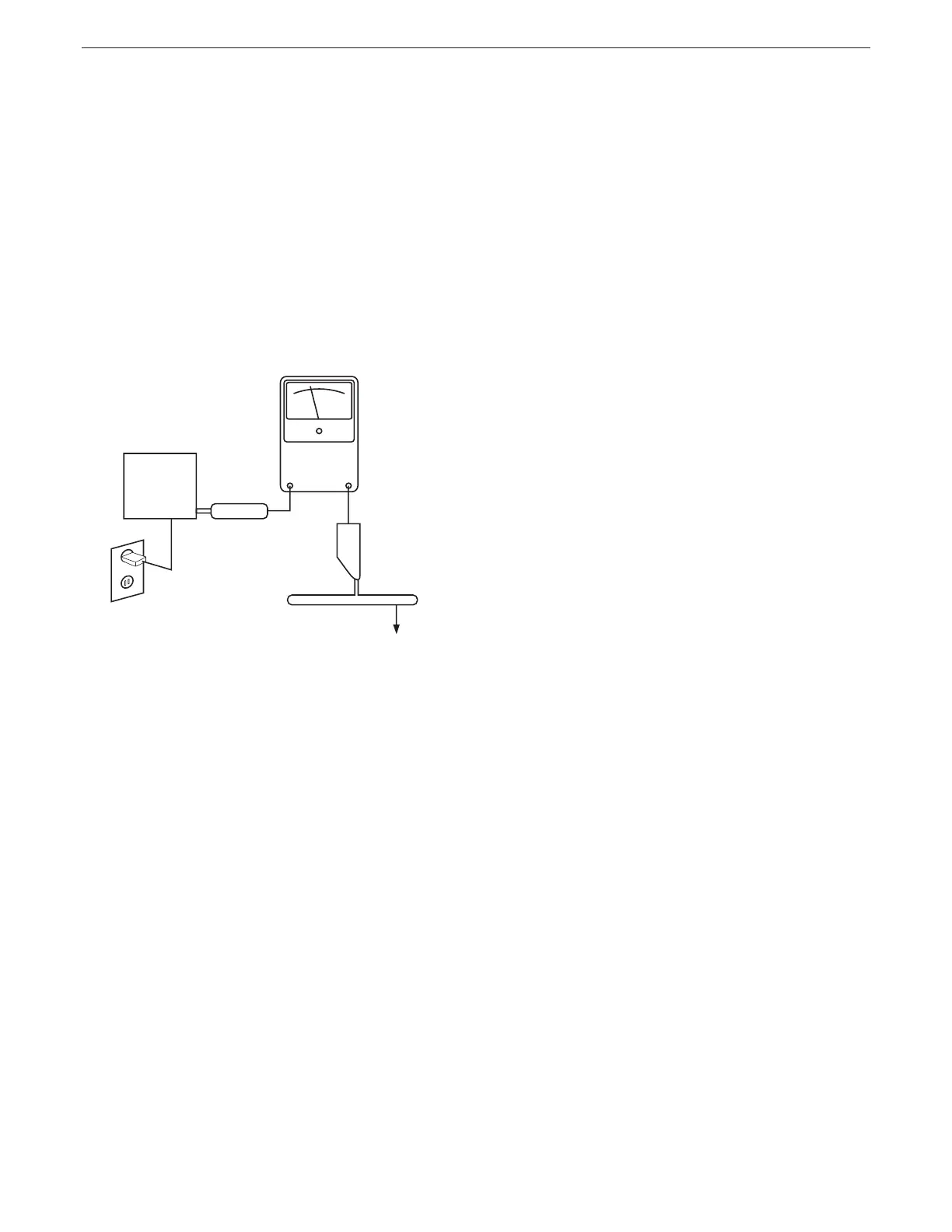

AC Leakage Test
Leakage
current
tester
Reading should
not be above
0.5mA
Earth
ground
AVR 2700 harman/kardon
3

Harman Kardon AVR 2700 Specifications

Audio Section

stereo mode continuous average power	100 watts/ch, 20Hz – 20kHz, <0.07% THD, both channels driven @ 8 ohms, 6-ohm certified
multichannel power	100 watts/ch, 20Hz – 20kHz, <0.07% THD, two channels driven @ 8 ohms, 6-ohm certified
bandwidth @ 1W (+0dB/–3dB)	10Hz – 130kHz
input sensitivity/impedance (line-in)	200mV/47k ohms
signal-to-noise ratio (IHF-A)	100dB
high instantaneous current capability (HCC)	±35 amps
slew rate	40V/μsec

FM Tuner Section

frequency range	87.5MHz–108.0MHz
usable sensitivity (IHF)	1.3μV/13.2dBf
signal-to-noise ratio (mono/stereo)	70dB/68dB
distortion (mono/stereo)	0.2%/0.3%
stereo separation	40dB @ 1kHz
selectivity (±400kHz)	70dB
image rejection	80dB
IF rejection	90dB

AM Tuner Section

frequency range	520kHz – 1, 720kHz
signal-to-noise ratio	45dB
usable sensitivity (loop)	500μV
distortion (1kHz)	50%, mod 0.8%
selectivity (±10kHz)	30dB

Video Section

television format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response (composite video)	10Hz – 8MHz (–3dB)

General

power requirement	AC 120V/60Hz
power consumption	120W idle; 1405W maximum
dimensions (W x H x D)	17-5/16" x 6-1/2" x 15" (440mm x 165mm x 382mm)
weight	7.7kg (16.9 lb)
