VIDEO CONNECTIONS
Device Connection Options: Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 4, Coax 4 and Optical 4 inputs are on the front panel of the receiver.
Device Input Name Audio Input Connections Audio Output Connections Video Connections
CD Player CD CD L/R Inputs, Optical Digital 1, 2 or 3, or Coaxial Digital 1, 2 or 3 Not required Not required
DVD Player DVD Coaxial Digital 1, 2 or 3, Optical Digital 1, 2 or 3, or DVD L/R Inputs Not required DVD Component, Composite or S-Video
VCR Video 1 Video 1 L/R Inputs Video 1 L/R Outputs Video 1 Composite or S-Video Input and Output
Cable Box or Satellite Receiver Video 2 Video 2 L/R Inputs, Optical Digital 1, 2 or 3*, or Coaxial Digital 1, 2 or 3* Inputs Not required Video 2 Composite or S-Video Input
Audio Recorder Tape Tape L/R Inputs, Optical Digital 1, 2 or 3** or Coaxial Digital 1, 2 or 3** Inputs Tape L/R Outputs, Digital Optical** or Coaxial Outputs** Not required
TV or Projector Not applicable Not required Not required Monitor-Out Component, Composite and/or S-Video
*
Check with your cable company to deter
mine whether digital audio is available for all channels
.
It may be necessar
y to make BOTH analog and digital connections if it is not.
**
Digital audio recorders only
.
250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com © 2004 Harman International Industries, Incorporated Part No. CQE1A229Z

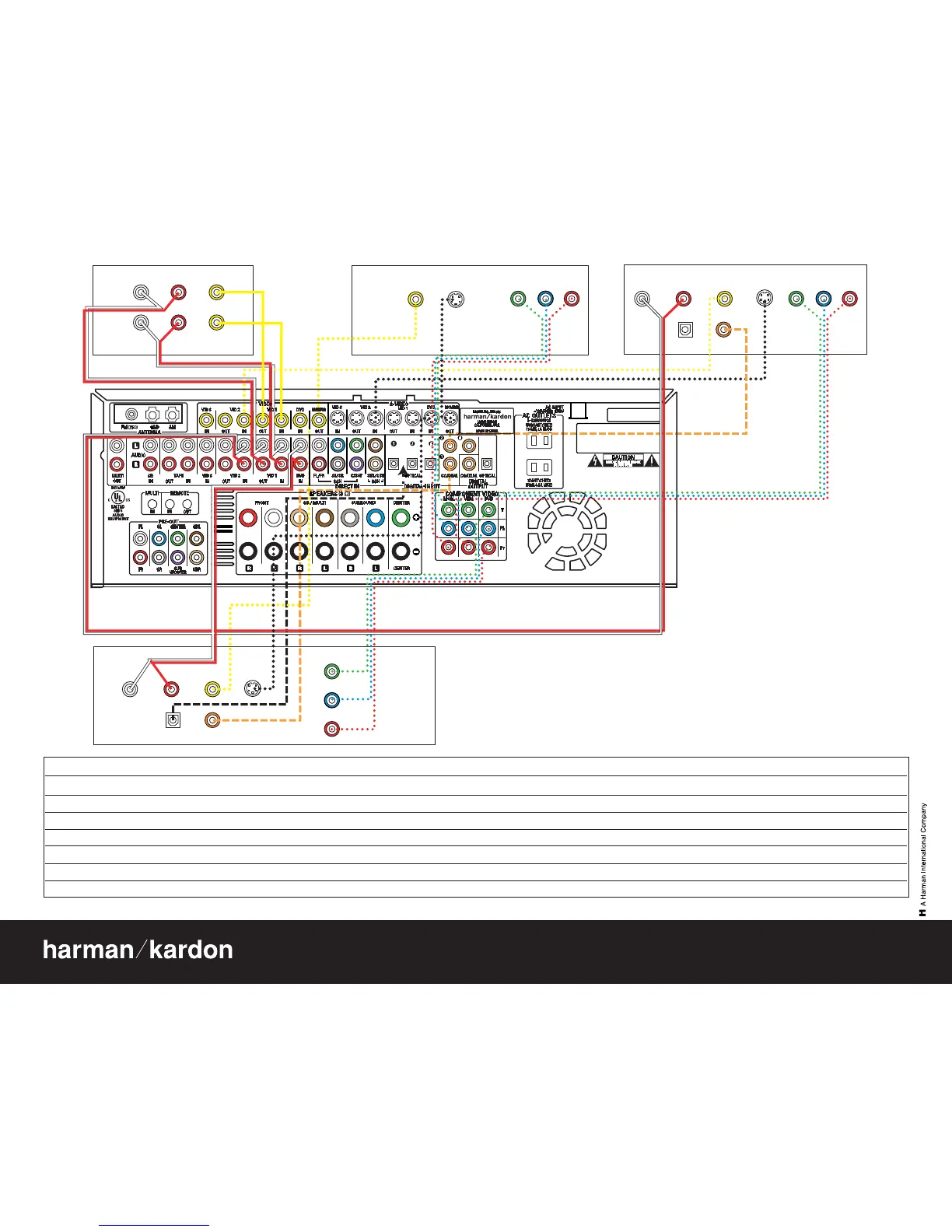

Figure 6 – Video Connections
Dashed lines (––––) indicate coax and optical digital audio connections. Choose either type (but not both)
for each digital audio source.
Dotted lines (••••) indicate component, composite or S-video connections. Component video is the preferred
connection when available, but you may use any of the three types (but not more than one). When component,
composite and S-video sources are connected to the AVR you must also connect all outputs from the AVR to
your TV.
