ASAHI KASEI AKM CONFIDENTIAL [AK5381]
Rev.0.4 2002/08
- 2 -
Ordering Guide
AK5381VT −40 ∼ +85°C 16pin TSSOP (0.65mm pitch)
AKD5381 Evaluation Board for AK5381

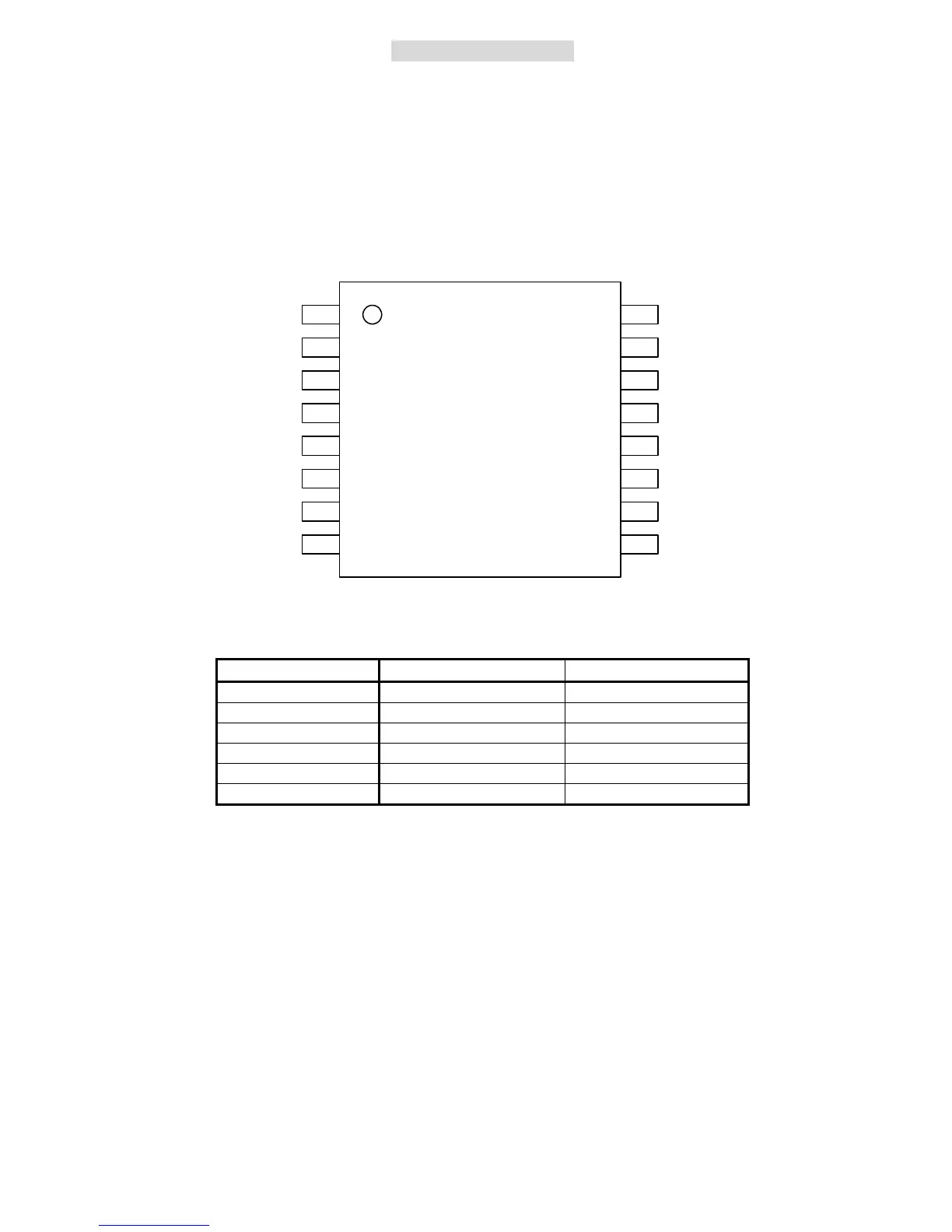

Pin Layout
CKS1
VCOM
VD
DGND
AINR
AINL
AGND
VA
Top View
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
16
DIF
PDN
LRCK
MCLK
SCLK
CKS2
CKS0
SDTO
Compatibility with AK5380
AK5380 AK5381
Master Mode Not Available Available
HPF OFF Not Available Available
VD (Digital Supply) 4.5 to 5.5V@fs=96kHz 3.0 to 5.5V@fs=96kHz
Pin #3 NC CKS1
Pin #15 TTL CKS2
Pin #16 TST CKS0
