IR Mode

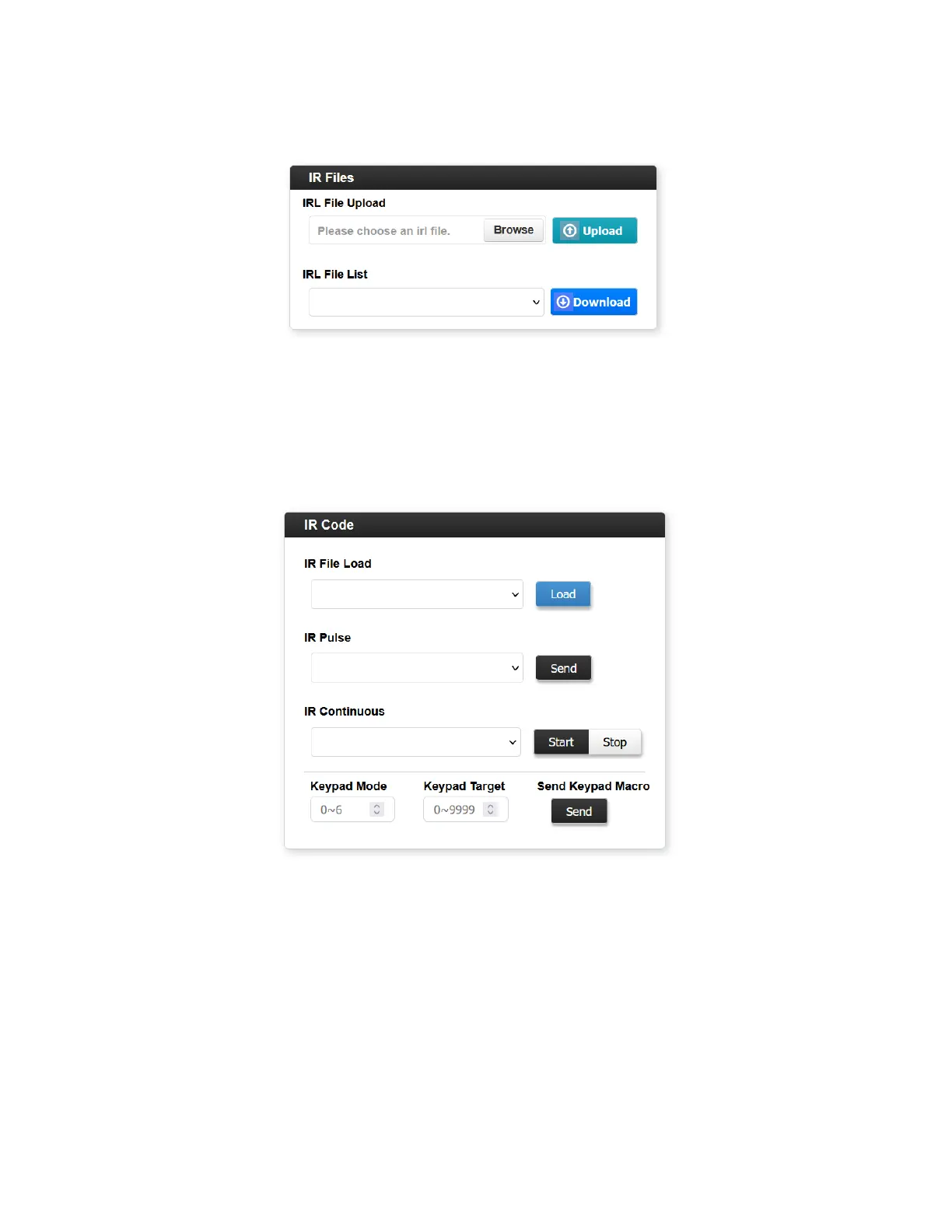

If the port selected is in IR modes, the following dialog boxes will appear: IR Files, IR Code, and IR Setting
In IR Files, you may upload multiple AMX .irl files. These .irl files contain the IR data for each button that has been
captured.
The IR File List allows you to browse all of the loaded .irl files present on this module. You may also back up the .irl file
by selecting the file and pressing the Download button.
The IR Code window has several setting and controls:
• The IR File Load allows you to select the actual .irl file that will be in use from all the .irl files that have been
loaded. This will load all the captured buttons that will be available to this web page and the connected control
system. Only one IR file is active at a time.
• IR Pulse allows you to select from a list of loaded captured IR buttons and send the button for testing that
function. The pulses are queued, so pressing the button repeated will send a pulse for each press. The timing
for the pulse is in the IR Setting window.
• IR Continuous allows you to send an IR code for an arbitrarily long time. The IR code is emitted when Start is
pressed and ceases when Stop is pressed.
• Keypad Mode defines the pattern of IR codes that are queued for the purpose of sending a multidigit number
with an IR Remote.
• Keypad Target is the series of numbers that will be sent when Send is pressed
• Send Keypad Macro will send the sequence of numbers in the pattern specified by Keypad Mode
