5
MAKING CONNECTIONS/APPLYING POWER
To connect the FreqOut pedal to your rig:
1. Turn down the amplifier’s master volume control.
2. Make all audio connections to the FreqOut as shown below.
3. Connect the optional HARMAN power supply to the POWER input connector and connect the
other end to an available AC outlet.
4. Strum your guitar and gradually increase your amplifier’s master volume control until the desired
level is achieved.

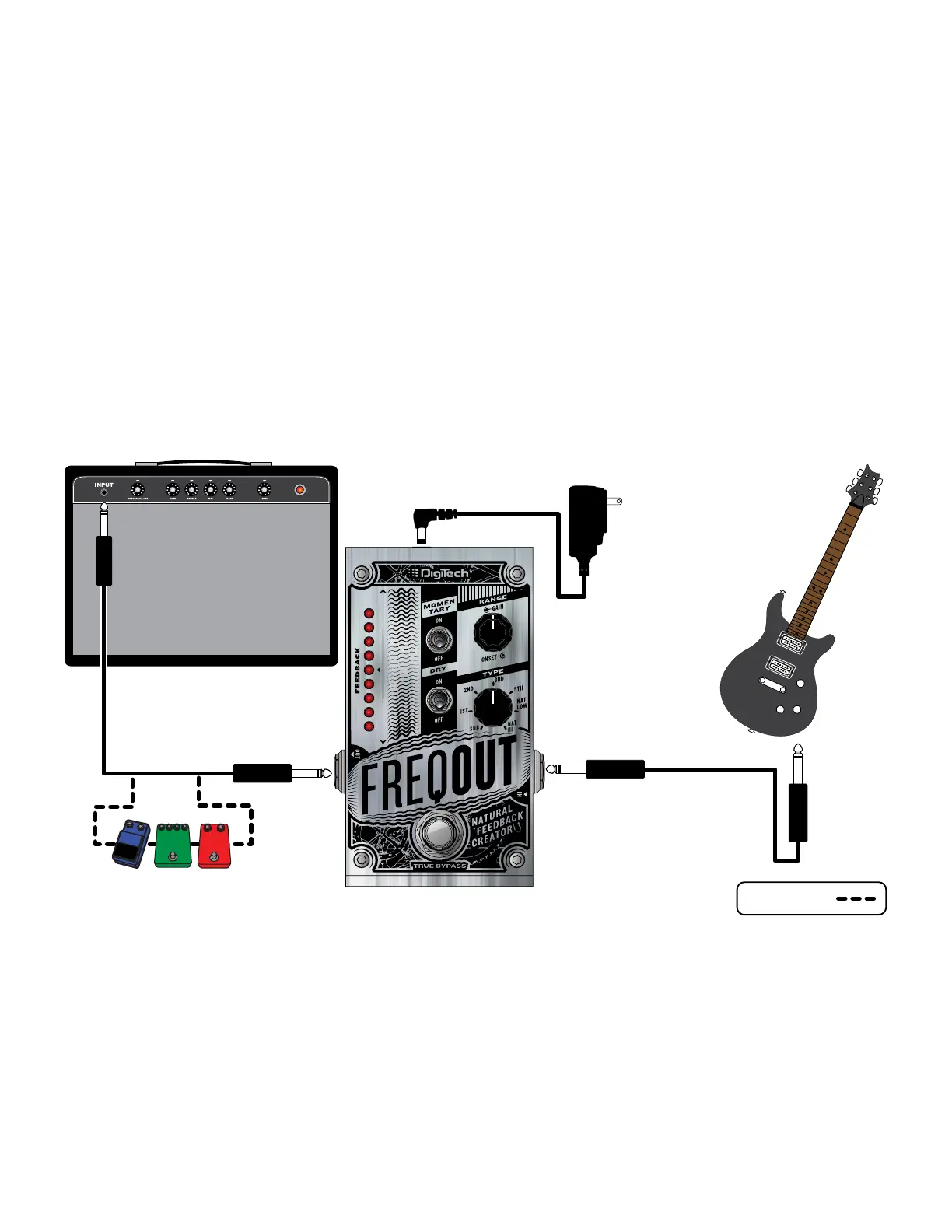

CONNECTION DIAGRAM
POWER SUPPLY
(sold separately)
IN
IN
OUT
OUT
OPTIONAL
OTHER PEDALS
INOUT
Use unbalanced TS instrument cables only.
NOTE: Since the FreqOut pedal is emulating the interaction between your guitar and an amplifier, it is
recommended to place it at the beginning of your effects chain. This will provide a pure guitar signal and
allow the pedal to properly create the feedback harmonics.
